ASSEMBLY INSTRUCTIONS
Titan Square Counter Table
ITEM No.: 51031220
(BOX 1)
Box of Table Top / Leaf/ Top Support/ Stretcher
SKU#
51031220T
(BOX 2)
Box of Table Leg
SKU#
51031220B
DESCRIPTION
QUANTITY
Table Top
1
DESCRIPTION
QUANTITY
Leg
1
(BOX 1)
Table Top / Leaf/ Top Support/ Stretcher Hardware List
SKU#
Z1
Z2
Z3
Z4
Z5
DESCRIPTION
QUANTITY
Bolt: Ø 8 x 40mm
Washer: Ø 8 x 16 x 2mm
4
Sping Washer: Ø 8 x 12 x 2mm
Allen Key: Ø 4mm x 59mm
1
Adjustable Bolt
4

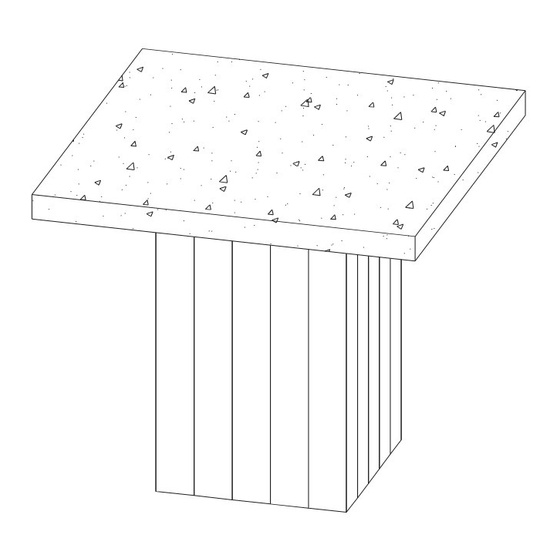

COMPLETED COUNTER TABLE
ASSEMBLY
Page 1 of 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Living Spaces 51031220
Summary of Contents for Living Spaces 51031220
- Page 1 ASSEMBLY INSTRUCTIONS Titan Square Counter Table ITEM No.: 51031220 (BOX 1) (BOX 1) Box of Table Top / Leaf/ Top Support/ Stretcher Table Top / Leaf/ Top Support/ Stretcher Hardware List SKU# IMAGE DESCRIPTION QUANTITY SKU# IMAGE DESCRIPTION QUANTITY Bolt: Ø 8 x 40mm Washer: Ø...
- Page 2 ASSEMBLY INSTRUCTIONS Titan Square Counter Table TOP/BASE ITEM No.: 51031220T/ 51031220B - TOP/BASE STEP 1 STEP 2 51031220B 51031220T THE HARDWARE IS LOCATED IN THE PACKING ITEMS NOTE: MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BE COME LOOSE CHECK TIGHTNESS OF ALL SCREWS EVERY 6-8 WEEKS.
