ASSEMBLY INSTRUCTIONS
Titan Dining Table 82"
ITEM No.: 51030838
(BOX 1)
Box of Table Top
SKU#
51030838T
(BOX 2)
Box of Table Legs
SKU#
51030838B
DESCRIPTION
QUANTITY
Table Top
1
DESCRIPTION
QUANTITY
Leg
2
(BOX 1)
Table Top
SKU#
Z1
Z2
Z3
Z4
Z5
DESCRIPTION
QUANTITY
Bolt: Ø 8 x 40mm
Washer: Ø 8 x 19 x 2mm
12
Sping Washer: Ø 8 x 12 x 2mm
Allen Key: Ø 4mm x 59mm
1
Adjustable Bolt
4

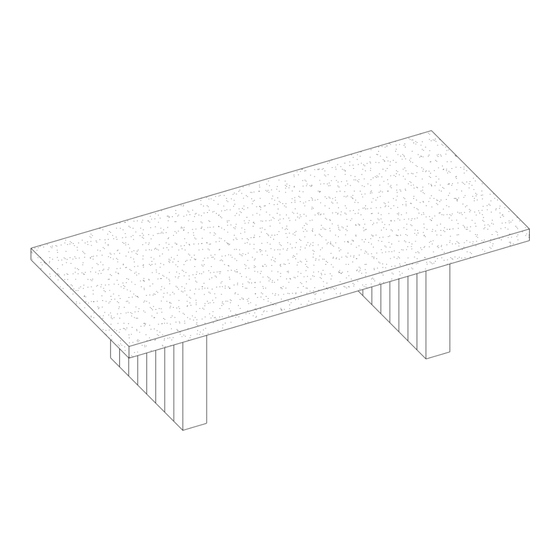

COMPLETED
DINING TABLE ASSEMBLY
Page 1 of 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Living Spaces 51030838
Summary of Contents for Living Spaces 51030838
- Page 1 ASSEMBLY INSTRUCTIONS Titan Dining Table 82" ITEM No.: 51030838 (BOX 1) (BOX 1) Box of Table Top Table Top SKU# IMAGE DESCRIPTION QUANTITY SKU# IMAGE DESCRIPTION QUANTITY Bolt: Ø 8 x 40mm Washer: Ø 8 x 19 x 2mm Sping Washer: Ø 8 x 12 x 2mm...
- Page 2 ASSEMBLY INSTRUCTIONS Titan Dining Table 82" TOP/BASE ITEM No.: 51030838T/ 51030838B - TOP/BASE STEP 1 STEP 2 THE HARDWARE IS LOCATED IN THE PACKING ITEMS NOTE: MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BE COME LOOSE CHECK TIGHTNESS OF ALL SCREWS EVERY 6-8 WEEKS.
