ASSEMBLY INSTRUCTIONS
MODEL : 5260WH-K-HBFB/ 5260WH-KQ-RAIL
BOX 1: BOX OF HEADBOARD/FOOTBOARD
PART LIST
Head Board
Foot Board
A
B
X 1 Piece
X 1 Piece
Slat Support
With Adjuster
E
X 10 Pieces
BOX 2: BOX OF SIDE RAIL
PART LIST
Side Rail
Right & Left
F
X 2 Pieces
BOX 1: BOX OF HEADBOARD/FOOTBOARD
HARDWARE LIST
JCBB M8 x 80 &
Spring & Flat Washer
1
X 16 Pieces
CSK M4 x 28
4
X 10 Pieces
THE HARDWARE IS LOCATED IN THE PACKING ITEMS
Headboard Leg
Right & Left
D
C
X 2 Pieces
JCBB M8 x 50 &
JCBC M6 x 30
Spring & Flat Washer
3
2
X 10 Pieces
X 6 Pieces
M4 Allen Key
M5 Allen Key
5
6
X 1 Piece
X 1 Piece
Slat
X 5 Pieces

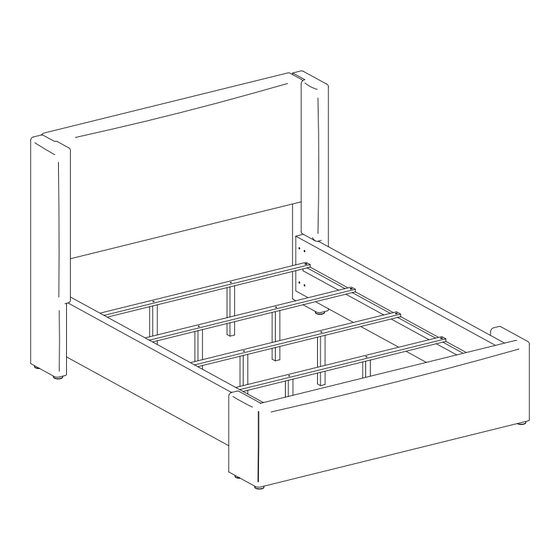

ASSEMBLY
COMPLETED
2 - Persons
Recommended
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Living Spaces 5260WH-K-HBFB
Summary of Contents for Living Spaces 5260WH-K-HBFB
- Page 1 ASSEMBLY INSTRUCTIONS MODEL : 5260WH-K-HBFB/ 5260WH-KQ-RAIL BOX 1: BOX OF HEADBOARD/FOOTBOARD PART LIST 2 - Persons Recommended Headboard Leg Slat Head Board Foot Board Right & Left X 5 Pieces X 1 Piece X 1 Piece X 2 Pieces Slat Support...
- Page 2 STEP 1 STEP 2 Head Board X 6 Pieces X 1 Piece X 16 Pieces X 1 Piece Page 2 of 3...
- Page 3 STEP 3 STEP 4 X 10 Pieces X 1 Piece X 10 Pieces Page 3 of 3...
- Page 4 ASSEMBLY INSTRUCTIONS MODEL : 5260-K-DECK Parts supplied for assembly 2 - Persons Recommended Decking Board X 6 Pieces Hardware supplied for assembly CSK M4 x 20 ASSEMBLY X 30 Pieces COMPLETED Page 1 of 2 THE HARDWARE IS LOCATED IN THE PACKING ITEMS...
- Page 5 STEP 1 Side Rail Stopper Side Rail Stopper X 30 Pieces Page 2 of 2...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1 : Realign the Concealed Panel (A) as shown. DECK-K E.KING BED ITEM Concealed panel 6 pcs ITEM Pab Head Chipboard Screw M3.5 x 20mm STEP 2 : Attach Concealed Panel (A) over the Bed Slat using Panhead Screw (1) and tighten with Screw Driver. ( Not included) COMPLETE ASSEMBLY NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
