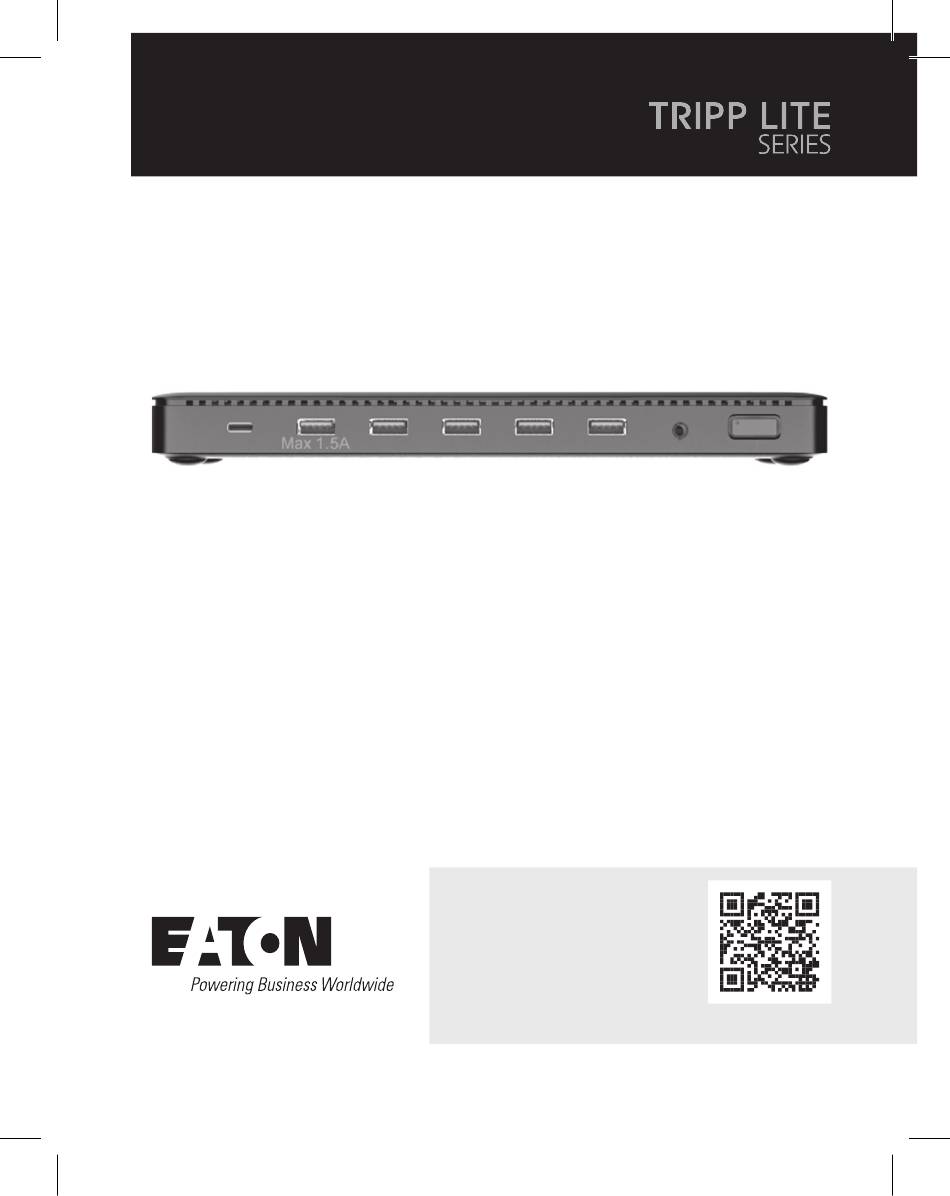

Owner's Manual
USB-C Universal Docking
Station, Dual Display
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
U442-DOCK24DL2A
Purchased product
may differ from image.
PRODUCT
REGISTRATION
Register your product today for a
chance to win an ISOBAR
protector in our monthly drawing!
Tripplite.Eaton.com/warranty
®
surge
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE U442-DOCK24DL2A and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton TRIPP LITE U442-DOCK24DL2A

Summary of Contents for Eaton TRIPP LITE U442-DOCK24DL2A

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...

  • Page 2: Package Includes

    Package Includes • U442-DOCK24DL2A • Owner’s Manual • USB-C Cable with USB-A adapter • External Power Supply (Input 100-240V, 50/60 Hz, 2.5A Max; Output 21V 7.1A, 149.1W) Optional Accessories • P580-Series DisplayPort Cables • P569-Series HDMI Cables • N201-Series Cat6 Patch Cables •...

  • Page 3: Installation

    Installation Notes: • The product can be locked to a desk by fixing the desk through the anti-theft lock hole to prevent users from taking it out of the office. • The function is the same between the K Lock and Standard Nano lock ports. The only difference is the keyholes sizes.

  • Page 4: Operation

    Operation Notes: • This product has a fire-rated enclosure that complies with IEC 62368-1. • The included USB host cable is approved to UL 9990 for safe charging of the host laptop. • While this product has overcurrent protection on all USB ports, it is recommended that the dock not be left unattended when high-powered devices are connected to any of these ports.

  • Page 5: Specifications

    Specifications Input USB-C Female (Connect to Host) Output Video Output 1: DP or HDMI (USB Mode) Video Output 2: DP or HDMI (USB Mode) USB 3.2 Type-C Gen 1 (5 Gbps) x1 USB-A 3.2 Gen 1 (5 Gbps) x5 3.5 mm Audio RJ45 x1 DC Jack x1 USB-C Female (To Host)
  • Page 6 Specifications Video/Network/Audio/Power Max Supported Video HDMI (Single Output): 4K@60 Hz Resolution(s) Displayport (Single Output): 4K@60 Hz HDMI1 + HDMI2 (Dual Output): 4K@60 Hz DisplayPort1 + DisplayPort2 (Dual Output): 4K@60 Hz HDMI1 + DisplayPort1 (Dual Output): 4K@60 Hz Network Speed Support 10/100/1000Mbps (Gigabit) bandwidth Audio Specifications •...

  • Page 7: Warranty And Product Registration

    Visit Tripplite.Eaton.com/warranty today to register your new product. You’ll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
  • Page 8 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2024 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 24-05-007 / 93-4963_RevC All trademarks are property May 2024 of their respective owners.
