Eaton TRIPP-LITE Series Owner's Manual

Usb 3.2 gen 1 usb-c aluminum docking station
Hide thumbs Also See for TRIPP-LITE Series:
Table of Contents

Advertisement

Quick Links

Download this manual

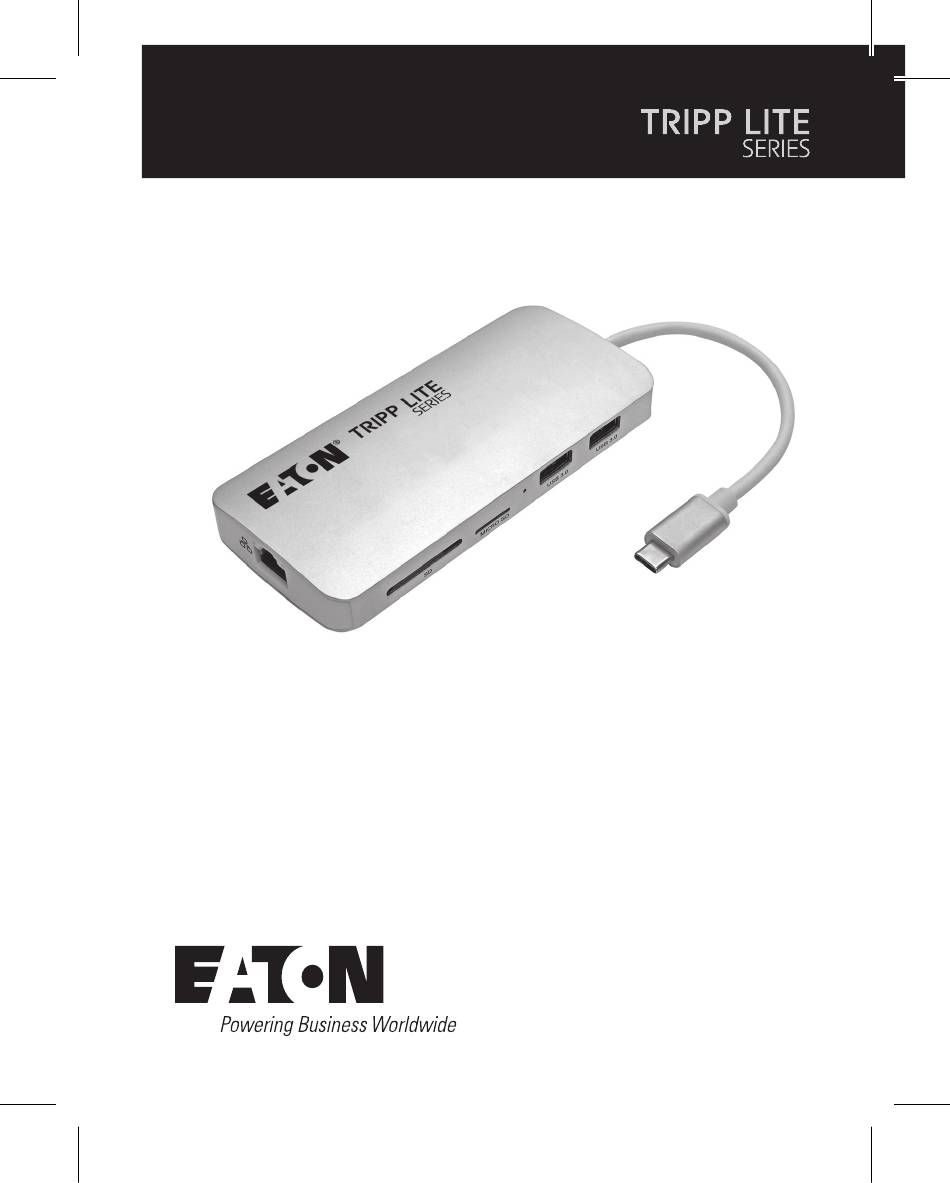

Owner's Manual

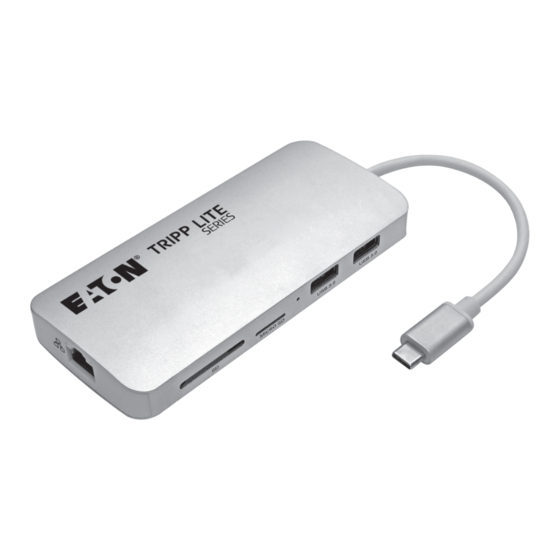

USB 3.2 Gen 1 USB-C Aluminum
Docking Station
PD Charging
Este manual está disponible en español en la página de
Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de
Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-
Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di
Eaton: Tripplite.Eaton.com/support
Model:
U442-DOCK11-S
Purchased product
may differ from image.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP-LITE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton TRIPP-LITE Series

Summary of Contents for Eaton TRIPP-LITE Series

  • Page 1 Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton- Website verfügbar: Tripplite.Eaton.com/support Questo manuale è disponibile in italiano sul sito web di Eaton: Tripplite.Eaton.com/support...

  • Page 2: Package Contents

    Package Contents • U442-DOCK11-S • Owner’s Manual Optional Accessories • N201-Series Cat6 Gigabit Snagless Patch Cables • P566-Series HDMI to DVI Adapter Cables • P569-XXX-CERT* Series High Speed HDMI Cables • U322-Series USB A/B Device Cables • U326-Series USB Micro-B Device Cables •...

  • Page 3: System Requirements

    System Requirements • Computer with USB-C port that supports USB ® DisplayPort Alternate Mode • DVI* or HDMI monitor • Ethernet network with speeds up to 10/100/1000 Mbps *Requires an adapter. See Optional Accessories for more information. USB Type-C and USB-C are registered trademarks of ®...

  • Page 4: Product Features

    Product Features • Supports USB DisplayPort Alternate Mode for connecting an HDMI monitor • Supports connection of a DVI monitor (HDMI to DVI adapter required, sold separately) • HDMI port supports 4K UHD video resolutions up to 3840 x 2160 @ 30 Hz •...
  • Page 5 Product Features • Supports full- and half-duplex operations • Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading • Supports Wake-on-LAN • Plug and play—no software, drivers or external power supply required...

  • Page 6: Product Overview

    Product Overview 1 1 7 7 1 USB-C Connector 5 RJ45 Ethernet with Built-In Cable Network Port 2 USB-A Ports 6 4K HDMI Port 3 Micro SD Memory 7 USB-C Data/ Card Slot Charging Port 4 SD/MMC Memory 8 (Optional) 5V DC Card Slot Power Jack...

  • Page 7: Installation

    Installation Notes: • Both memory card slots can be used at the same time. • When connected to an AC power source by way of the USB-C charging port, 5W is dedicated to the docking station and connected USB peripherals. The remaining power is used to charge the connected USB-C device.
  • Page 8 Installation 1. Connect the built-in USB-C cable to USB-C port on your laptop, tablet or other device. 2. Use an HDMI cable to connect a monitor or display to the unit’s HDMI port. 3. Connect USB peripherals to the unit’s USB-A hub ports.

  • Page 9: Specifications

    Specifications Input Connectors 1x USB-C (Male) DC Port DC Power (Female) Output Connectors USB-A 2x USB-A (Female) USB-C 1x USB-C (Female) HDMI 1x HDMI (Female) Memory Cards 1x Micro SD, 1x SD/MMC Ethernet 1x RJ45 Environmental Operating 32° to 131°F (0° to 55°C) Temperature Operating Humidity 10% to 85% RH, Non-Condensing...

  • Page 10: Warranty

    Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
  • Page 11 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment.
  • Page 12 (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to: • Send old equipment for recycling on a one-for-one, like-for- like basis (this varies depending on the country) •...

This manual is also suitable for:

U442-dock11-s
