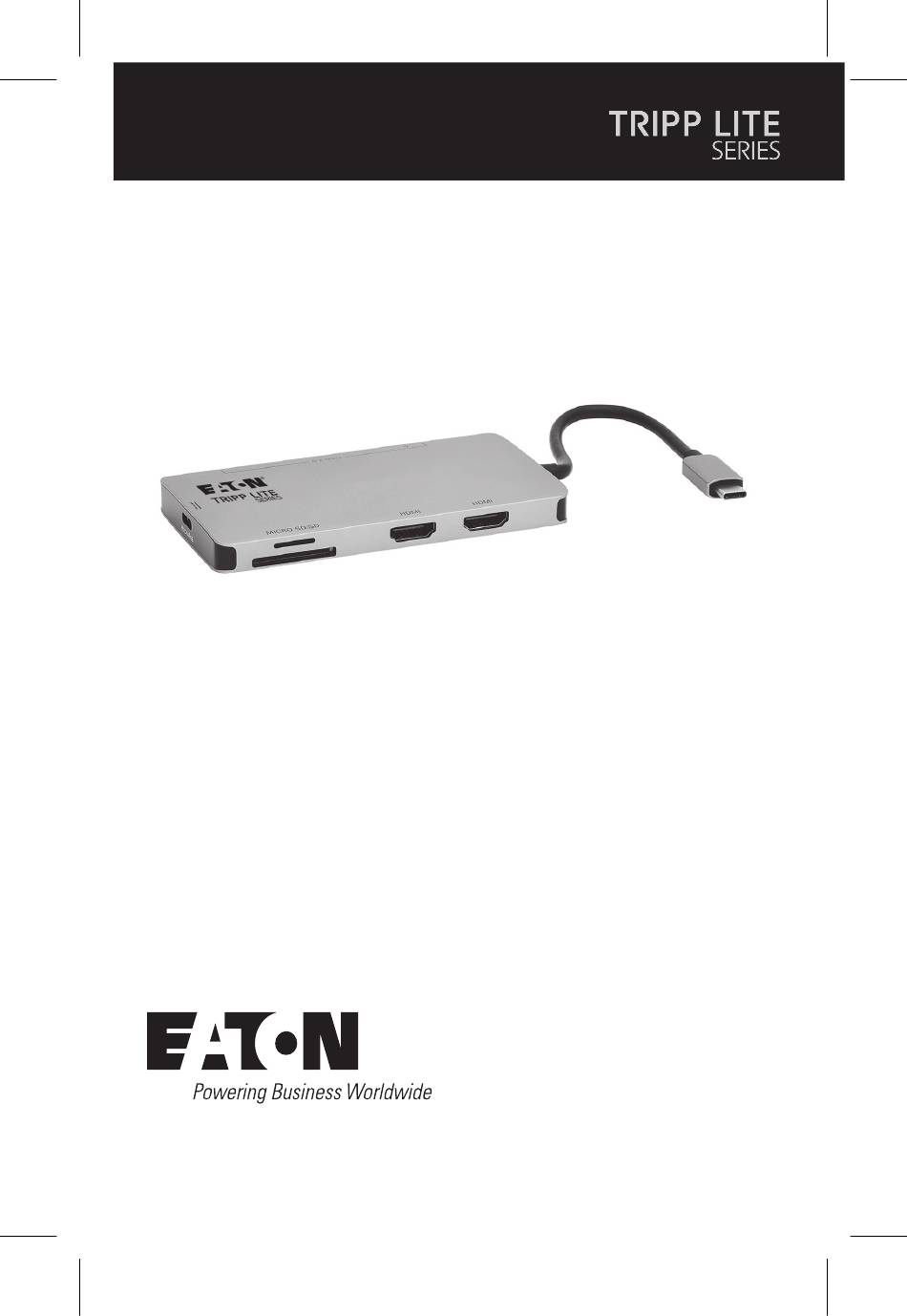

Owner's Manual
Dual-Display USB-C
Docking Stations
Este manual está disponible en español en la página de
Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de
Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der
Eaton-Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di
Eaton: Tripplite.Eaton.com/support
Models:
U442-DOCK8-GG
U442-DOCK8G-GG
Purchased product
may differ from image.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE U442-DOCK8-GG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton TRIPP LITE U442-DOCK8-GG

Summary of Contents for Eaton TRIPP LITE U442-DOCK8-GG

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support Questo manuale è disponibile in italiano sul sito web di...

  • Page 2: Product Features

    Product Features U442-DOCK8-GG and U442-DOCK8G-GG • Supports 4K resolutions up to 3840 x 2160 @ 30 Hz in DisplayPort Multi-Stream Transport (MST) Mode to extend desktop image across 3 displays at the same time • Each HDMI port individually supports 4K resolutions up to 3840 x 2160 @ 60 Hz with 4:4:4 chroma subsampling, 36-bit Deep Color (12 bits per channel) and HDCP 1.4/2.2...

  • Page 3: Package Contents

    Product Features • RJ45 port supports true 10/100/1000 Mbps network speeds when Wi-Fi is weak or unavailable (U442-DOCK8G-GG only) USB-A ports share maximum of 5V 1.6A (8W) for downstream charging ** First 15W dedicated to USB ports; remaining 85W is passed to charge the host device Package Contents •...

  • Page 4: Installation

    Installation HDMI Display 1 HDMI Display 2 Ethernet 1 x 4K/60 Hz Router USB Devices 2 x 4K/30 Hz under MST Type-C Micro SD Card PD Adapter SD Card Type-C Host PC Note: When connecting to a DP 1.4 Alt Mode supported host, the max resolution of the HDMI ports is 4K/60 Hz (Dual: 4K/30 Hz).
  • Page 5 Installation 1. Connect the built-in USB-C cable to your source device’s USB-C or Thunderbolt 3 port. Notes: • To transfer both video/audio and data signals, source must support DisplayPort Alt Mode. • Multi-Stream Transport (MST) is required to achieve extended dual displays. Displays will be mirrored under Single-Stream Transport (SST).

  • Page 6: Specifications

    Specifications Model U442-DOCK8-GG U442-DOCK8G-GG Input USB-C (Male) USB-C (Male) Connector Output (x2) HDMI (Female) (x2) HDMI (Female) Connectors USB-C (Female) USB-C (Female) (x3) USB-A 3.2 Gen 1 (Female) (x2) USB-A 3.2 Gen 1 (Female) Micro SD (Female) Micro SD (Female) SD (Female) SD (Female) RJ45 (Female)

  • Page 7: Warranty

    Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
  • Page 8 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2023 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 23-08-095 / All trademarks are 93-3CF9_RevD property of their August 2023 respective owners.
