Installing a condensate trap in boilers produced after July 2019

Models: SL 10-85 G3, SL 14-115 G3, SL 20-160 G3, and SL 30-199 G3

The condensate trap can be installed from the right or left side.

Notes

Condensate drain must be piped to within 1" of a drain, or connected to a condensate pump.

Drainage line must slope down at a pitch of 14" / ft, so condensate runs towards the drain.

Condensate trap should be checked every two months, and cleaned and refilled as necessary.

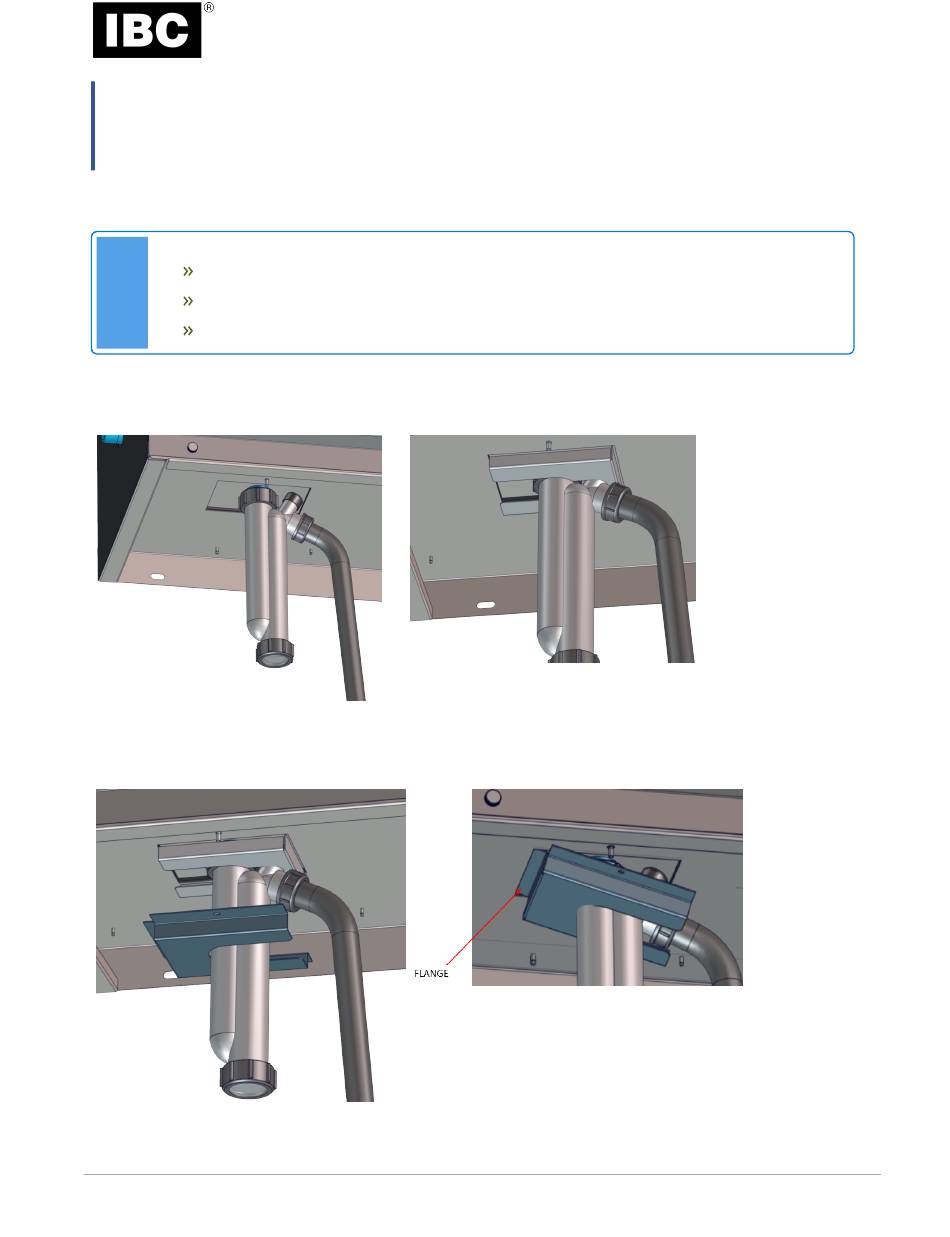

Install the condensate trap onto the heat

exchanger.

Slide the cover over the retainer.

(2/7/2020)

120-300-R2

Installation Instructions

Slide the condensate retainer over the trap.

Insert the cover flange inside the boiler cabinet.

| 1

Need help?

Do you have a question about the SL 10-85 G3 and is the answer not in the manual?

Page 1 Installation Instructions Installing a condensate trap in boilers produced after July 2019 Models: SL 10-85 G3, SL 14-115 G3, SL 20-160 G3, and SL 30-199 G3 The condensate trap can be installed from the right or left side. Notes Condensate drain must be piped to within 1" of a drain, or connected to a condensate pump.
Page 2 To secure the assembly in place, screw Ensure that the condensate retainer fits securely below the the nuts onto the studs. condensate trap nut. Warning To prevent exhaust fumes from entering the room, fill the trap with water before firing the boiler. Install the trap retainer as instructed, and tighten all trap fittings to prevent flue gas leakage.
