PreSonus AudioBox USB 96 Manual

What's in the box

Along with this Quick Start Guide, your package contains the following:

Downloads

  • Universal Control with software drivers for Windows®
  • Studio One Artist DAW and resources (approximately 2 GB)
  • AudioBox USB96 Owner's Manual PDF

Getting Started

Congratulations on choosing a PreSonus AudioBox USB 96. You now own a state-of-the-art, USB 2.0 interface featuring two Class A microphone preamplifiers, analog monitoring, high-resolution 96 kHz recording — and Studio One Artist creative music environment.

Register Your Product

  1. Go online to my.presonus.com and create — or log into — your My PreSonus user account.
    Product Registration - Step 1
  2. Click to register.
    Product Registration - Step 2
  3. Enter your AudioBox USB96 serial number and purchase date, then click Register.

Download Your Software and Manual

Download the following from your My PreSonus user account:


Universal Control for Windows (not necessary for Mac)


AudioBox USB96 Owner's Manual


Studio One Artist software (optional)

Install Universal Control

Windows users: Install Universal Control and the AudioBox USB96 Windows driver. This installer was designed to be easy to use. Simply follow the onscreen instructions. You will be alerted that the installer has successfully finished and it will prompt you to reboot your computer. Click "Finish" to automatically restart your computer

macOS users: The AudioBox USB96 is a class-compliant Core Audio device, so no installation is necessary. Simply connect your AudioBox USB96 to your computer to begin using it.

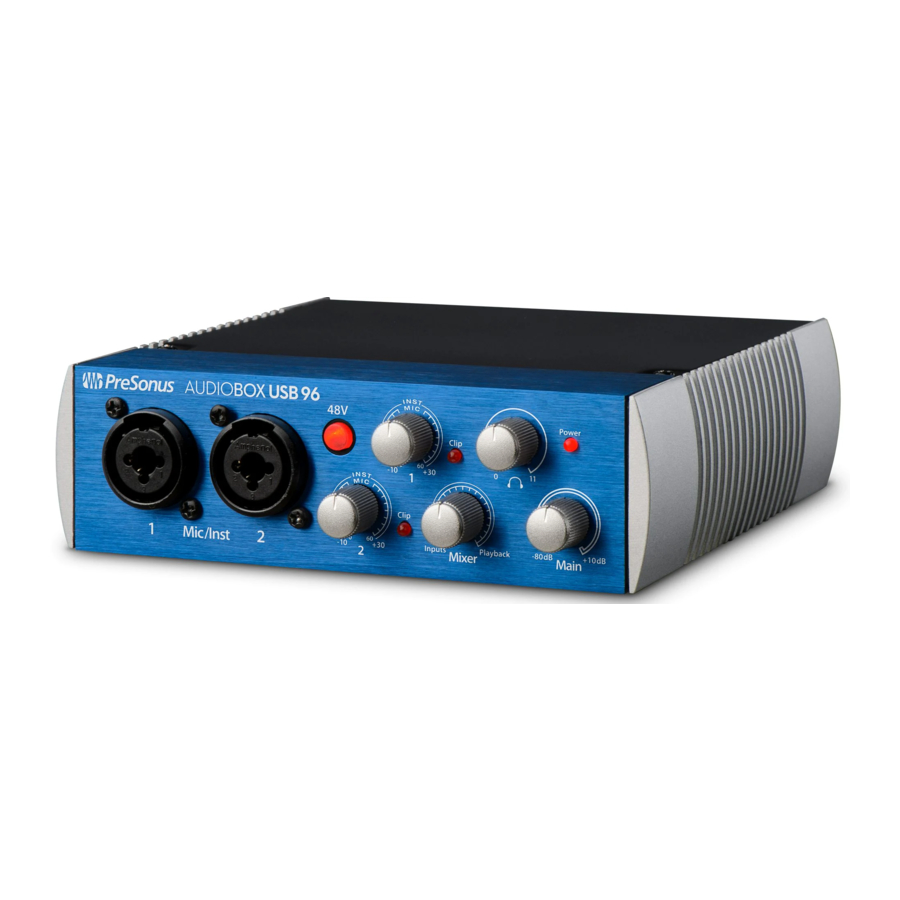

Meet the Product

Getting Started - Product overview

Make the Connections

Getting Started - Making the Connections

Install Studio One


To install Studio One Artist, download the Studio One Artist installer from your My PreSonus account to the computer on which you will use it.

Windows users: Launch the Studio One Artist installer and follow the onscreen instructions.
Mac users: Drag the Studio One Artist application into the Applications folder on your Mac hard drive.

Authorize Studio One

Getting Started - Activating the Studio One
When Studio One is launched for the first time on your computer, you'll need to enter your My PreSonus account information. Once entered, Studio One will scan your account for available Studio One Product Keys. Select your Product Key and click Activate. Your computer will need to be connected to the Internet for authorization and activation.

Install Studio One Bundled Content

Installing Studio One Bundled Content
Studio One Artist comes bundled with demos, instruments, loops, and samples to provide you with everything you need to begin producing music.
The first time you launch Studio One Artist, you will be prompted to install its companion content. Select the content you wish to add and click "Install" to automatically download and install it from your My PreSonus user account.

Start Recording

  1. Launch Studio One Artist.
  2. From the Start page, select "Create a new Song."
  3. Select "AudioBox USB" from the Templates list.
  4. Give your Song a name.
    Starting Recording - Step 1
  5. Click the OK button when you are finished.
  6. Click on the MIX button to open the Console in Studio One.
  7. Turn the Mixer knob on the front panel of your AudioBox USB96 to the 12 o'clock position. This will allow you to hear both your inputs and the playback from the computer.
  8. Connect a pair of headphones to the AudioBox USB96 headphone output and turn the Phones volume control to the 12 o'clock position.
  9. Connect a microphone then speak into it while watching the meter on Channel 1 in Studio One and slowly turning the AudioBox USB96 Input 1 Trim knob clockwise.
    You are now ready to record.
    Starting Recording - Step 2
  10. Click the "Record" button in Studio One Artist and begin recording your first masterpiece!
    Starting Recording - Step 3

To playback your recording, click on the "Return to Zero" button in the transport in Studio One Artist and then click on the "Play" button.

Learn More

A variety of helpful tips, tricks, and educational material is available at www.PreSonus.com including:

  • Your AudioBox USB96 Owner's Manual
  • The PreSonus User Community
  • PreSonus Learn Articles
  • Studio One Video Tutorials
  • And more....

18011 Grand Bay Ct. • Baton Rouge,
Louisiana 70809 USA• 1-225-216-7887
www.presonus.com
