Summary of Contents for Harvest Technology Nodestream NS12

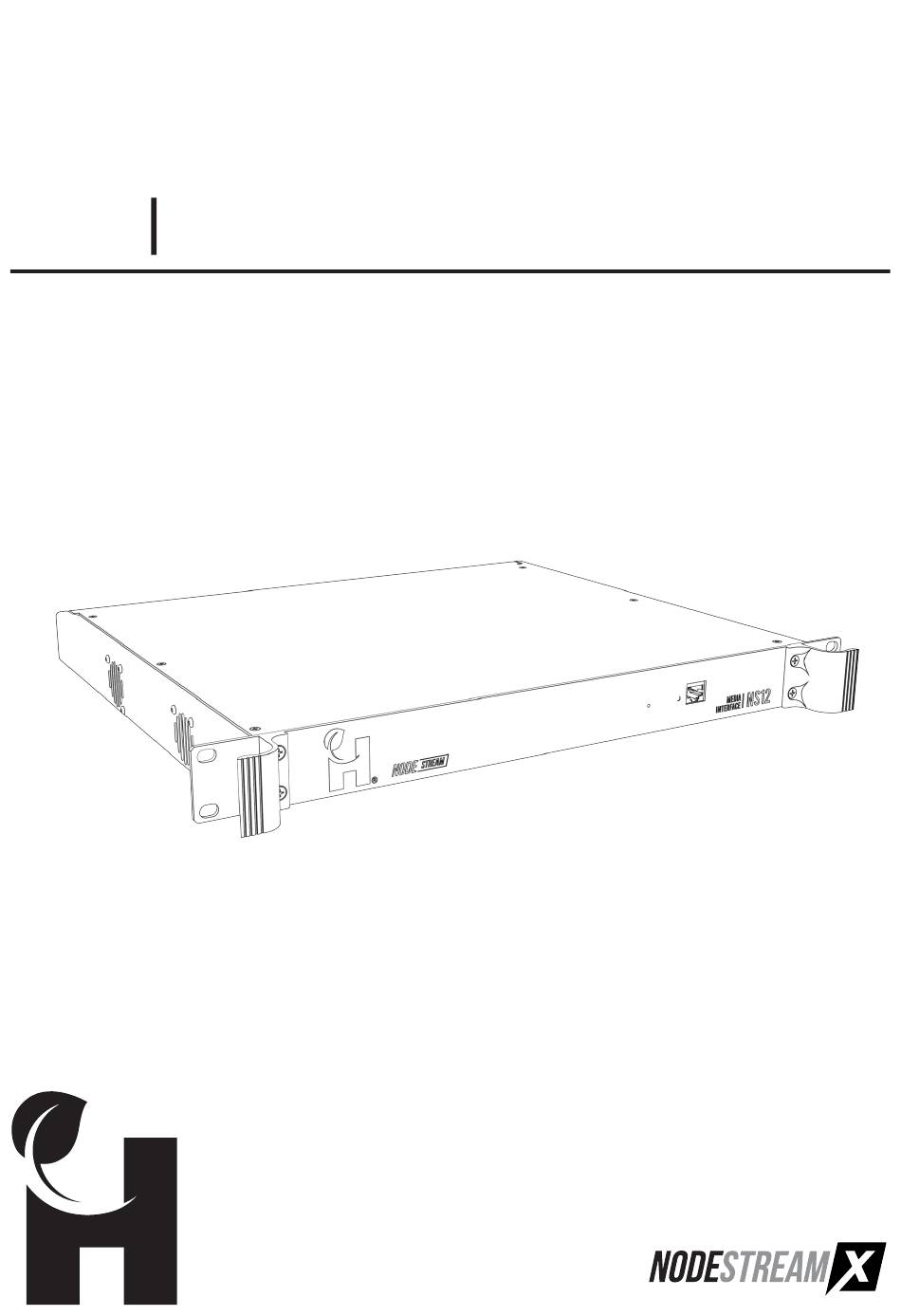

- Page 1 NS12 MEDIA INTERFACE Quick Start Guide ®...
- Page 2 Overview ® Welcome to the Nodestream 12ch Media Interface (NS12) Please read these instructions carefully before using this product, and save this quick start guide for future use. See the User Manual for full details via the QR code on the back page. Video Encode or Decode streaming solution NS12 MEDIA...
-
Page 3: Rear Connections
Overview ® Rear Connections Service / Display Rear Network outputs Accessory Connections 2 power supplies can be connected to provide redundancy. In the event that one fails, the system will continue to operate without interruption. See User Manual for further information. Power Input Power Sw indicator... -
Page 4: Installation
Installation ® The NS12 consists of 3 “quad” channel devices to allow for greater flexibility in connection topologies. Each of these devices have independent customer network connections & HDMI outputs. Install at 4 mount points Mount points Mount points Connect Configuration network to your LAN, power supply and: ENCODER DECODER... - Page 5 Configuration ® Accessing Web UI Initial network configuration is required via Web UI to set as DHCP or static Open Web UI Via a computer on the same network Connect your device to your LAN and power it up DHCP Enabled Network From the web browser of a PC connected to the same LAN, navigate to: device serial.local - e.g.
-
Page 6: Troubleshooting
7 Turner Ave, Technology Park Bentley WA 6102, Australia harvest.technology All rights reserved. This document is the property of Harvest Technology Pty Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or ®...
