- Page 1 NCMR AUDIO INTERFACE User Manual ™ ®...
- Page 2 Contact and Support User Resources support@harvest-tech.com.au Further information to content outside the scope of the user guide. Harvest Technology Pty Ltd 7 Turner Avenue, Technology Park Extra pointers or suggestions in Bentley WA 6102, Australia executing instructions. www.harvest.technology...
- Page 3 Disclaimer and Copyright Whilst Harvest Technology will endeavor to keep the information in this user guide up to date, Harvest Technology makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability or availability with respect to the user guide or the information, products, services or related graphics contained in the user guide, website or any other media for any purpose.
-
Page 4: Table Of Contents
Table of Contents Overview ������������������������������������������������������������������������������������������������������������������������ 5 Ports ...................................5 Connections ������������������������������������������������������������������������������������������������������������������ 6 Typical system setup ............................6 User Interface ..............................6 Configuration ����������������������������������������������������������������������������������������������������������������� 8 Initial Login ................................8 Dashboard .................................9 Network Configuration ..........................10 System Settings .............................13 Diagnostics..............................14 Deliverer ����������������������������������������������������������������������������������������������������������������������� 15 Appendix ���������������������������������������������������������������������������������������������������������������������� 16 Technical Specifications ..........................16 Troubleshooting .............................17... -
Page 5: Overview

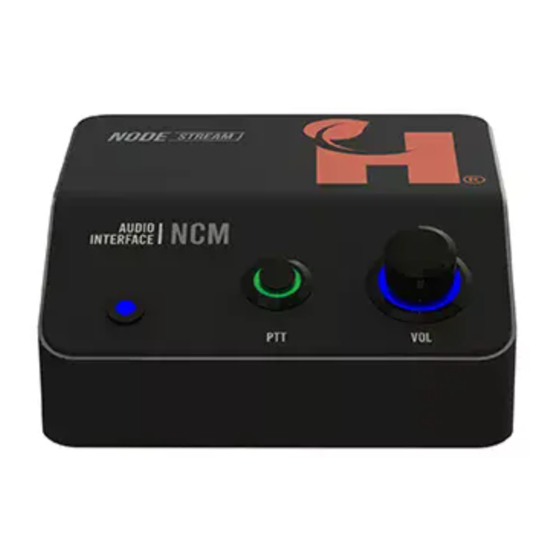

NCMR ® Overview The RiS Nodecom (NCMR) provides a single audio channel for streaming two-way audio to other devices on the customers RiS network Feature Summary • Low latency & bandwidth • User configurable network topology • Small form factor desktop solution •... -
Page 6: Connections
NCMR ® Connections The following audio devices are supported: • USB speakerphone or headset via either USB port (Jabra Speakerphone supplied) • 3.5mm stereo/mono + mic headset or microphone & speaker via the RHS port Typical system setup USB audio device Power Ethernet User Interface... - Page 7 NCMR ® Status LED NCMR AUDIO Power on (blue) INTERFACE PTT (Push To Talk) Press and Hold Start talking Release to mute Green Open Mic Press 3 times to (Off) Software not running open mic (Blue) Software running Press for 1 (Green) Audio connection active, mic muted sec to mute...
-
Page 8: Configuration
NCMR ® Configuration The NCMR is configured via a web interface. The web interface allows the user to view device information and status, configure network settings (wired and WiFi) and perform system related tasks. The device is shipped in a “factory default” state. Settings must be configured to enable use on the customers RiS network. -
Page 9: Dashboard
NCMR ® Dashboard Following initial login, the user will be presented with the WebUI dashboard. The following information and configuration is provided Device • Serial number & uptime Information • Select interface from drop down • Current network status & information Testing •... -
Page 10: Network Configuration
NCMR ® Network Configuration RiS devices communicate over a customers “closed” network, ensuring stable and secure transimssion of sensitive data. Device network adapters require IPv4 configuration. Firewall Settings The following port numbers MUST be set to open on customer network devices where applicable Data streaming, device control &... - Page 11 NCMR ® Select the IP Settings tab, then manual from the drop down Enter network settings as provided by you Network Administrator and select Save Ethernet connections MUST be reset for settings to take effect by • Disconnecting and reconnecting the ethernet cable •...
- Page 12 NCMR ® Select from the available networks then Connect or manually enter details then Join Network Select the IP Settings tab Enter network settings as provided by you Network Administrator and select Save HTG-TEC-GUI-019_0 page 12 of 19 Release Sep 2022...
-
Page 13: System Settings
NCMR ® System Settings Version Control • Software versions currently installed and resource usage Update Password • Enter details and select Update Factory Reset • Select to set the device to factory defaults (user and network settings) • Select Confirm or Cancel when prompted HTG-TEC-GUI-019_0 page 13 of 19 Release Sep 2022... -
Page 14: Diagnostics
NCMR ® Diagnostics Network • Network connection information • Select interface from drop down Software • Software versions currently installed and resource usage • Current CPU usage and temperature Memory & Other • Information on other system resources HTG-TEC-GUI-019_0 page 14 of 19 Release Sep 2022... -
Page 15: Deliverer
NCMR ® Deliverer RiS device connection and configuration is performed using the Deliverer application. Deliverer User Manual Refer to the Deliverer User Manual for additional information. HTG-TEC-GUI-019_0 page 15 of 19 Release Sep 2022... -
Page 16: Appendix
NCMR ® Appendix Technical Specifications Hardware Physical dimensions 120 (W) x 50 (H) x 120 (D) mm Weight 0.5 kg Power Power supply: 5V DC Power consumption (operating): 5W Environmental Temperature Operating: 0 °C to 35 °C Storage: -20 °C to 65 °C Humidity Operating: 0% to 90% (non-condensing) -
Page 17: Troubleshooting
NCMR ® Troubleshooting System Issue Cause Resolution Device not powering AC or DC not connected. Confirm PSU in plugged in and AC supply on Confirm USB-C cable is connected correctly Faulty or incompatible PSU Test with alternative PSU If using an alternative PSU ensure it meets required specifications (see “Technical Specifications”... - Page 18 NCMR ® Audio Issue Cause Resolution No audio input and/or output Device not connected Ensure device is connected and powered on Device not selected Select correct input and/or output device via the Deliverer application Output volume too low Level set too low Increase output volume at the connected device or via the Deliverer application Input volume too low...
- Page 19 Bentley WA 6102, Australia www.harvest.technology All rights reserved. This document is the property of Harvest Technology Pty Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, photocopy, recording or otherwise without the written consent of the ®...
