Summary of Contents for Harvest Technology Nodestream NSR

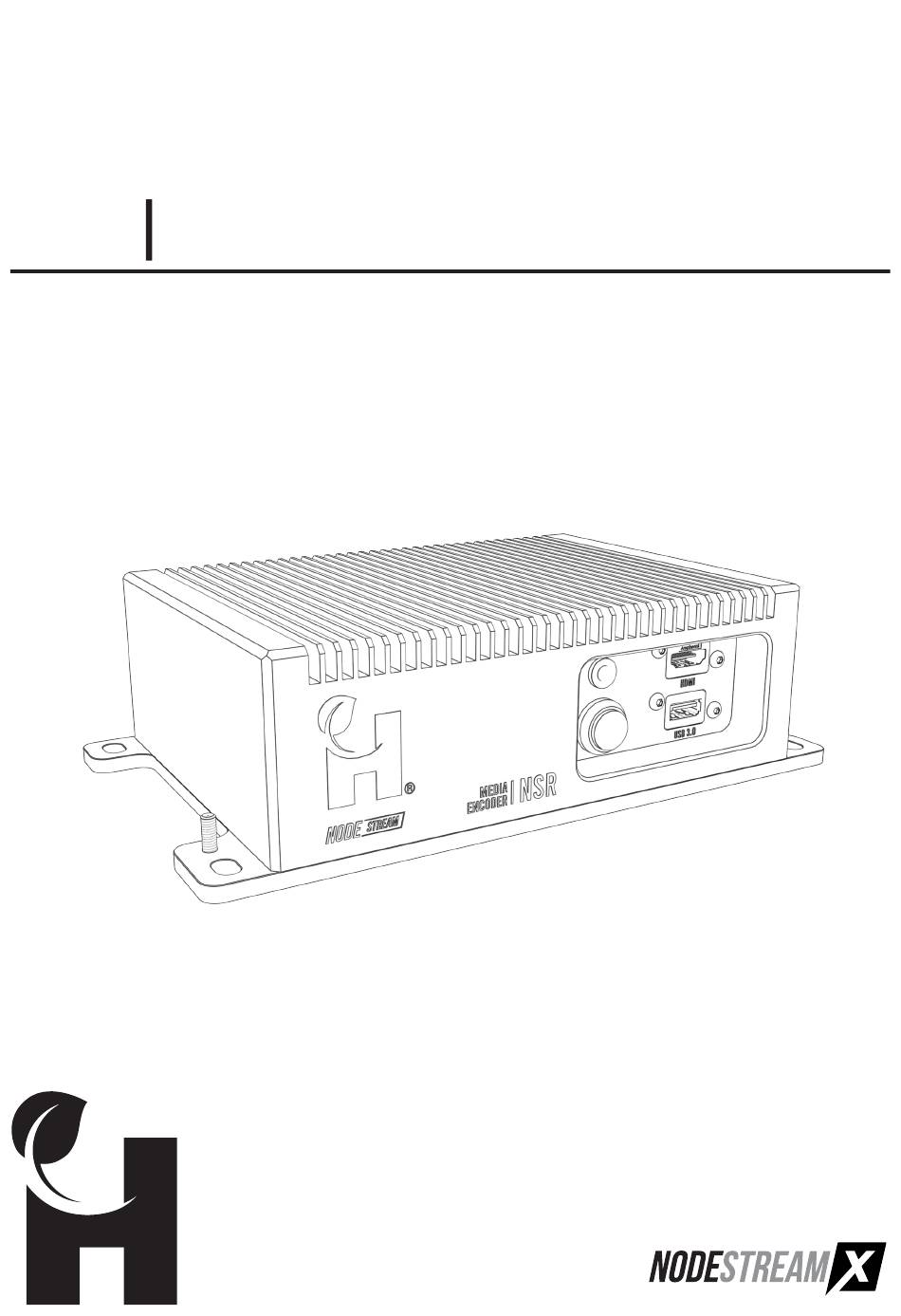

- Page 1 MEDIA ENCODER Quick Start Guide ®...
- Page 2 Overview ® Welcome to the Nodestream Rugged Encoder (NSR) Please read these instructions carefully before using this product, and save this quick start guide for future use. See the User Manual for full details via the QR code on the back page. Rugged video &...
-
Page 3: User Interface
Overview ® User Interface Status LED Reset Service Ports Status LED Reset Device Service Ports Service & user HDMI Power on (blue) configuration Press 2 sec Streaming (green) & release Service, user Reset Button configuration & Network issue (red) accessories Factory Reset Approximately 10 seconds Press &... -
Page 4: Installation
Installation ® Rear Connections POWER - M12 A-coded male LAN1/2 - M12 X-coded female SERIAL - M12 A-coded female Description Cable Description Description Description Cable + (9 to15V) Brown BI_DA+ BI_DD+ Brown + (9 to15V) White BI_DA- BI_DD- White Blue BI_DB+ BI_DC+ Blue... - Page 5 Configuration ® Accessing Web UI Initial network configuration is required via Web UI to set as DHCP or static Open Web UI Via a computer on the same network Connect your device to your LAN and power it up DHCP Enabled Network From the web browser of a PC connected to the same LAN, navigate to: device serial.local - e.g.
-
Page 6: Troubleshooting
7 Turner Ave, Technology Park Bentley WA 6102, Australia harvest.technology All rights reserved. This document is the property of Harvest Technology Pty Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or ®...
