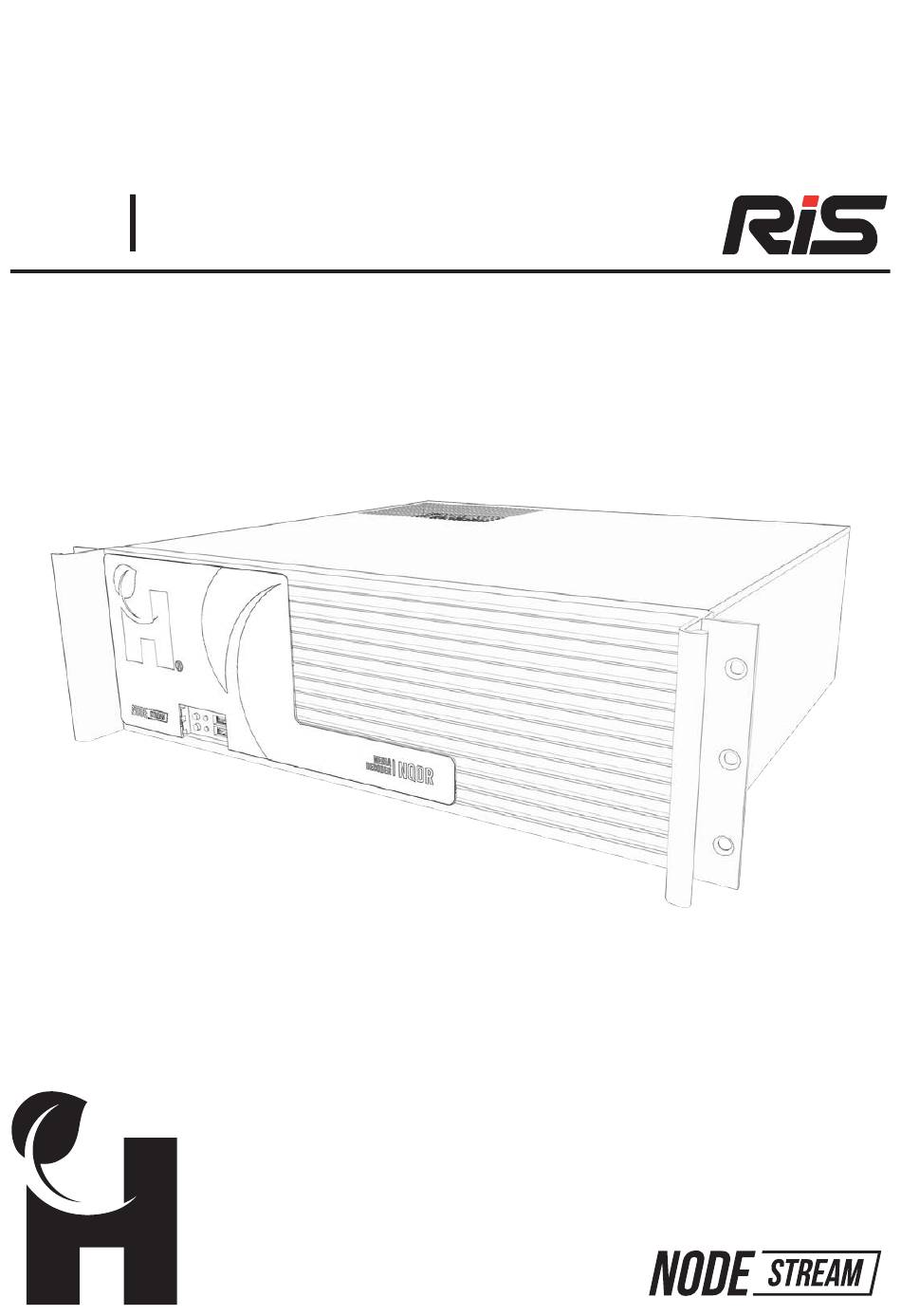

- Page 1 NQDR MEDIA DECODER Quick Start Guide ™ ®...
- Page 2 Overview ® Welcome to the Nodestream RiS Quad Decoder (NQDR) Please read these instructions carefully before using this product and save this quick start guide for future reference. See the User Manual for full details via the QR code on the back page. Video and data streaming solution ®...
-
Page 3: Rear Connections
Overview ® Rear Connections Power Power Switch Socket Ethernet USB-A Line In Serial Port Line Out DO NOT USE Mic In PS/2 HDMI DisplayPort USB-A USB-A Mini (output to Display monitors) Port IMPORTANT: 100-240VAC 47/63HZ only (UPS recommended). Do not use the Display Port or HDMI for output to monitors. (Use the Mini-Display port only). -
Page 4: Installation
Installation ® The NQDR is designed to be mounted in a standard 19” Rack and occupies 3U of space Ensure there is adequate spacing around the NQDR device for cooling. Cooling air travels in the direction as shown by the arrows. No vertical loading on the NQDR device. -
Page 5: Access Via Web Browser
Configuration ® Access via Web Browser Connect the RIS Quad Decoder to your LAN via the Ethernet port and power the device Input the IP address into the address bar of a web browser The device is set to DHCP by default. The IP address can be identified by use of a suitable IP scanning tool. -
Page 6: Troubleshooting
Bentley WA 6102, Australia www.harvest.technology All rights reserved. This document is the property of Harvest Technology Pty Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, photocopy, recording or otherwise without the written consent of the ®...
