Summary of Contents for Harvest Technology Nodestream NSR

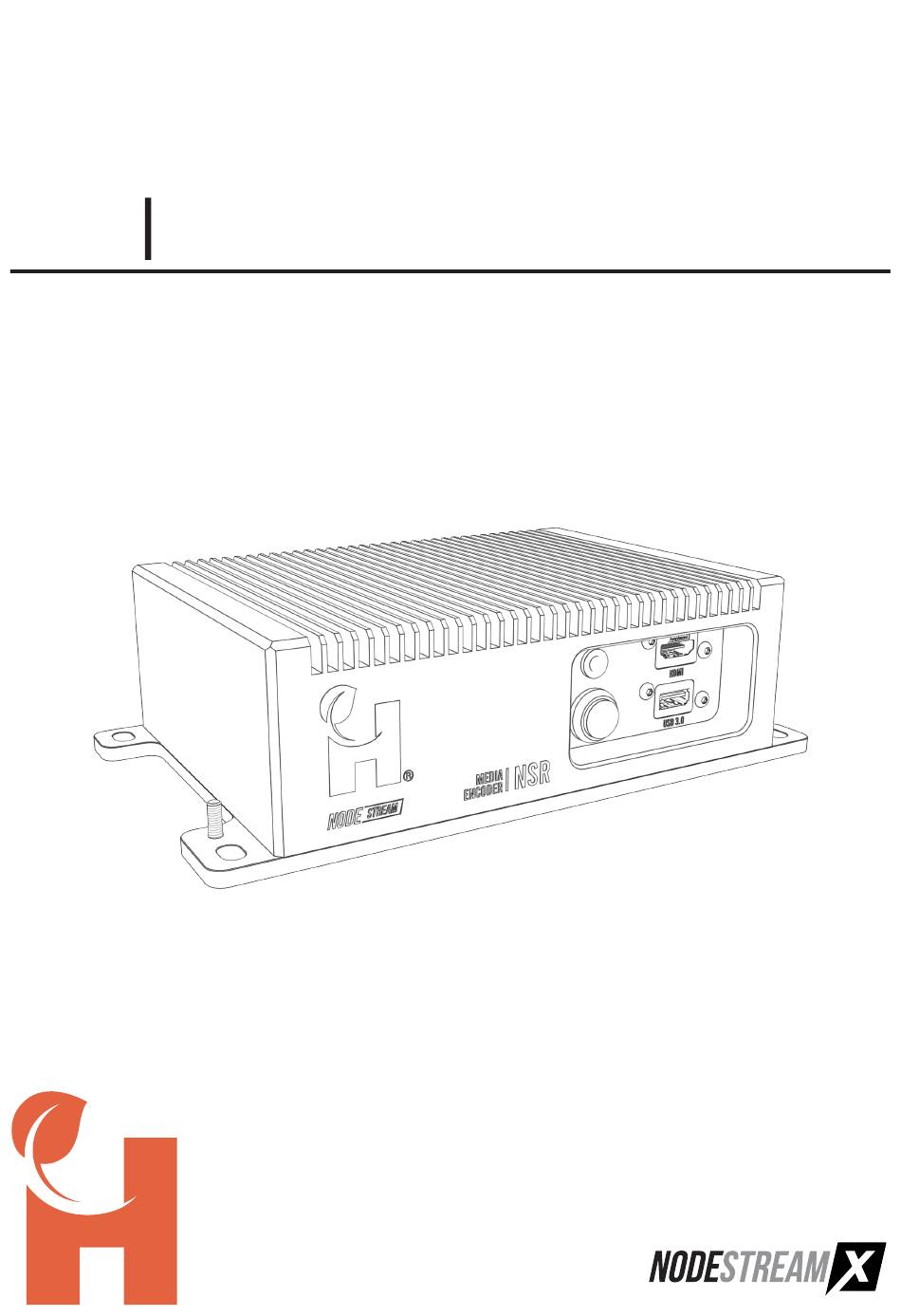

- Page 1 MEDIA ENCODER User Manual User Manual ®...
-
Page 2: Information For Your Safety
Contact and Support User Resources support@harvest-tech.com.au Further information to content outside the scope of the user guide. Harvest Technology Pty Ltd 7 Turner Avenue, Technology Park Bentley WA 6102, Australia Extra pointers or suggestions in harvest.technology executing instructions. -
Page 3: Disclaimer And Copyright
Disclaimer and Copyright Whilst Harvest Technology will endeavor to keep the information in this user guide up to date, Harvest Technology makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability or availability with respect to the user guide or the information, products, services or related graphics contained in the user guide, website or any other media for any purpose. -
Page 4: Table Of Contents
CONTENTS Getting Started ���������������������������������������������������������������������������������������������������������� 1 Introduction ������������������������������������������������������������������������������������������������������������������������������������������������������������� 1 Connections ������������������������������������������������������������������������������������������������������������������������������������������������������������ 2 Front ........................................2 Rear ........................................2 Configuration ������������������������������������������������������������������������������������������������������������� 4 Overview ������������������������������������������������������������������������������������������������������������������������������������������������������������������ 4 Access ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 Local Access ...................................... 4 Web Access ......................................5 Initial Configuration ................................... 6 Network ������������������������������������������������������������������������������������������������������������������������������������������������������������������� 6 Information ...................................... -
Page 5: Getting Started
NSR User Manual ® Getting Started Introduction Powered by Nodestream™ proprietary technology the NSR™ is a 4 channel ultra-low latency encoder that delivers high-quality video and audio from digital sources at resolutions up to 1080p60. The NSR™ features a rugged IP67 rated weather proof chassis, complemented by high performance components, providing secure and reliable transmission of video, audio, and data. -
Page 6: Connections
NSR User Manual ® Connections Front Reset Button Press to reset the system, press and hold to factory reset. Status LED RGB LED to indicate system status. BLUE - Power on (Idle) GREEN - Streaming RED - Network Issue USB-A 3�0 Used for connection to input or audio devices, i.e. - Page 7 NSR User Manual ® Pinouts POWER - M12 A-coded male LAN1/2 - M12 X-coded female SERIAL - M12 A-coded female /dev/ttyTHS1 Description Cable Description Description Description Cable + (9 to15V) Brown BI_DA+ BI_DD+ Brown + (9 to15V) White BI_DA- BI_DD- White Blue BI_DB+...
-
Page 8: Configuration
NSR User Manual ® Configuration Overview Configuration of your Nodestream device is performed via the system Web Interface. From here you can: • View system information • Configure network(s) • Set user login credentials • Enable/Disable remote support • Set device function •... -
Page 9: Web Access
NSR User Manual ® Web Access Connect your computer to the same network as your device or directly to the device via an Ethernet cable. Ethernet Ethernet Ethernet DHCP Enabled Network 1. Connect the LAN 1 port of your device to your LAN and power it up. 2. -
Page 10: Initial Configuration
NSR User Manual ® Initial Configuration primary network of your Nodestream device must be configured to ensure a stable connection and prevent the device from setting it’s IP address to default static, refer “Non-DHCP Enabled Network” on page 5 for further information. -
Page 11: Information
NSR User Manual ® Information Displays information related to the selected port (port can be selected from the drop down in the “Port” section) Name Name of the port Status Displays connection status of the port - connected or down (unplugged) Configured If "Yes", the port has been configured to either DHCP or manual SSID (WiFi only) -
Page 12: Port Configuration
NSR User Manual ® Port Configuration Configuration section for device networks. Ports can be configured to DHCP or Manual (static IP) Port Selection Drop down, displays available network ports. Select for configuration. Configuration Type Drop down, select either DHCP or manual. •... -
Page 13: Wifi
NSR User Manual ® Manual 1. Select “Manual” from the “IPv4” drop down and enter network details as provided by your Network Administrator, then save. 2. When prompted, confirm IP settings change. Network setting applied prompt will be displayed. 3. Enter the new IP address or http://serialnumber.local in your web browser to log back into the Web Interface. 4. - Page 14 NSR User Manual ® 3. Confirm security type is correct and enter password. DHCP 1. Select "DHCP" from the "IPv4" drop down, if not already selected, then save. 2. When prompted, confirm IP settings change, a network setting applied prompt will be displayed. 3.
-
Page 15: Firewall Settings
NSR User Manual ® 3. Enter the new IP address in your web browser to log back into the Web Interface. 4. Select the WiFi port and confirm network information is correct. Disconnect 1. Select WiFi from the “port” drop down. 2. -
Page 16: System
NSR User Manual ® System This section of the Web Interface provides information for software, changing system video modes, Web Interface password management, factory reset, and remote support enable / disable. Version Control Displays information relating to software processes and their resource usage. This can be useful in diagnosing software and/or performance issues. -
Page 17: Update Password
NSR User Manual ® Update Password Allows you to change the Web Interface login password. If the password is unknown, perform a factory reset. Refer “Factory Reset” below. Options Factory Reset Performing a factory reset of the device will reset: •... -
Page 18: Updates
NSR User Manual ® Updates This section of the Web Interface provides control and management of the device update system. Automatic Updates Automatic updates are enabled by default, downloading and installation occur in the background. During this process the device may restart. -
Page 19: Operation
NSR User Manual ® Operation Overlay When a monitor is plugged into your device and the system is in standby mode (not streaming video), an overlay displays system information. This allows the user to view current system status and assists with diagnosing system issues. -
Page 20: Video
NSR User Manual ® Video Encoding When your device is operating in encoder mode, inputs can be viewed by connecting a monitor. Inputs, as selected via a Harvest control application, will be displayed. This can be useful to diagnose issues with hardware and/or network stream video inputs. -
Page 21: Network Stream Inputs
NSR User Manual ® Network Stream Inputs Network streams associated with a connected Nodestream encoder, such as those from IP cameras, can be decoded and used as inputs. Inputs are added and managed via the Harvest control application. RTSP Real-Time Streaming Protocol is typically used for streaming IP cameras. They are unique to camera manufacturers and can differ between models. -
Page 22: Test Sources
NSR User Manual ® On-screen Diagnostics On screen diagnostic information for network streams is shown when a stream is selected as an input and no video is displayed. Attempting to connect Attempting to connect to stream URI shown. 7) Could not open resource for reading and writing IP incorrect and/or device not configured or connected to stream network. -
Page 23: Decoding
NSR User Manual ® Decoding When your device is operating in decoder mode, up to 4 video streams can be displayed on a connected monitor. Each stream can be individually displayed by changing what the connected encoder is sending via the Harvest Control Application. -
Page 24: Data
NSR User Manual ® Data Up to 10 channels of serial, TCP or UDP data can be simultaneously streamed between Nodestream connected devices. This versatile function enables: • Transaction of telemetry/sensor data to/from remote sites. • Control of remote systems . •... -
Page 25: Appendix
NSR User Manual ® Appendix Technical Specifications Physical Physical dimensions (HxWxD) 63 x 210 x 130 mm (2.48" x 8.27" x 5.12") Weight 2kg (4.41lbs) Power Input 5 pin M12 A Coded male - 9 to 28VDC Consumption (operating) 10W typical Environment Temperature Operating: -20°C to 70°C (-4°F to 158°F) -
Page 26: Troubleshooting
NSR User Manual ® Troubleshooting System Issue Cause Resolution Device not powering Power source not connected or Confirm DC supply or PSU is connected to your device and the powered supply is turned on Unable to access Web Interface LAN port not configured Connect to device locally and confirm network configuration correct Network issue... -
Page 27: Video
NSR User Manual ® Video Issue Cause Resolution No output to monitor Monitor not connected or powered Ensure monitor(s) connected and powered Test monitor with an alternative input Black screen displayed when USB USB device not supported Confirm USB source meets specifications source selected refer “Technical Specifications”... - Page 28 Bentley WA 6102, Australia harvest.technology All rights reserved. This document is the property of Harvest Technology Pty Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, photocopy, recording or otherwise without the written consent of the ®...
