DUAL NETWORKED STATION PORT
INTRODUCTION

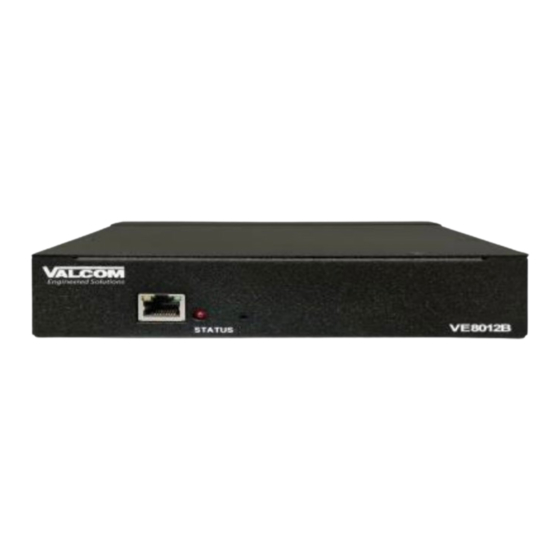

The VE8012B/VE8012BR Dual Networked
Station Port allows most loop start terminal
devices to be connected to a managed IP-based
network. The VE8012BR is made specifically for
rack mounting.
SPECIFICATIONS
Access Methods
PBX, FXO Port
POTS telephone set
Features
RJ-45 for network connection
2 RJ-11 telephone connections
4 Relays with Form C contacts
Front panel activity LED
Network activity LEDs
Ringer equivalency (REN)=0.8A
2.5mm jack for external power
Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight (VE8012B)
1.72" H x 7.00" W x 11.88" D
(4.36cm H x 17.78cm W x 30.18cm D)
Weight: 2.5 lbs. (1.13 kg)
Dimensions/Weight (VE8012BR)
1 Standard 19" Rack Unit
1.72" H x 16.50" W x 11.88" D
(4.36cm H x 41.91cm W x 30.18cm D)
Weight: 4.0 lbs. (1.81 kg)
Environment
Temperature:
Humidity:
0 to 85% non-precipitating
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Relay Current:
Ring Voltage
VE8012B/VE8012BR
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af (PoE) Ethernet Switch:
802.3af:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building
Precautionary Designations
0 to +40° C
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1 AMP @ 24VDC
42vRMS@20Hz
1
VE8012B
VE8012BR
.
:
WARNING
To Reduce The Risk Of Fire
Or Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à
la pluie ou à l'humidité.
Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l'appareil.
ISSUE 2
24VDC
325mA
Class 3
947543
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valcom VE8012B
Summary of Contents for Valcom VE8012B
- Page 1 ISSUE 2 VE8012B/VE8012BR DUAL NETWORKED STATION PORT INTRODUCTION The VE8012B/VE8012BR Dual Networked Station Port allows most loop start terminal devices to be connected to a managed IP-based VE8012B network. The VE8012BR is made specifically for rack mounting. SPECIFICATIONS Access Methods VE8012BR ...
-
Page 2: Fcc Information
PBX system, these units are (not included). With the brackets securely interfaced to the system via a fully protected attached to the wall, attach the VE8012B to the system central office port, which is a fully 947543... -
Page 3: Power Connections
Green LED: (Link) Indicates Ethernet connection Apply power by plugging the power supply in to when illuminated. the VE8012B/VE8012BR via the barrel connector on the rear of the VE8012B/VE8012BR or via Yellow LED: (Activity) Indicator flashes to PoE. indicate network activity. -
Page 4: Technical Assistance
Valcom equipment is not field repairable. TECHNICAL ASSISTANCE Valcom, Inc. maintains service facilities in When trouble is reported, verify power is being Roanoke, VA. Should repairs be necessary, supplied to the unit and there are no broken attach a tag to the unit clearly stating your connections. - Page 5 Figure 2. Wall Mounting Figure 4. Rack mounting Figure 3. Mounting Two Joined Units 947543...
