SECOLink PAS8 Series Wiring Manual page 4

Intruder alarm system
KM20B
Z2 COM +12V Z1 +12V COM CLK DAT
KM24, KM24A, KM24G
KM25
Page 4

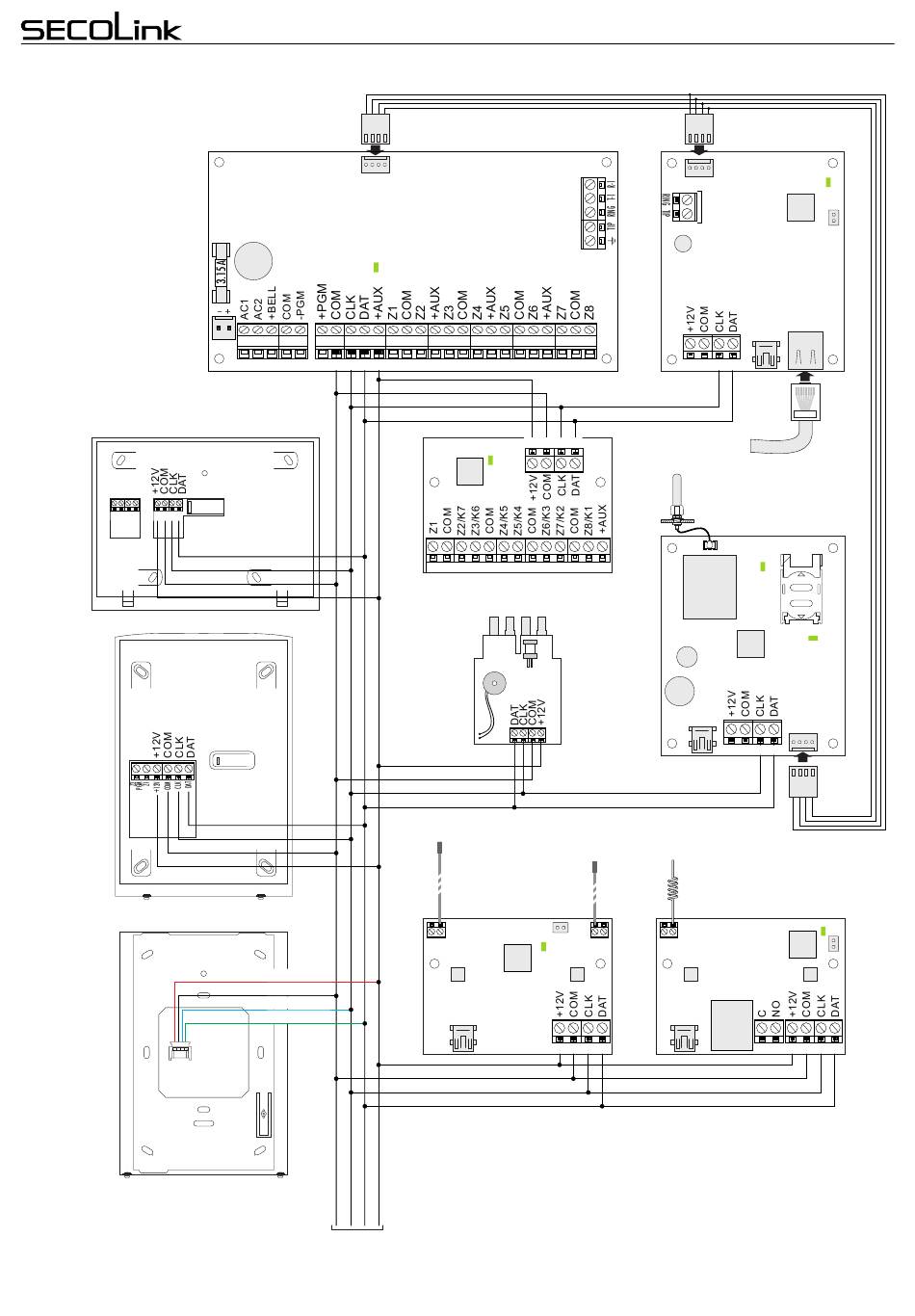

Wiring of system modules Wiring of system modules Wiring of system modules
PAS808M
PAS816
PAS832
X1
BAT
AC1 AC1 AC2 +BELLCOM -PGM +PGM COM CLK DAT +AUX Z1 COM Z2 +AUX Z3 COM Z4 +AUX Z5 COM Z6 +AUX Z7 COM Z8
Red (+AUX)
Black (COM)
Blue (CLK)
Green (DAT)
KRbus
R-1
T-1
RING
TIP
EXM800
+12V COM CLK DAT
Z1 COM Z2K7 Z3K6 COM Z4K5 Z5K4 COM Z6K3 Z7K2
PROX8
433,92 MHz
(EXT016, EXT216)
EXT016, EXT216
+12V COM CLK DAT
Control Panels PAS8xx
Not used
+12V COM CLK DAT
LAN cable
COM Z8K1 +AUX
+12V COM CLK DAT
868 MHz
868 MHz
(EXT216)
(EXT116S)
EXT116S
+AUX
COM
CLK
DAT
Wiring manual
LAN800
GSV6U
LOCK
OPEN
C NO +12V COM CLK DAT
