SECOLink PAS8 Series Manual

Intruder alarm system
The device must be installed in a place with limited access.
The device must be connected
cable, Neutral line (N)
isolated cables with minimum cross-sectional area of 0,75 mm for 230V power supply must be used.
The device uses two power supplies: main and back-up.
Main power supply: a power transformer with:
– primary winding: ~230V, 50 Hz;
– secondary winding: ~20V, 1.5A, 50Hz.
Back-up power supply: 1
SecoLink intruder alarm system is compliant with the safety requirements of EN 60950-1:2003.
All the above described power supplies linked to the system must comply with the EN 60950-1:2003 safety
requirements.

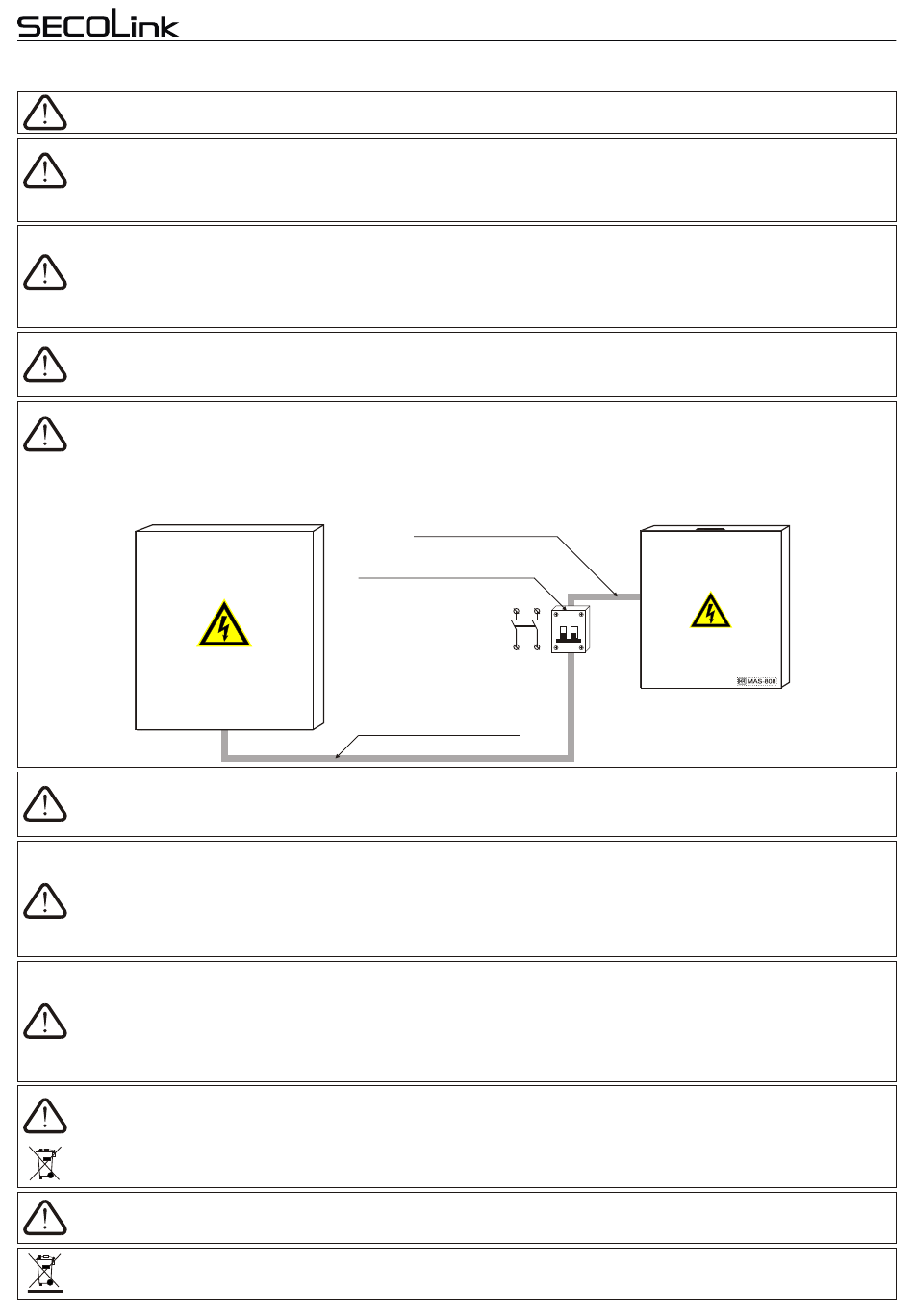

Additional automatic Two-Pole Circuit Breaker should be installed in an AC electric power circuit in order to prevent
over-current and short circuits.
The circuit breaker contact gap should be no less than 3mm.
The circuit breaker should be placed close to the system's housing and should be easily accessed.
Power supply distribution board
The device wiring and service should be performed by trained personnel with sufficient knowledge about the device
and general safety requirements for work with low voltage (up to 1000V) AC power lines. In the case of a device
malfunction repair works can be performed by qualified personnel only.
Before performing any work of installation or service ALWAYS disconnect the device from power supplies in
sequence as described below:
- cut off 230 V AC power line with the automatic Two-pole Circuit Breaker;
- disconnect 12V back-up battery by removing battery female plug from Control Panel male socket BAT.
Two-pole Circuit-Beaker installation on flexible cables is forbidden.
General safety requirements:
– do not touch any part of the main power supply under voltage: transformer, a fuse block, connection wires;
– it is forbidden to perform any device installation or service work during lightning;
– use batteries according to manufacturer recommendations. The use of improper battery type may cause an
explosion;
- battery replacement : be sure battery terminals are isolated, battery terminals short-wiring may cause an explosion.
It is not recommended to connect the device to a fully discharged battery. To avoid a malfunction of system use an
adequate charger to charge a new or discharged battery before connecting battery with a device.
Inoperative or expired batteries should be recycled according to the local rules or EU directives 2006/66/EC and
93/86/EEC.
Waste battery collection and returning for utilization separate from household waste is mandatory!
The Control Panel Terminals TIP, RING, T-1, R-1 should be connected to analog PSTN line. Connection to digital
ISDN line may cause the device damage.
Please act according to your local rules and do not dispose of your old product with normal household
waste. The product is covered by European Directive 2002/96/EC.
SAFETY WARNINGS
to an AC power supply with Protective Earthing: Phase or Live line (L) black or brown
– blue cable, Protective Earth line (PE)
2V, 7Ah/20HR capacity, rechargeable hermetically sealed Lead-Acid battery.
Automatic Two-pole
Circuir Breaker
Cable from power
distribution board
– green cable with a vertical yellow dash. Double
2
AC power cable to the
Alarm System
L N
L N
Control Panels PAS8xx Control Panels PAS8xx
Short wiring manual – basic information
–
Housing of the Alarm System (device)
Page 1
