SECOLink PAS8 Series Wiring Manual page 2

Intruder alarm system
For correct operation PAS8xx control panels
needs one 12V 7Ah rechargeable battery. The
battery is used as a back-up power supply in case
of temporal AC loss. This battery is also used
when alarm system consumes more power than
control panel can supply (~0,8 A). Excessive
consumption may happen when system activates
siren or radio transmitter. Usually activation last
only few minutes, so it does not discharge the
battery.
12V battery
7Ah/20HR
Live Neutral Protective
wire wire Earth wire
L N PE
Main Protective
Earthing terminal
Secondary winding:
Power supply
distribution board

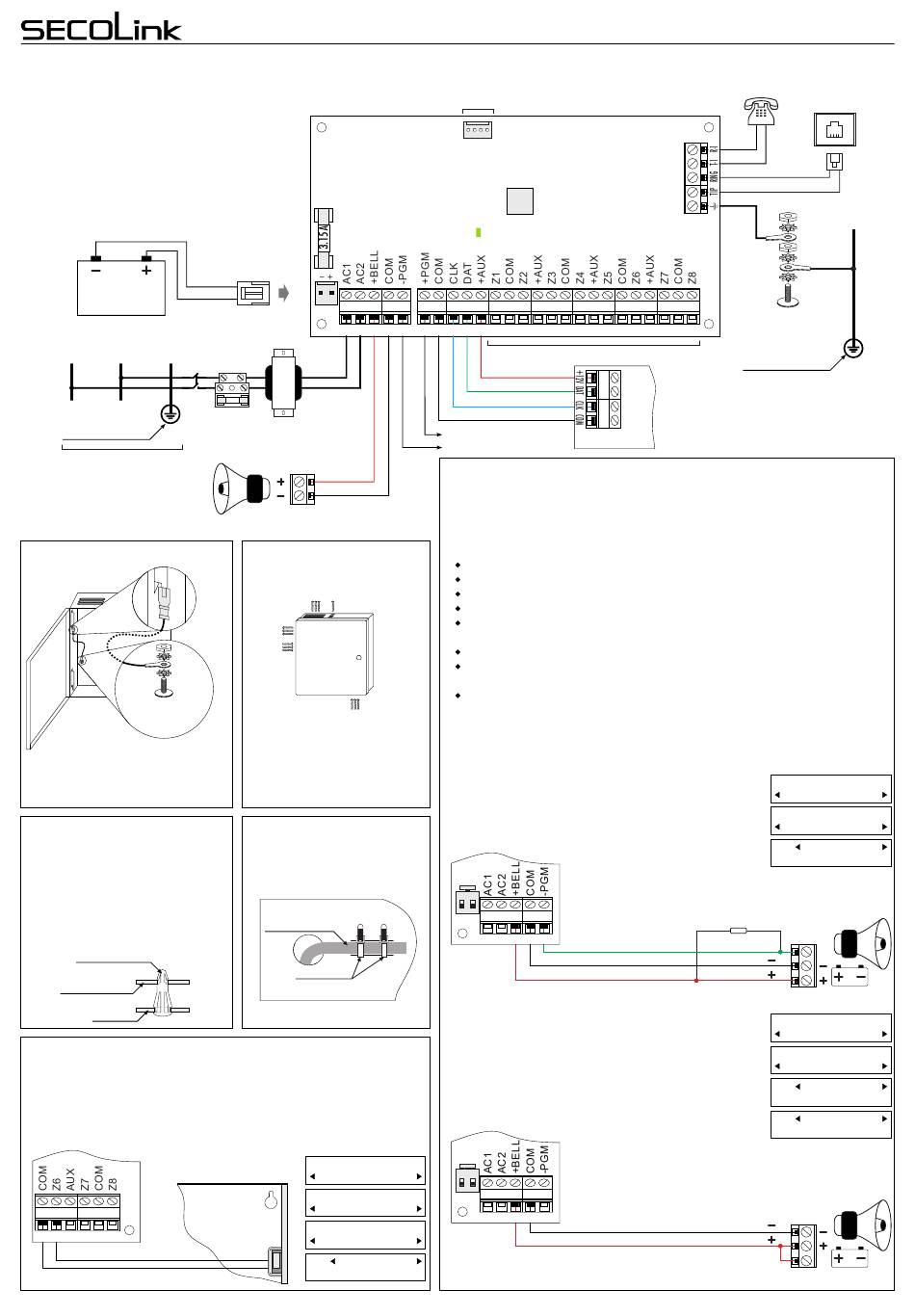

Picture 2. Wiring of power supply, PSTN line and siren without battery
Grounding cabinet door
Grounding
place
Use cable to connect cabinet door
with the cabinet grounding place.
Mounting modules in cabinet
Insert standoff into cabinet
mounting hole in the desired
location and snap-in-place. Position
circuit board mounting holes over
standoffs. Press firmly on board to
snap-in-place.
Plastic standoff
PAS8xx board
Cabinet
Use a tamper switch to protect control panel
By default PAS8xx zone Z6 is set for detection of alarm system cabinet
opening. Opening the cabinet when system is disarmed will make a
trouble event or will trigger an alarm if system is armed. When cabinet's
tamper is unused, input Z6 can be set as normal zone.
COM Z6 +AUX Z7 COM Z8
Page 2
Installation of control panel
PAS808M
PAS816
PAS832
Black
Red
X1
BAT
AC1 AC2 +BELL
Fuse
250mA
AC power transformer:
Primary winding: 230V AC 50Hz ~
~ 20V AC 50Hz
+BELL
COM
Attention!
Do not cover ventilation
holes of cabinet!
Leave minimum 10 cm of free
space between the ventilation
hole and any other surface.
Heating of control panel can
reduce maximum current on
+AUX and +PGM.
Securing power cable
to cabinet
Use cable ties to secure
power cable to cabinet wall.
Power cable to
alarm system
Cable ties
Cabinet rear wall
How to set by using
keypad KM20Bx:
Service Mode:
CAS8 System setup
System setup:
Modules
Tamper switch
fixed on
Modules:
cabinet's wall Settings
M00 Use Tamper
No
SERIAL port
LED
COM -PGM +PGM COM CLK DAT +AUX Z1 COM Z2 +AUX Z3 COM Z4 +AUX Z5 COM Z6 +AUX Z7 COM Z8
Zones (see "Zone wiring")
+AUX
DAT
CLK
COM
+PGM
-PGM
Template. Siren output programming
SECOLINK security systems are supplied to customers with a pre-installed
template in the keypad memory. The template is a set of most frequently used
system settings. During First start procedure keypad sends these settings to
other modules. When First start is completed the system will be set to
1 partition and 8 zones:
Z1 is preset to be used with a entry door magnetic contact;
Z2 - with PIR motion detector in entry/exit path;
Z3, Z4 - for PIR detectors wiring;
Z5 - with smoke detector;
Z6 - for cabinet tamper switch wiring;
PGM outputs:
+BELL (O01) is preset in the template to control a siren with no battery;
-PGM (O02) is preset to make activation (makes "minus") of siren with back-
up battery;
+PGM (O03) is preset to make +12V power supply for smoke detectors. See
page 6 - Wiring of 4-wire smoke detector.
SECOLINK security systems may have different templates for different
countries. Check keypad sticker for a country prefix or pre-installed template
code. Example: KM20B_MY
Note: in most templates +BELL is set for sirens with no
battery (picture 2). To use the siren with back-up battery
(picture 3) you need to change +BELL (O01) definition to
"Power supply". Definition changing sequence is showed
on the right (example for KM20Bx keypad).
X1
BAT
AC1 AC2 +BELL COM -PGM
Picture 3. Installation of 3 wire type siren. Siren uses back-up battery
Note: in case installation uses 2 wire siren with back-up
battery (picture 4) installer needs to make changes as
showed on the right. This type sirens uses back-up
battery to sound alarm and makes alarm when power
supply line (+BELL) do not provide power from control
panel. Use Inversion of Status PGM attribute to
program system for this operation. Programming
sequence on the right.
X1
BAT
AC1 AC2 +BELL COM -PGM
Picture 4. Installation of 2 wire type siren. Siren uses back-up battery
Control Panels PAS8xx
R-1
T-1
RING
TIP
+12V
DAT
CLK
COM
Module
Use 3-15 kOhm resistor on siren terminals +BELL and -PGM if
siren does not give enough voltage.
10kW
-PGM negative control
power supply
COM
power supply
+BELL
Note: check siren wiring manual from manufacturer.
Switches or jumpers can be used to setup this type siren.
power supply
COM
+BELL positive control / power supply
Wiring manual
Analog PSTN line
Protective Earth
wire PE
Cabinet grounding
place
Main Protective
Earthing terminal
Service Mode:
System Setup
System Setup:
PGM Outputs
O01 Definition
Power Supply
S
Service Mode:
System Setup
System Setup:
PGM Outputs
O01 Definition
Fire/BurgAlarm
O01 Attributes
+InversionOfS
S
