SECOLink GSV4 Wiring Manual

Intruder alarm system
The device must be installed in a place with limited access.
The device must be connected to AC power supply with Protective Earthing. Cable color and purpose: Phase or Live line (L) -
black or brown cable, Neutral line (N) - blue cable, Protective Earth line (PE) - green cable with a vertical yellow stripe. Please use
only double isolated cables with a cross-sectional area of no less than 0,75 mm for 230V.
The device uses two power supplies: main and back-up.
Main power supply: a power transformer with:
- primary winding: ~230V, 50 Hz;
- secondary winding: ~20V, 1.5A, 50Hz.
Back-up power supply: 1
SECOLINK intruder alarm system GSV4 is compliant with EN 60950-1 safety requirements.
Power supplies described above must comply with the EN 60950-1 safety requirements.
All devices connected to the intruder alarm system must comply with EN 60950-1 safety requirements.
Intruder alarm system is compliant with the essential requirements of Directives 1999/5/EC, 2004/108/EC and 2006/95/EC.
Intruder alarm system contains radio transceiver operating in GSM900/1800 bands.
Please read and follow these safety guidelines in order to maintain safety of operators and people around:
DO NOT use the intruder alarm system where it can interfere with other devices and cause any potential danger.
DO NOT use the intruder alarm system with medical devices.
DO NOT use the intruder alarm system in a hazardous environment.
DO NOT expose the intruder alarm system to high humidity, chemical environment, or mechanical impacts.
Additional automatic Two-Pole Circuit Breaker should be installed in AC electric power circuit in order to protect against over-
current, short circuits, and earthing faults.
The circuit breaker contact gap should be no less than 3mm. Protective circuit breaker current must be in a 0,5A - 2A range. The
circuit breaker should be placed close to the system's housing and should be easily accessed.
Power supply distribution board
Device installation and service should be performed by trained personnel with sufficient knowledge about the device and general
safety requirements to work with low voltage (up to 1000V) AC power lines. In case of device malfunction, repair works can only be
performed by qualified personnel. If the system is malfunctioning, the end user should inform qualified personnel as soon as
possible. The user is not allowed to repair the system.
Before performing any work of installation or service always disconnect the device from power supplies in the following order:
- cut off the 230 VAC power line with the automatic Two-pole Circuit Breaker;
- disconnect the 12V back-up battery by removing battery female plug from a male socket BAT.
Two-pole Circuit-Beaker installation on flexible cables is forbidden.
Intruder alarm system comes with built
General safety requirements:
- do not touch any part of the main power supply under voltage: transformer, a fuse block, and connection wires;
- it is forbidden to perform any device installation or service work during lightning;
- use batteries as per manufacturer's recommendations. The use of improper battery type may cause an explosion;
- battery replacement : make sure that battery terminals are isolated; battery terminals' short-wiring may cause an explosion.
It is not recommended to connect the device to a fully discharged battery.
charge a new or discharged battery before connecting battery to the device.
Inoperative or expired batteries should be recycled according to the local rules or EU directives 2006/66/EC and 93/86/EEC.
Collection and separate utilization of waste battery is mandatory!
Connection to the main supply must be made as per local authorities rules and regulations.
The end of a stranded conductor should not be consolidated by soft-soldering. Insulated pins should be used and connected in a
manner that they are and will remain mechanically efficient.
Please act according to your local rules and do not dispose of your unusable alarm system or its components with other household
waste. This product utilization in EU is covered by European Directive 2002/96/EC.

SAFETY WARNINGS

2V, 7Ah/20HR capacity, rechargeable hermetically sealed Lead-Acid battery.
Cable from a power
distribution board

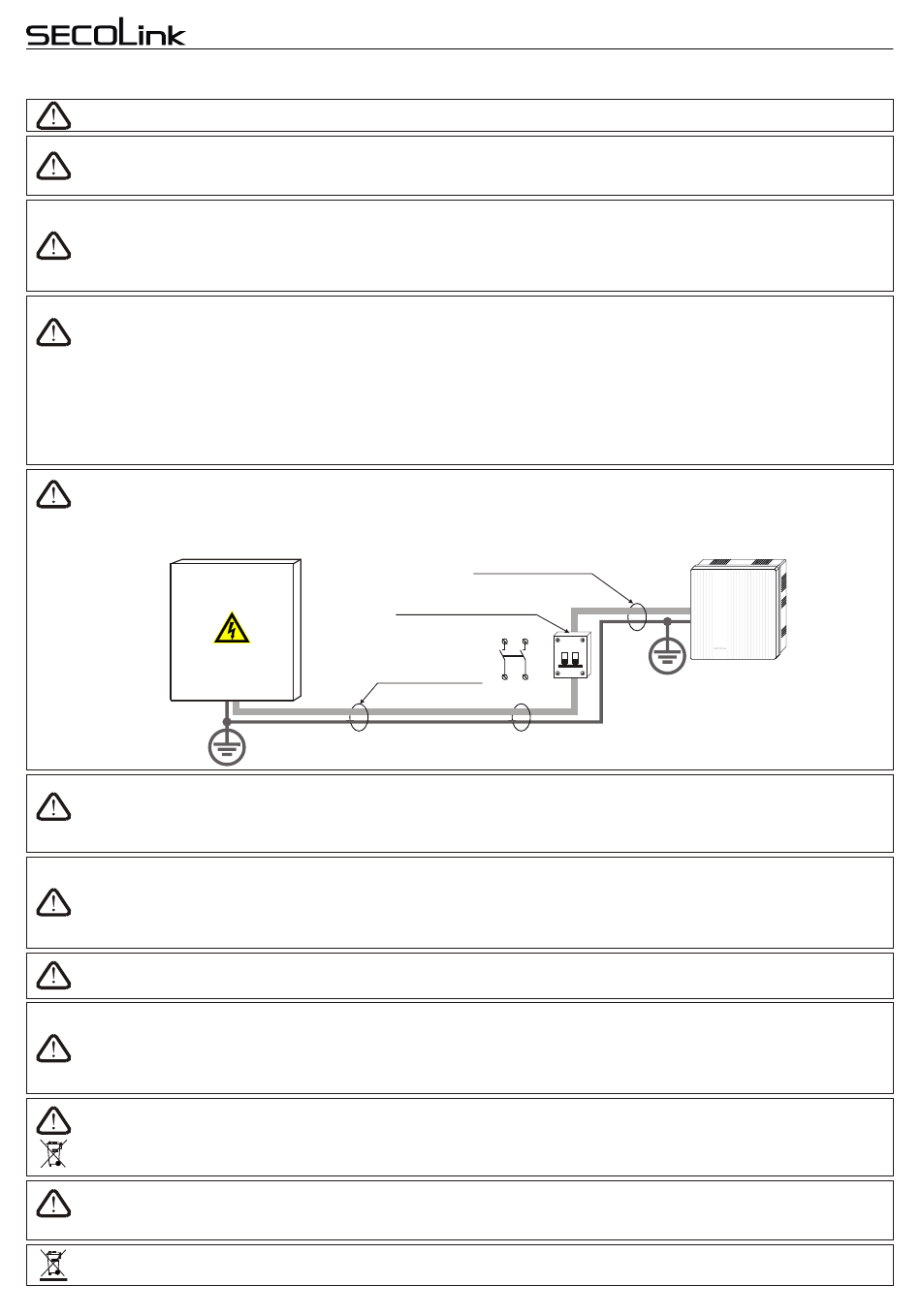

Fig. 1. Automatic two-pole circuit breaker and power cable wiring diagram
-in LEDs. The LEDs blink when device is powered up.
2
Power cable to the
alarm system
Automatic two-pole
circuit breaker
L N
L N
To avoid system malfunction use an adequate charger to
Wiring manual
Cabinet of the alarm system (device)
GSV4
