3M PROTECTA Rebel 3100400 Instruction Manual

3M PROTECTA Rebel 3100400 Instruction Manual

Self retracting lifelines
Hide thumbs

Advertisement

Table of Contents

Trusted Quality Fall Protection
Swivel End
A - 2000192
(Optional)
A - 2000192
FOrm NO: 5903744
rev: B
INSTRUCTION MANUAL
ANSI Z359.14 Class B
ANSI A10.32
CSA Z259.2.2-98 Type 1
This manual is intended to meet the Manufacturer's
Instructions as required by the above listed standards
and should be used as part of an employee training
program as required by OSHA.

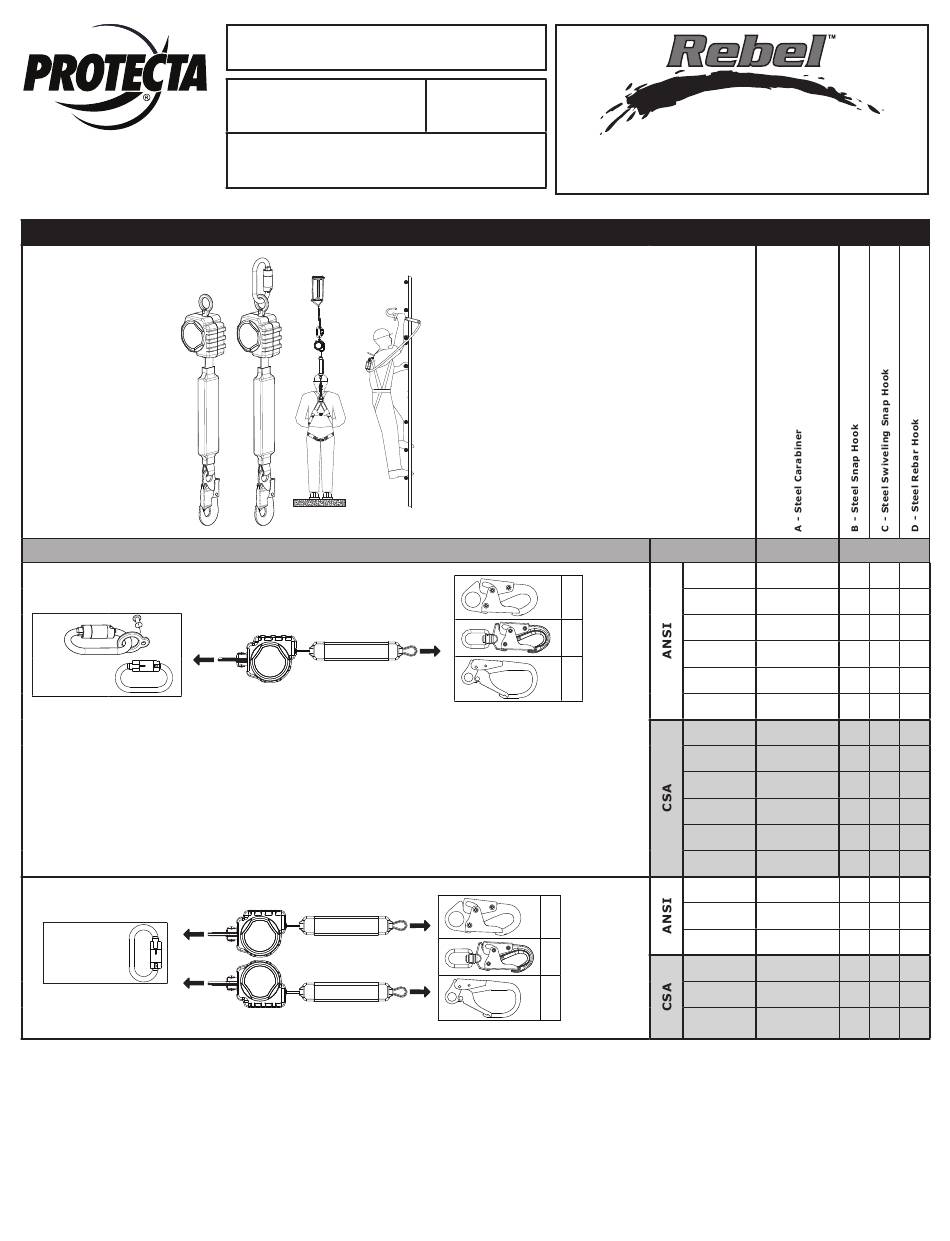

Figure 1 – Rebel™ Self Retracting Lifeline Models
Single SRL Models
Twin SRL Harness Mount Models
OSHA
SELF RETRACTINg LIFELINES
model Numbers: (See Figure 1)
Lifeline End
B
C
D
B
C
D
Model
Swivel End
Lifeline End
1
3100400
3100401
3100402
1
1
3100403
1
3100404
1
3100405
1
3100406
3100407
3100408
1
1
3100409
1
3100410
1
3100411
1
2
3100412
1
3100413
1
3100414
1
2
3100415
1
3100416
1
3101257
© Copyright 2014, Capital Safety
1
1
1
1
1
1
1
1
2
2
2
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROTECTA Rebel 3100400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3M PROTECTA Rebel 3100400

Summary of Contents for 3M PROTECTA Rebel 3100400

  • Page 1 INSTRUCTION MANUAL ANSI Z359.14 Class B OSHA ANSI A10.32 CSA Z259.2.2-98 Type 1 This manual is intended to meet the Manufacturer’s Trusted Quality Fall Protection SELF RETRACTINg LIFELINES Instructions as required by the above listed standards and should be used as part of an employee training model Numbers: (See Figure 1) program as required by OSHA.
  • Page 2 WARNING: This product is part of a personal fall arrest, work positioning, or rescue system. The user must follow the manufacturer’s instructions for each component of the system. These instructions must be provided to the user of this equipment. The user must read and understand these instructions before using this equipment.
  • Page 3 1.0 APPLICATIONS PURPOSE: Capital Safety Self Retracting Lifelines (SRLs) are designed to be a component in a personal fall arrest system (PFAS). Figure 1 illustrates SRLs covered by this instruction manual and their typical applications. They may be used in most situations where a combination of worker mobility and fall protection is required (i.e.
  • Page 4 Table 1 – Inspection Schedule Inspection Frequency Application Type of Use Examples Conditions of Use Competent Person User Infrequent to Light Rescue and Good Storage Conditions, Indoor or Infrequent Annually Before Confined Outdoor Use, Room Temperature, Clean each use Space, Factory Environments Maintenance Moderate to Heavy...
  • Page 5 Figure 3 – Fall Clearance and Swing Falls Figure 3a: Figure 3B: Clearance required in feet (meters) between Working Level and Swing Falls Nearest Obstruction for User with Total Weight up to 310 lbs (140 kg). Do not tie off below the harness Dorsal D-Ring. 7 ft 7 ft 5 ft...
  • Page 6 2.16 Making COnnECtiOnS: Snap hooks and carabiners used with this equipment must be self-locking. Ensure all connections are compatible in size, shape and strength. Do not use equipment that is not compatible. Ensure all connectors are fully closed and locked. Capital Safety connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions.

  • Page 7: Installation

    3.0 InstallatIon Planning: Plan your fall protection Figure 6 – anchorage connections system before starting your work. Account for all factors that may affect your safety before, during, and after a fall. Consider all requirements and limitations defined in Section 2. Important: In most applications, the Rebel SRL can be connected to the anchorage or the harness Dorsal...
  • Page 8 4.0 UsE WarnInG: Do not alter or intentionally misuse this equipment. Consult Capital Safety when using this equipment in combination with components or subsystems other than those described in this manual. Some subsystem and component combinations may interfere with the operation of this equipment. Use caution when using this equipment around moving machinery, electrical hazards, chemical hazards, sharp edges, or overhead materials that may fall onto the lifeline.
  • Page 9 horizontal SySteMS: In applications where the Rebel SRL is used in conjunction with a horizontal system (i.e. Horizontal Lifeline, Horizontal I-Beams Trolley), the SRL and horizontal system components must be compatible. Horizontal systems must be designed and installed under the supervision of a qualified engineer.
  • Page 10 Figure 8 – rebel Srl System connections a - Dorsal D-Ring B - Carabiner c - Snap Hook D - Rebar Hook e - Anchorage Point Figure 9 – 100% tie-off Figure 10 – incorrect attachment...

  • Page 11: Maintenance, Servicing, And Storage

    5.0 InspEctIon inSPection FreQuency: The Rebel SRL must be inspected at the intervals defined in “Section 2.5 - Inspection Frequency”. Inspection procedures are described in the “Inspection Checklist” (Table 2). unSaFe or DeFective conDitionS: If inspection reveals an unsafe or defective condition, If inspection reveals an unsafe condition, remove the SRL from service, mark “UNUSABLE”, and dispose of in the recommended manner (see “Section 5.4 - Disposal”).
  • Page 12 table 2 – inspection checklist component: inspection: Pass Fail Inspect for loose fasteners and bent or damaged parts. (Figure 11) Inspect the Housing (A) for distortion, cracks, or other damage. Inspect the Swivel (B) and Swivel Eye (C) and Carabiner (D) for distortion, cracks, or other damage.
  • Page 13 Figure 14 – labeling...

  • Page 14: Inspection And Maintenance Log

    INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...
  • Page 15 LIMITED LIFETIME WARRANTY GARANTIE LIMITÉE SUR LA DURÉE DE VIE Warranty to End User: D B Industries, Inc., dba CAPITAL SAFETY USA (“CAPITAL SAFETY”) Garantie offerte à l’utilisateur fi nal : D B Industries, Inc., dba CAPITAL SAFETY USA (« CAPITAL SAFETY ») warrants to the original end user (“End User”) that its products are free from defects in materials and garantit à...
  • Page 16 Trusted Quality Fall Protection Distributed by Engineered Fall Protection Sales@EngineeredFallProtection.com www.EngineeredFallProtection.com Tel: (314) 492-4422 I S O 9 0 0 1...
  • Page 17 Numbers: (See Figure 1) program as required by OSHA. Figure 1 – Rebel™ Self Retracting Lifeline Models 10 ft (3.0m) 20 ft (6.0m) 11 ft (3.3m) Model Swivel Lifeline Swivel End Lifeline End 3100425 11 ft (3.3m)
  • Page 18 Rebel SRLs are available in 10 ft. (3.0m) (CSA only), 11 ft. (3.3m) (ANSI only), and 20 ft. (6.0m) (CSA and ANSI) lifeline lengths (See Figure 1). Rebel SRLs are equipped with an in-line Energy Absorber which retracts into a Thermoplastic Housing.
  • Page 19 1.0 APPLICATIONS PURPOSE: Capital Safety Self Retracting Lifelines (SRLs) are designed to be a component in a personal fall arrest system (PFAS). Figure 1 illustrates SRLs covered by this instruction manual and their typical applications. They may be used in most situations where a combination of worker mobility and fall protection is required (i.e. inspection work, general construction, maintenance work, oil production, confined space work, etc.).
  • Page 20 Results of the Authorized Service or Competent Person inspection should be recorded in the “Inspection and Maintenance Log” at the back of these instructions (see Section 5). lOCking SPEEd: Situations which do not allow for an unobstructed fall path should be avoided. Working in confined or cramped spaces may not allow the body to reach sufficient speed to cause the SRL to lock if a fall occurs.
  • Page 21 2.15 COMPatiBility OF COnnECtORS: Connectors are considered to be compatible with connecting elements when they have been designed to work together in such a way that their sizes and shapes do not cause their gate mechanisms to inadvertently open regardless of how they become oriented. Contact Capital Safety if you have any questions about compatibility.
  • Page 22 3.0 InstallatIon Planning: Plan your fall protection system Figure 6 – anchorage connections before starting your work. Account for all factors that may affect your safety before, during, and after a fall. Consider all requirements and limitations defined in Section 2. anchorage: Figure 6 illustrates typical SRL anchorage connections.
  • Page 23 Making connectionS: Figure 7 illustrates harness and anchorage connections for Rebel SRL Fall Arrest Systems. When using a hook to make a connection, ensure roll-out cannot occur (see Figure 4). Do not use hooks or connectors that will not completely close over the attachment object. Do not use non-locking snap hooks. The anchorage must meet the anchorage strength requirements stated in section 2.3.
  • Page 24 6.0 maIntEnancE, sErVIcInG, and storaGE cleaning: Cleaning procedures for the Rebel SRL are as follows: • Periodically clean the exterior of the SRL using water and a mild soap solution. Position the SRL so excess water can drain out. Clean labels as required. •...
  • Page 25 table 2 – inspection checklist component: inspection: Pass Fail Inspect for loose fasteners and bent or damaged parts. (Figure 8) Inspect the Housing (A) for distortion, cracks, or other damage. Inspect the Swivel (B) and Swivel Eye (C) and Carabiner (D) for distortion, cracks, or other damage.
  • Page 26 Figure 11 – labeling 10 ft (3.0m) 11 ft (3.3m) 20 ft (6.0m)
  • Page 27 INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...
  • Page 28 LIMITED LIFETIME WARRANTY GARANTIE LIMITÉE SUR LA DURÉE DE VIE Warranty to End User: D B Industries, Inc., dba CAPITAL SAFETY USA (“CAPITAL SAFETY”) Garantie off erte à l’utilisateur fi nal : D B Industries, Inc., dba CAPITAL SAFETY USA (« CAPITAL SAFETY ») warrants to the original end user (“End User”) that its products are free from defects in materials and garantit à...
