Montageanleitung
Serie 800
Bitte sorgfältig aufbewahren!
http://links.vs-service.com/downloads/70-203_V15_DEEN_Serie_800.pdf
Assembly instruction
Serie 800
Please store this document in a safe place!
Mail: vs@vs-moebel.de · Web: www.vs.de
Phone: + 49 93 41 88 - 0
ID: 70-203_MA_DEEN - V15 - 22.01.2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for VS 800 Series

Summary of Contents for VS 800 Series

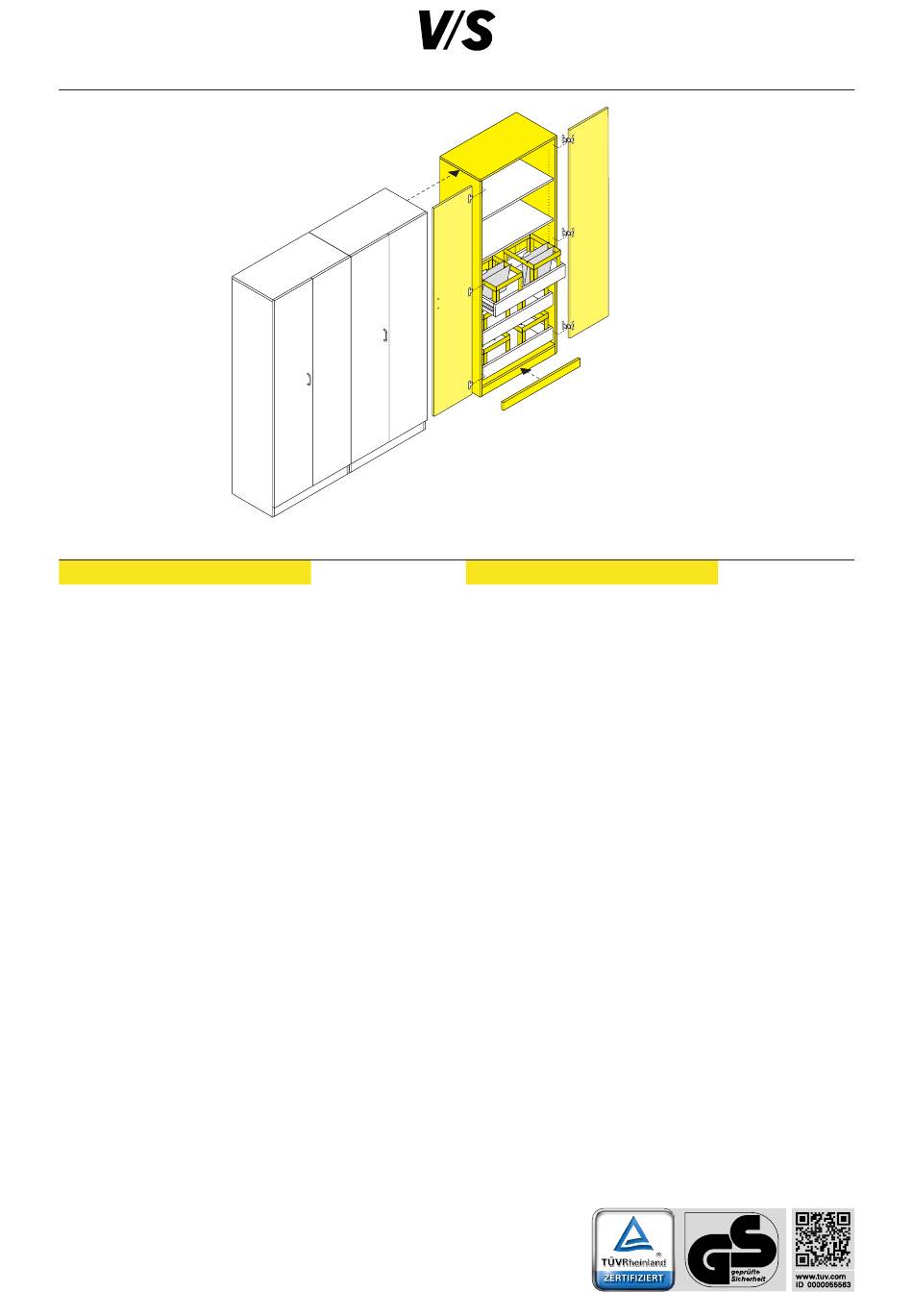

  • Page 1 Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_DEEN - V15 - 22.01.2025 http://links.vs-service.com/downloads/70-203_V15_DEEN_Serie_800.pdf Montageanleitung Assembly instruction Serie 800 Serie 800 Bitte sorgfältig aufbewahren! Please store this document in a safe place!

  • Page 2: Table Of Contents

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 Contents General note on safety Compartments and special shelves General comments 11.1 Mailboxes 11.2 Form compartments Assembling the cabinet panels 11.3 Magazine shelves Assembling a body supplied disassembled 11.4 Pull-out shelf inserts...

  • Page 3: General Comments

    They are also available via download: (see title in - VS must inform the customer if, for example, other items cannot header). be used due to the cabinet wall.

  • Page 4: Assembling The Cabinet Panels

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2. Assembling the cabinet panels. Step 4: Apply glue to the back of the groove in the upper part of the base and press onto the body positioned on the floor. Tap into Important! There are three types of base which are place with a rubber hammer;...

  • Page 5: Assembly Variant: Body With Center Partition

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.2 Assembly variant: body with center 2.4 Erection in final position partition Caution! In the case of cabinets delivered preassembled, it [Figure 1] is essential to remove the four transport corner protectors below the base;...

  • Page 6: Cut-Outs In The Body

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 71 mm 71 mm 2.5 Cut-outs in the body Produce the cut-outs with a keyhole saw or bell-saw drill attach- ment (max. 1 cm excess length and width). Gently chamfer and Connections for TV, radio, IT equipment, telephone, electricity, smooth the cut edges using a file or an abrasive sheet.

  • Page 7: Leveling And Connecting The Body

    In the center between the hinges. Caution! Choose the drilling positions in such a way that the shelf inserts hide these or cover them with VS adhesive pads of the corresponding color.

  • Page 8: Shelf Inserts

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.7 Shelf inserts Normal distribution of shelf inserts The support for the shelf carriers (1) is the same for all shelf First shelf carrier from bottom: 35.6 cm carriers: LIGNOpaI [Figure 1], chip-plywood [Figure 1] or metal Further shelf carriers at center distance: 37.5 cm (= 1 HU)

  • Page 9: Installing Swing Doors, Closing Bracket, Strikers

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.8 Installing swing doors, closing bracket, Fixing the closing bracket [Figure 3] Assembled cabinets: The closing bracket is installed ex works. strikers Disassembled cabinets: The closing bracket is located in the ac- cessories pack.

  • Page 10: Aligning Swing Doors

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.9 Aligning swing doors [Figure 2] Opening angle up to 270°. [Figure 1] Opening angle up to 110°. In the case of visible hinges: Release the screws (4). and remove the protective caps.

  • Page 11: Damping Of Swing Doors

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.10 Damping of swing doors Damping off: Press slider inwards [Figure 2] Damper folds in the next time the door is closed [Figure 3]. In the case of concealed hinges [Figure 1]: Damping can be acti- vated or deactivated at each hinge as required.

  • Page 12: Bow Handles, Lock Cases, Closing Olive

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.11 Bow handles, lock cases, closing olive Caution! Note that there is a left-hand and a right-hand cyl- Bow handles: Screw through the predrilled openings from the in- inder! The lug (8) of the left-hand closing olive is copper-col- side.

  • Page 13: Adjusting The Lock

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.12 Adjusting the lock 2.13 Combination locks Adjusting the locking direction [Figure 1]. Combination locks are opened without the need for a key using a 4-digit code.

  • Page 14: 2Combination Locks With Free Code

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 2.13.2 Combination locks with free code Emergency opening with code reset [Figure 2]: Closing and opening the combination lock [Figure 1]: Thanks to Important! You can obtain the emergency key from the the code clearance technology, all the digits display "0"...

  • Page 15: Attachments And Accessories

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 3. Attachments and accessories. 3.3 Mount the top cover [Figure 3] 3.1 Attaching the finished back Important! Cabinets with steel base: Side cover may also [Figure 1] only be the height of the body.

  • Page 16: Wall And Ceiling Closure

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 4. Wall and ceiling closure. 4.2 Front-flush wall closure without and with add-on cabinets 4.1 Wall closure flush with body Cover width 30 to 199 mm [Figure 2+5]...

  • Page 17: Ceiling Closure Without Joins - Flush With Body

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 4.3 Ceiling closure without joins – flush 4.4 Front-flush ceiling closure with body Cover height 30 to 199 mm [Figure 2+5] Cover height 200 to 400 mm [Figure 2+6]...

  • Page 18: Front-Flush Ceiling Closure Without/With Add-On Cabinets And Join >400Mm

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 4.5 Front-flush ceiling closure without/with Fix pre-assembled ceiling closer element to the top of the cabinet using 4.5x35mm Spax screws. Then apply dots of glue or silicon to add-on cabinets and join >...

  • Page 19: Corner Top And Corner Strip

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 5. Corner top and corner strip. 6. Cabinet wall with add-on cabinets. Corner strip [Figure 1]: Screw on corner strips (1) using 4x50 mm 6.1 Shelf and swing door add-ons Spax screws.

  • Page 20: Cabinet Walls With Sliding Door And Add-On Horizontal Roller Shutter

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 6.2 Cabinet walls with sliding door and With pull-out drawer [Figures 3 and 4]: Align the lower cabinet and guides correctly with the pull-out drawer placed on them.

  • Page 21: Suspended Cabinets

    Screw position Left / Right [Figure 3]. assembly is not carried out correctly. VS Vereinigte Spezialmöbel- Screw the first screw between the distress and the outer edge. fabriken GmbH & Co.KG assumes no liability for incorrect or im- Fasten the second screw approximately 8 cm from the first screw.

  • Page 22: Cabinet Wall With Base/Add-On Cabinets

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 8. Cabinet wall with base/add-on cabinets 9. Fixing element for cabinet ladder [Figure 1]. [Figure 2]. Step 1: Position the add-on cabinets with base on the cabinets.

  • Page 23: Fittings

    Caution! If pull-outs are installed, always install tilt protec- tion (1) [Figure 1]. 10.1Hanging frames and wide drawers See separate assembly instructions (MA) issued by VS, Part no. 70-381 Serie 800 hanging frames and wide drawers. Important! In the case of subsequent installation, take ac- count of the drilling dimensions and/or the customer's wishes [Figure 2].

  • Page 24: Concealed Drawers

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 10.2 Concealed drawers [Figures 1 and 2] Caution! The screw connection position depends on the type of door. Guide rails (1) are secured in the row of holes using spacers (2), (3).

  • Page 25: Compartments And Special Shelves

    Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 11. Compartments and special shelves. 11.2Form compartments [Figure 2] 11.1 Mailboxes See separate assembly instructions (MA) issued by VS, Part no. 70-408 Serie 800 form compartments. Mailboxes [Figure 1] are assembled ex works.

  • Page 26: Magazine Shelves

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 11.3Magazine shelves 11.4Pull-out shelf inserts The accessories pack always contains threaded shelf carriers [Fig- Pull-out shelf inserts with roller guides [Figure 2]. ure 3]. Insert (15mm or 5.5mm) the support in the shelf holes in the side of Caution! Magazine shelves are inclined at an angle of ap- the cabinets.

  • Page 27: Wardrobes

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 12. Wardrobes. Installation or modification: [Figure 1] and [Figure 5] show the status at the time of delivery or shipment. For installation in Serie 800 swing door and shelving cabinets. No liability will be assumed for any use other than that intended.

  • Page 28: Other Cabinet Types

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 13. Other cabinet types. 13.1 Drawer cabinets Drawer cabinets are usually supplied assembled. The lateral align- ment and height of the fronts of the drawer cabinets can be ad- justed if required.

  • Page 29: Sliding Door Cabinets

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 “3-Punkt-Führung” “4-Punkt-Führung” 13.2 Sliding door cabinets Sliding door cabinets are usually supplied assembled. Can be ad- justed if required: Doors and stoppers. Important! FIf necessary, consult the separate installation instructions issued by EKU.

  • Page 30: Magazine Cabinet

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 13.3 Magazine cabinet Replacing the flaps [Figure 2]: The flaps are inserted in the lateral guide grooves (1) Magazine cabinets [Figure 1] are usually supplied assembled. using spring-loaded dowels (2).

  • Page 31: Roller-Shutter Cabinets

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 44567 44566 44569 44568 13.4 Roller-shutter cabinets 13.5 Kitchenettes and cabinets with washbasins Roller-shutter cabinets [Figure 1] are usually supplied assembled. These models [Figure 2] are pre-assembled ex works.

  • Page 32: Locker Cabinets

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 13.6 Locker cabinets Exception: In the case of single-standing 3OH wardrobes with wardrobe, these wardrobes should also be attached to the wall. Locker cabinets [Figure 1] are usually delivered assembled. If sev- eral locker cabinets are in a row, connect (screw) locker cabinets For details see item 14.1 Anti-tilt device for fixed cupboards/shelves.

  • Page 33: Special Fittings

    Mail: vs@vs-moebel.de · Web: www.vs.de Phone: + 49 93 41 88 - 0 ID: 70-203_MA_EN - V15 - 22.01.2025 Mounting bracket..on the cabinet ...onthecabinet (concealed) ...on the shelf 14. Special fittings. No fittings for floor fixing [Figure 1] are provided in the accessories pack. Depending on the properties of the floor or the underfloor material, the appropriate screws and fittings must be obtained 14.1Tilt protection...

  • Page 34: Concluding Tasks

    Other: Any difficulties or problems encountered must be carefully applies to small lateral or ceiling joins. Connections and base are documented and sent to the Customer Service at VS. only sealed if the customer requests this. Important! Document any additional work, such as the...
