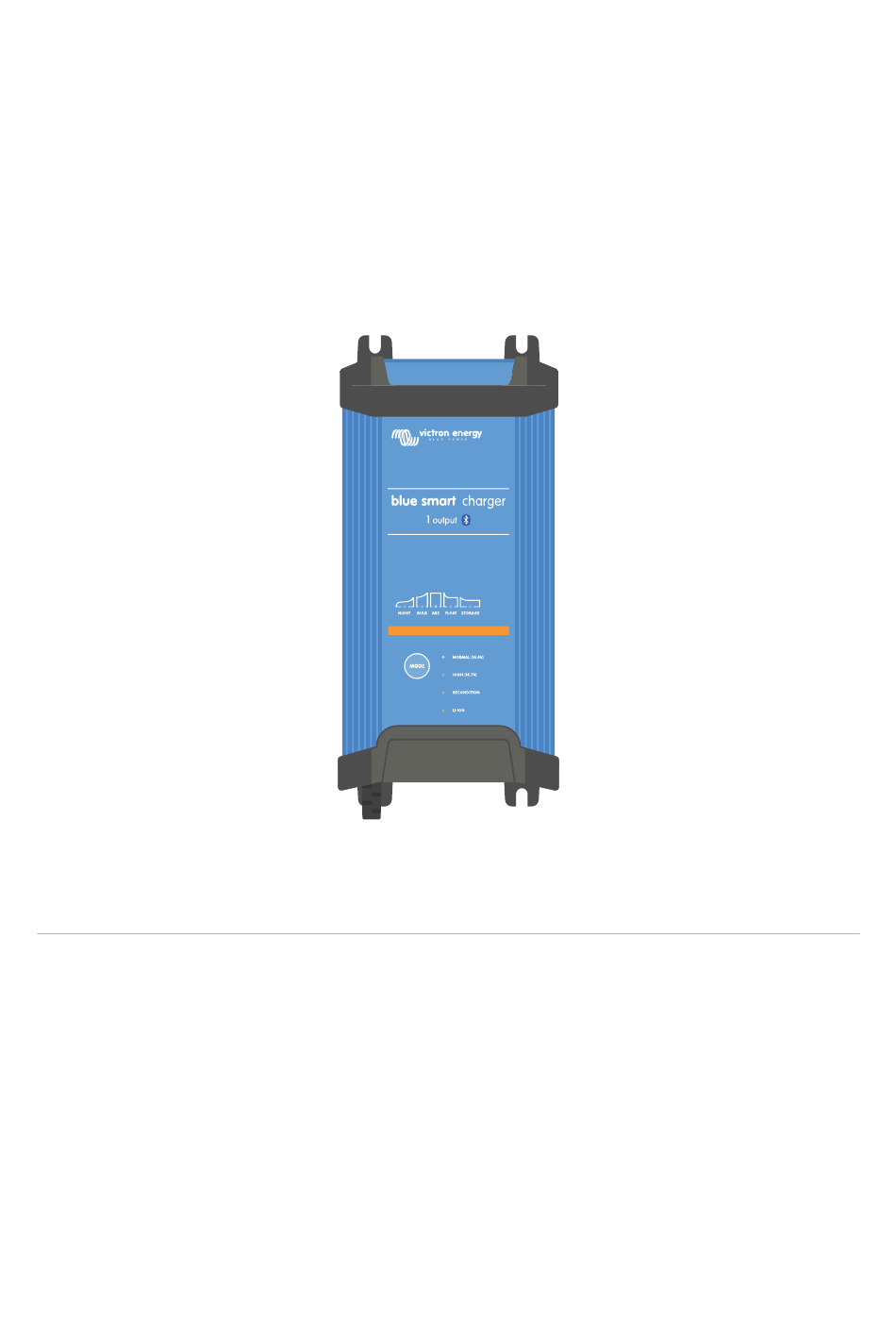

- Page 1 Blue Smart IP22 Charger 12/15, 12/20, 12/30, 24/8, 24/12, 24/16 | (1) & (3) Output | 120V Rev. 04 - 04/2025...
- Page 2 This manual is also available in HTML5.
-
Page 3: Table Of Contents
Blue Smart IP22 Charger Table of Contents Safety instructions ......................... 5 UL compliance supplement - IMPORTANT SAFETY INSTRUCTIONS ......7 Quick start guide ........................10 Features ..........................12 Operation ..........................14 Charge algorithm ......................14 Charge modes ......................16 Charge voltage ....................16 Recondition mode .................... - Page 4 Blue Smart IP22 Charger Advanced settings ....................... 82 Expert mode settings ....................86 VE.Smart Networking ....................90 Voltage, temperature and current sense ..............90 Synchronised charging ..................95 Power supply mode ....................100 Technical specifications ...................... 102 Warranty ........................... 103 Compliance statement .......................
-
Page 5: Safety Instructions
Blue Smart IP22 Charger Safety instructions DANGER WARNING: CAREFULLY READ AND FOLLOW ALL SAFETY INSTRUCTIONS • Carefully read the manual before the charger is installed and operated; retain the manual in a safe place for future reference. • The charger must not be installed or operated by anyone who lacks the appropriate knowledge or competence required for safe installation and/or usage. - Page 6 Blue Smart IP22 Charger AC connection to the mains supply must be in accordance with local electrical regulations. The charger must be plugged into an earthed AC mains power outlet. Do not operate the charger if the AC power cable is damaged, contact a service agent.
-
Page 7: Ul Compliance Supplement - Important Safety Instructions
Blue Smart Charger models. Do not expose charger to rain or snow. Use of an attachment not recommended or sold by Victron Energy may result in a risk of fire, electric shock, or injury to persons. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnect- ing charger. - Page 8 Blue Smart IP22 Charger 12. PREPARING TO CHARGE If it is necessary to remove the battery from a vehicle prior to charging, always remove the grounded terminal from the battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc.
- Page 9 Blue Smart IP22 Charger 16. FOLLOW THESE STEPS WHEN THE BATTERY IS OUTSIDE OF THE VEHICLE. A SPARK NEAR THE BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR THE BATTERY: Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually has a larger diameter than the NEGATIVE (NEG, N, –) post.
-
Page 10: Quick Start Guide
Blue Smart IP22 Charger Quick start guide The Blue Smart IP22 Charger range is designed to be permanently mounted using the mounting tabs on the base of the charger. Identify/provide a suitable and safe location for the charger on a non-flammable substrate, with at least 10cm of clearance surrounding the charger and good natural airflow/ventilation;... - Page 11 Blue Smart IP22 Charger Select the charge mode and charge current limit most appropriate for the battery type and capacity. To setup using the charger: Press (and release) the MODE button on the Blue Smart IP22 Charger to cycle through and select the most appropriate integrated charge mode (Normal, Normal + Recondition, High, High + Recondition or Li-ion).
-
Page 12: Features
Blue Smart IP22 Charger Features Bluetooth setup and monitoring (Using VictronConnect) Equipped with integrated Bluetooth; enabling quick and simple setup, advanced configuration, comprehensive monitoring and firmware updates via the VictronConnect app and a Bluetooth enabled device (mobile phone or tablet). VE.Smart Network compatible VE.Smart Networking capability allows multiple chargers to operate in unison with synchronised charging, and receive accurate battery voltage (Volt-sense), charge current (Current-sense) and... -
Page 13: Recovery Function
Blue Smart IP22 Charger Storage stage An additional stage to extend battery life whilst the battery is unused and on continuous charge. Recondition stage An optional stage that can partially recover/reverse lead acid battery degradation due to sulfation; typically caused by inadequate charging or if the battery is left in a deeply discharged state. M. -
Page 14: Operation
Blue Smart IP22 Charger Operation Charge algorithm The Blue Smart IP22 Charger range are intelligent multi-stage battery chargers, specifically engi- neered to optimise each recharge cycle and charge maintenance over extended periods. The multi-stage charge algorithm includes the individual charge stages described below: Bulk The battery is charged at maximum charge current until the voltage increases to the configured absorption voltage. - Page 15 Blue Smart IP22 Charger Storage The battery voltage is maintained at the configured storage voltage, which is slightly reduced compared to the float voltage to minimise gassing and extend battery life whilst the battery is unused and on continuous charge. Repeated absorption To refresh the battery and prevent slow self-discharge while in storage stage over an extended period, a 1 hour absorption charge will automatically occur every 7 days (or as configured).
-
Page 16: Charge Modes
Blue Smart IP22 Charger Charge modes There are 3 integrated charge modes (Normal, High and Li-Ion), as well as an optional Recondition stage that can be included (except for Li-ion mode). The integrated charge modes combined with adaptive charge logic are well suited for most common battery types;... -
Page 17: Recondition Mode
Blue Smart IP22 Charger Recondition mode Recondition is an optional charge stage for lead acid batteries and not recommended for regular/cyclic use; use only if required, as unnecessary or overuse will reduce battery life due to excessive gassing. When recondition mode is enabled the recondition stage is included within the charge cycle (after the absorption stage is complete) and the battery voltage will be increased to an elevated level;... - Page 18 Blue Smart IP22 Charger When night mode is enabled the NIGHT LED will be illuminated. Night mode can be enabled and disabled via the MODE button on the charger or a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app; refer to the 'Setup > Setup using the charger' or 'Setup >...
-
Page 19: Temperature Compensation
Blue Smart IP22 Charger Temperature compensation The Blue Smart IP22 Charger range feature temperature compensation, which will automatically optimise the nominal/configured charge voltage based on ambient temperature (except for Li-ion mode or if manually disabled). The optimal charge voltage of a lead-acid battery varies inversely with battery temperature; automatic temperature-based charge voltage compensation avoids the need for special charge voltage settings in hot or cold environments. - Page 20 Blue Smart IP22 Charger NOTICE The temperature compensation coefficient is specified in mV/°C and applies to the entire battery/battery bank (not per battery cell). If the battery manufacturer specifies a temperature compensation coefficient per cell, it will need to be multiplied by the total number of cells in series (there are typically 6 cells in series within a 12V lead-acid based battery).
-
Page 21: Ve.smart Networking
Blue Smart IP22 Charger VE.Smart networking The Blue Smart IP22 Charger range feature VE.Smart networking capability, which enables Blue- tooth communication between compatible Victron products to optimise charger operation and battery performance/life. This powerful feature enables chargers to receive accurate battery voltage (Volt-sense), charge current (Current-sense) and battery temperature (Temp-sense) data from a compatible battery monitor (such as a BMV, SmartShunt, Smart Battery Sense or VE.Bus Smart Dongle) and/or multiple chargers to operate in unison with synchronised charging to further enhance the charge cycle. -
Page 22: Temperature Sense
Blue Smart IP22 Charger This enables the battery to be charged with the exact voltage as configured in the charger, instead of a lower voltage due to voltage drop in the cabling and connections. Voltage drop is proportional to the charge current and cabling/connection resistance (V=IxR), so voltage drop will vary during a charge cycle and can be quite significant when charging at higher charge currents through cabling and connections with higher than optimal resistance;... - Page 23 Blue Smart IP22 Charger if communication with the initial master (that has a higher priority) is re-established. The master charger can not be manually selected. Synchronised charging does not regulate or equalise the current output of multiple chargers, each charger still has total control over it's own current output. Accordingly, current output variation between multiple chargers is normal (primarily dependent on cable resistance and charging conditions) and a total system current output limit cannot be configured.
-
Page 24: Commencing A New Charge Cycle
Blue Smart IP22 Charger Commencing a new charge cycle A new charge cycle will commence when: The configured Re-bulk condition is satisfied (typically due to a large load): Re-bulk method set to Current and Re-bulk current is disabled (default configuration): The current output must be maintained at the maximum current output for four seconds. -
Page 25: Estimating Charge Time
Blue Smart IP22 Charger Estimating charge time The time required to recharge a battery to 100% SOC (state of charge) is dependant on the battery ca- pacity, the depth of discharge, the charge current and the battery type/chemistry, which has a significant effect on the charge characteristics. -
Page 26: Multiple Isolated Outputs
Blue Smart IP22 Charger Multiple isolated outputs The Blue Smart IP22 Charger 3 output models include an integrated FET battery isolator and multiple isolated outputs. Multiple isolated outputs make it possible for a single charger to charge multiple individual batteries that are at a different voltage/SOC level without current flow between the batteries, and with the charge current intrinsically distributed between all batteries depending on their voltage/SOC level and capacity. -
Page 27: Installation
Blue Smart IP22 Charger Installation Mounting The Blue Smart IP22 Charger range is designed to be permanently mounted using the mounting tabs on the base of the charger. Before mounting, the following aspects should be considered to identify/provide a suitable and safe location: Install the charger in a location with good natural airflow/ventilation;... - Page 28 Blue Smart IP22 Charger Refer to the drawing below for mounting dimensions:...
-
Page 29: Wiring
Blue Smart IP22 Charger Wiring Connect suitable DC power cabling to the Blue Smart IP22 Chargers BATTERY terminals. Remove the terminal cover by gently applying outward pressure on the cover upper face. Prepare flexible multi stranded copper DC power cable with sufficient cross sectional area; refer to the 'Installation >... - Page 30 Blue Smart IP22 Charger Connect the DC power cabling to the battery/batteries or DC system distribution bus - follow the instructions relevant to the installation type. For hardwired installations, or when charging a battery outside of a vehicle/installation: Ensure that the DC system is shut down (all DC loads and charge sources off/isolated) prior to disconnection of any existing battery / DC system distribution bus cabling and connection of the charger to the battery terminals / DC system distribution bus.
-
Page 31: Dc Power Cable
Blue Smart IP22 Charger DC power cable The Blue Smart IP22 Charger range features rising clamp screw terminals for connection to DC power cabling, which is not included and needs to be supplied by the installer. To ensure optimal and reliable operation, it is important to select high quality flexible DC power cabling that is suitable for the specific charger model and the overall installation;... - Page 32 Blue Smart IP22 Charger Conductor The conductor material and specifications effect the resistance of a cable per unit length (effecting current carrying capacity), the resistance and heat generated at terminations, and overall cable flexibility. Conductor material and configuration Use high quality flexible DC power cabling that consists of fine multi-stranded oxygen free copper conductors.
- Page 33 Blue Smart IP22 Charger Refer to the table below for the minimum DC power cable size/gauge (cross sectional area) recommen- ded for each Blue Smart IP22 Charger model, and the installation specific DC power cable length: Minimum cable size/gauge Charger Max cur- model rent...
-
Page 34: Overcurrent Protection
Blue Smart IP22 Charger Overcurrent protection To ensure reliable and safe operation, it is recommended to install a suitably rated inline fuse or circuit breaker within the DC power cabling between the Blue Smart IP22 Charger and battery/batteries, loca- ted as close as practical to the battery/batteries; this is particularly important for hardwired installations. The primary purpose of an inline fuse or circuit breaker located close to the battery/batteries (energy source) is to protect the cabling and system in the event of a overcurrent fault, such as a short circuit in the DC power cabling;... - Page 35 Blue Smart IP22 Charger NOTICE The fuse / circuit breaker rating recommendations above are based on a 75% maxi- mum normal operating current limit for the minimum fuse / circuit breaker rating and the maximum current capability of the related DC power cabling size/gauge for the maximum fuse / circuit breaker rating;...
-
Page 36: Schematics
Blue Smart IP22 Charger Schematics Basic install Single (1) output models - Basic hardwired install Refer to the wiring schematic below to connect a single (1) output Blue Smart IP22 Charger to a single battery / battery bank: Description AC power supply (mains power grid, generator or inverter) Blue Smart IP22 Charger (1 output model) Fuse / circuit breaker (locate as close as practical to battery) Battery / battery bank... -
Page 37: Key Description
Blue Smart IP22 Charger Multiple (3) output models - Basic hardwired install Refer to the wiring schematic below to connect a multiple (3) output Blue Smart IP22 Charger to multiple independent batteries / battery banks: Description AC power supply (mains power grid, generator or inverter) Blue Smart IP22 Charger (3 output model) DC negative busbar Fuses / circuit breakers x3 (locate as close as practical to batteries) -
Page 38: System With Smart Battery Sense
Blue Smart IP22 Charger System with Smart Battery Sense Single (1) output models - System with Smart Battery Sense Refer to the wiring schematic below to connect a Blue Smart IP22 Charger (1 output model) to a single battery / battery bank, with a Smart Battery Sense in the system: Description AC power supply (mains power grid, generator or inverter) Blue Smart IP22 Charger (1 output model) - Page 39 Blue Smart IP22 Charger Multiple (3) output models - System with Smart Battery Sense Refer to the wiring schematic below to connect a Blue Smart IP22 Charger (3 output model) to multiple independent batteries / battery banks, with a Smart Battery Sense in the system: Description AC power supply (mains power grid, generator or inverter) Blue Smart IP22 Charger (3 output model)
-
Page 40: System With Smartshunt
Blue Smart IP22 Charger System with SmartShunt Single (1) output models - System with SmartShunt Refer to the wiring schematic below to connect a Blue Smart IP22 Charger (1 output model) to a single battery / battery bank, with a SmartShunt or BMV battery monitor in the system: Description AC power supply (mains power grid, generator or inverter) Blue Smart IP22 Charger (1 output model) - Page 41 Blue Smart IP22 Charger Multiple (3) output models - System with SmartShunt Refer to the wiring schematic below to connect a Blue Smart IP22 Charger (3 output model) to multiple independent batteries / battery banks, with a SmartShunt or BMV battery monitor in the system: Description AC power supply (mains power grid, generator or inverter) Blue Smart IP22 Charger (3 output model)
-
Page 42: System With Multiple Chargers
Blue Smart IP22 Charger System with multiple chargers Multiple chargers in parallel (with optional SmartShunt) Refer to the wiring schematic below to connect multiple Blue Smart IP22 Chargers in parallel to a single battery / battery bank, with an optional SmartShunt or BMV battery monitor in the system: Description AC power supply x2 (mains power grid, generator or inverter) Blue Smart IP22 Chargers x2... - Page 43 Blue Smart IP22 Charger Bluetooth connectivity and communication between devices; refer to the 'Advanced Configuration > VE.Smart Networking’ section for more information.
-
Page 44: Setup
Blue Smart IP22 Charger Setup Setup using the charger The charge mode and charge current limit most appropriate for the battery type and capacity can be selected using the MODE button on the Blue Smart IP22 Charger. To setup using the charger: Connect the Blue Smart IP22 Charger AC power cable to a mains power outlet;... - Page 45 Blue Smart IP22 Charger NOTICE To ensure proper charging, battery longevity and safe operation it is important to select a charge mode appropriate for the battery type and capacity being charged; refer to the 'Operation > Charge modes' section and the battery manufacturer’s recommendations for more information.
-
Page 46: Setup Using Victronconnect
- Apple App Store C. Windows and other - Victron Energy website > Downloads > Software Enable Bluetooth on the Bluetooth enabled device (mobile phone or tablet) if not already enabled, but do not attempt to pair with the Blue Smart IP22 Charger. - Page 47 Blue Smart IP22 Charger Connect the Blue Smart IP22 Charger AC power cable to a mains power outlet; after a short delay the LEDs indicating the current charge mode and charge state will illuminate. Open the VictronConnect app and locate the Blue Smart IP22 Charger in the Device list Local page, under Other devices.
- Page 48 Blue Smart IP22 Charger VictronConnect will attempt to establish a Bluetooth connection with the Blue Smart IP22 Charg- er and display the connection progress in the Connecting pop-up dialog box. When attempting to establish a Bluetooth connection with a new/unpaired device, the Bluetooth pairing request pop-up dialog box will appear after a short delay;...
- Page 49 Blue Smart IP22 Charger 10. If the maximum rated charge current is excessive, enable low current mode (charge current limited to 50% of the maximum rated charge current). To enable (or disable) low current mode select the required option from the Charge current menu; when enabled the NIGHT LED will blink. Alternatively night mode can be enabled, which temporarily activates low current mode for a period of 8 hours (typically overnight to eliminate fan noise).
-
Page 50: Bluetooth
Blue Smart IP22 Charger Bluetooth Changing the PIN code To prevent unauthorised Bluetooth connections, it is highly recommended to change the default PIN code to a unique PIN code that that offers a greater level of security. The Bluetooth PIN code can be changed using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. - Page 51 Blue Smart IP22 Charger Select CHANGE in the Pin code field to open the Change PIN code pop-up dialog box. Enter the current PIN code and the desired new PIN code (twice), then select OK; avoid using a simple PIN code that is easy for someone else to guess, such as 123456.
- Page 52 Blue Smart IP22 Charger After a short delay a pop-up dialog box will appear confirming that the Bluetooth PIN code has been successfully changed. The Bluetooth PIN code has now been changed to the new PIN code. NOTICE During this procedure: The Bluetooth PIN code is changed to the new PIN code Bluetooth pairing information is not cleared Accordingly Bluetooth pairing with the device (mobile phone or tablet) used to change...
-
Page 53: Resetting The Pin Code
Blue Smart IP22 Charger Resetting the PIN code If the PIN code is forgotten/lost or does not work, it can be reset to 000000 (not the default PIN code stated on the label) using the MODE button on the charger or a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. - Page 54 Blue Smart IP22 Charger Using a Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app and locate the Blue Smart IP22 Charger in the Device list Local page. Select the Device options icon (three vertical dots on the right side of the description) to access the dropdown menu.
- Page 55 Blue Smart IP22 Charger A pop-up dialog box with the text "Busy" will be displayed while the Bluetooth PIN code is being reset. After a short delay a pop-up dialog box will appear confirming that the Bluetooth PIN code has been successfully reset;...
- Page 56 Blue Smart IP22 Charger NOTICE During this procedure: The Bluetooth PIN code is reset to 000000 (not the default PIN code stated on the label) Bluetooth pairing information is not cleared Accordingly Bluetooth pairing with the device (mobile phone or tablet) used to reset the PIN code is unaffected, however it is necessary to unpair any other devices (mobile phones or tablets) previously paired with the Blue Smart IP22 Charger and establish a new Bluetooth pairing.
-
Page 57: Disabling Bluetooth
Blue Smart IP22 Charger Disabling Bluetooth If required, Bluetooth communication can be totally disabled using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. Typically, there is no need to disable Bluetooth since unauthorised access is protected with a PIN code, but certain situations may warrant it for an even higher level of security or in highly specialised installations where the Bluetooth radio frequency is undesirable. - Page 58 Blue Smart IP22 Charger Select DISABLE in the Bluetooth field to open the Disable Bluetooth pop-up dialog box. Read the warning message, then tick the checkbox and select OK to proceed. End the current Bluetooth session by exiting into the VictronConnect Device list Local page, a final pop-up dialog box will appear when attempting to exit.
-
Page 59: Re-Enabling Bluetooth
Blue Smart IP22 Charger Re-enabling Bluetooth Bluetooth communication can be re-enabled using the MODE button on the charger. To re-enable Bluetooth: Connect the Blue Smart IP22 Charger AC power cable to a mains power outlet; after a short delay the LEDs indicating the current charge mode and charge state will illuminate. Depress and hold down the MODE button on the Blue Smart IP22 Charger for 10 seconds. -
Page 60: Updating Firmware
Blue Smart IP22 Charger Updating firmware Automated firmware update The Blue Smart IP22 Charger firmware can be automatically updated using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. The latest product firmware is embedded within the VictronConnect app and loaded to the Bluetooth enabled device (mobile phone or tablet) when the VictronConnect app is installed/updated, according- ly the VictronConnect app will include the latest product Firmware as as long as it is kept up to date, and no internet connection is required during the firmware update process. - Page 61 Blue Smart IP22 Charger Refer to the dialog box at the top of the Settings page to determine the level/urgency of the firmware update available, then select UPDATE to access the Firmware update page. Refer to the current and new firmware versions stated at the top of the Firmware update page, then select Update to proceed.
- Page 62 Blue Smart IP22 Charger The firmware update will commence and a progress bar will be displayed within the Firmware update page. Ensure that the Bluetooth enabled device (mobile phone or tablet) remains close to the Blue Smart IP22 Charger until the firmware update is complete and avoid using the device during this period; be patient as the firmware update may take several minutes to complete.
- Page 63 Blue Smart IP22 Charger Confirmation that the firmware has been successfully updated and the new firmware version will be provided within the Firmware update page when the firmware update is complete; select Continue to exit into the VictronConnect Device list Local page. The firmware has now been updated.
-
Page 64: Manual Firmware Update
Blue Smart IP22 Charger Manual firmware update Updating firmware manually is typically not required but there are some rare circumstances when it may be necessary, such as: Updating to a new firmware version that has just been released and is available for download via the Victron Professional Portal, but not included in the VictronConnect app version currently... - Page 65 Blue Smart IP22 Charger Using the same Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app (if not already open) and locate the Blue Smart IP22 Charger in the Device list Local page, then connect to the device (the default PIN code is stated on a label located on the back of the charger, or try 000000 if there is no label).
- Page 66 Blue Smart IP22 Charger Select the Blue Smart IP22 Charger firmware file that has just been manually loaded from the the Firmware library page (if multiple firmware versions have been manually loaded, ensure the correct version is selected) to access the Firmware update page. 10.
- Page 67 Blue Smart IP22 Charger 12. The firmware update will commence and a progress bar will be displayed within the Firmware update page. Ensure that the Bluetooth enabled device (mobile phone or tablet) remains close to the Blue Smart IP22 Charger until the firmware update is complete and avoid using the device during this period; be patient as the firmware update may take several minutes to complete.
- Page 68 Blue Smart IP22 Charger 13. If the firmware update does fail for some reason, a notification with the failure reason will be provi- ded within the Firmware update page; select Continue to exit into the VictronConnect Device list Local page and re-attempt the firmware update.
- Page 69 Blue Smart IP22 Charger 14. Confirmation that the firmware has been successfully updated and the new firmware version will be provided within the Firmware update page when the firmware update is complete; select Continue to exit into the VictronConnect Device list Local page. 15.
-
Page 70: Reset To Defaults
Blue Smart IP22 Charger Reset to defaults If required, all Blue Smart IP22 Charger settings can be reset/restored to factory defaults using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. Note this operation does not reset any Bluetooth related settings, such as the Bluetooth PIN code or pairing information. - Page 71 Blue Smart IP22 Charger Read the warning message, then select Yes to proceed. All settings have now been reset/restored to factory defaults.
-
Page 72: Monitoring
Blue Smart IP22 Charger Monitoring LED indications Operation states The LEDs on the Blue Smart IP22 Charger unit can be referenced to determine the current charge state and other operational information. Refer to the LED indications in the table below: Operation state NIGHT BULK... -
Page 73: Victronconnect
Blue Smart IP22 Charger VictronConnect The Blue Smart IP22 Charger operation can be monitored in real-time and/or after completion of a charge cycle using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app; this includes live data such as charger output voltage, output current, the current charge stage, charge cycle statistics, warnings, alarms and errors. -
Page 74: Graph Screen
Blue Smart IP22 Charger Graph screen The Graph screen provides an easy to understand graphical representation of each charge state with respect to typical battery voltage and charge current. The active charge stage is also highlighted and stated, along with a brief explanation. -
Page 75: History Screen
Blue Smart IP22 Charger History screen The History screen is a very powerful reference as it contains historical usage data over the charger lifetime and detailed statistics for the last 40 charge cycles (even if the charge cycle is only partially completed). - Page 76 Blue Smart IP22 Charger Charge cycle statistics Cycle overview Expandable bar chart showing the time spent in each charge stage and the charge capacity provided (in Ah) during each charge stage Status Confirms if the charge cycle was successfully completed or if it was ended early/interrupted, including the reason/cause C.
- Page 77 Blue Smart IP22 Charger The number of times the charger has recharged a deeply discharged battery over the lifetime of the charger...
-
Page 78: Instant Readout
Blue Smart IP22 Charger Instant readout The Blue Smart IP22 Charger range features instant readout functionality (requires firmware v3.61 or above), which enables the essential data and notifications from multiple compatible devices to be monitored directly in the VictronConnect device list, without the need to establish a full Bluetooth connection with the device. - Page 79 Blue Smart IP22 Charger After a short delay the Instant readout pop-up dialog box will appear: When the Instant readout pop-up dialog box appears, select Enable now to enable instant readout functionality; skip to step 9. If the Instant readout pop-up dialog box does not appear, the automated prompt may have been disabled or the charger firmware does not support instant readout and needs to be updated (instant readout requires firmware v3.61 or above);...
- Page 80 Blue Smart IP22 Charger Confirm that the charger firmware version supports instant readout functionality: If the current firmware version is v3.61 or above continue to step 8. If the current firmware version is below v3.61, update to the latest firmware version and then repeat the entire process;...
- Page 81 Blue Smart IP22 Charger 10. End the current Bluetooth session by exiting into the VictronConnect Device list Local page. 11. Instant readout has now been enabled; data descriptions and additional data (if available) can be displayed or hidden by toggling the opposing arrows icon (right of the instant data).
-
Page 82: Advanced Configuration
Blue Smart IP22 Charger Advanced Configuration Advanced settings In specific use cases where the integrated charge modes are not suitable/ideal for the battery type being charged, or the battery manufacturer recommends specific charge parameters and fine tuning is desired, advanced configuration is possible using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. - Page 83 Blue Smart IP22 Charger Using a Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app and locate the Blue Smart IP22 Charger in the Device list Local page, then connect to the device (the default PIN code is stated on a label located on the back of the charger, or try 000000 if there is no label).
- Page 84 Blue Smart IP22 Charger Select User defined from the Battery preset dropdown menu. User defined configuration will now be enabled. Configure the advanced settings as required per battery manufacturers recommendations. The advanced settings (with expert mode disabled) include: Battery preset The Battery preset dropdown allows selection from the following options: Built-in preset Selection of a standard integrated pre-set (same as the general settings menu)
- Page 85 Blue Smart IP22 Charger Li-ion batteries). The temperature compensation coefficient is specified in mV/°C and applies to the entire battery/battery bank (not per battery cell). Battery limits Low temperature cut-off The low temperature cut-off setting disables charging in low temperature conditions to protect Lithium batteries from damage;...
-
Page 86: Expert Mode Settings
Blue Smart IP22 Charger Expert mode settings Expert mode expands the advanced settings menu even further, to include more specialised expert level configuration settings. - Page 87 Blue Smart IP22 Charger...
- Page 88 Blue Smart IP22 Charger To access the expert mode settings: Open the Advanced setting page and enable User defined configuration - see the 'Advanced configuration > Advanced settings' section for instructions. Toggle the Expert mode switch on to enable additional Expert mode settings (extension of the Advanced settings menu).
- Page 89 Blue Smart IP22 Charger Note that even when the re-bulk setting is disabled, re-bulk will still occur if the charge current is maintained at the maximum charge current for four seconds while the charger is in float or storage stage. C.
-
Page 90: Ve.smart Networking
Blue Smart IP22 Charger VE.Smart Networking The Blue Smart IP22 Charger range feature VE.Smart networking capability, which enables Blue- tooth communication between compatible Victron products to optimise charger operation and battery performance/life; refer to the 'Operation > VE.Smart Networking' section for more information. VE.Smart networking needs to be enabled and configured using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. - Page 91 Blue Smart IP22 Charger After a short delay a pop-up dialog box will appear confirming that the network has been success- fully configured; select OK to close the dialog box. The VE.Smart network configuration details are displayed within the the VE.Smart networking page.
- Page 92 Blue Smart IP22 Charger 10. Using a Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app and locate the Blue Smart IP22 Charger (or other VE.Smart networking compatible charger) in the Device list Local page, then connect to the device (the default PIN code is stated on a label located on the back of the charger, or try 000000 if there is no label).
- Page 93 Blue Smart IP22 Charger 15. After a short delay a pop-up dialog box will appear confirming that the network has been success- fully configured; select OK to close the dialog box. 16. The VE.Smart network configuration details are displayed within the the VE.Smart networking page.
- Page 94 Blue Smart IP22 Charger 18. VE.Smart networking has now been configured; when VE.Smart networking is enabled: The VE.Smart network symbol will appear in the top right corner of the Status screen (of all devices within the VE.Smart network). The active charge state LED on the charger (BULK, ABS, FLOAT and STORAGE) will blink (turn off) momentarily every 4 seconds.
-
Page 95: Synchronised Charging
Blue Smart IP22 Charger Synchronised charging To setup a VE.Smart Network with Synchronised charging: Connect all Blue Smart IP22 Charger AC power cables to a mains power outlet; after a short delay the LEDs indicating the current charge mode and charge state will illuminate. Using a Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app and locate the first Blue Smart IP22 Charger in the Device list Local page, then connect to the device the default PIN code is stated on a label located on the back of the charger, or try 000000 if there is... - Page 96 Blue Smart IP22 Charger Enter a name to identify the VE.Smart network and select OK. After a short delay a pop-up dialog box will appear confirming that the network has been success- fully configured; select OK to close the dialog box. The VE.Smart network configuration details are displayed within the the VE.Smart networking page.
- Page 97 Blue Smart IP22 Charger 10. Using a Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app and lo- cate the subsequent Blue Smart IP22 Charger (or other VE.Smart networking compatible charger) in the Device list Local page, then connect to the device (the default PIN code is stated on a label located on the back of the charger, or try 000000 if there is no label).
- Page 98 Blue Smart IP22 Charger 15. After a short delay a pop-up dialog box will appear confirming that the network has been success- fully configured; select OK to close the dialog box. 16. The VE.Smart network configuration details are displayed within the the VE.Smart networking page.
- Page 99 Blue Smart IP22 Charger NOTICE Multiple chargers in a common VE.Smart network must all have the same charge settings, since the master can change dynamically.
-
Page 100: Power Supply Mode
Blue Smart IP22 Charger Power supply mode The Blue Smart IP22 Charger range is also suitable for use as a DC power supply, to directly power loads with or without a battery connected. When the charger is used specifically as a DC power supply it is recommended to activate Power supply mode, which will disable the internal charge logic and provide a constant (configurable) DC voltage to the loads. - Page 101 Blue Smart IP22 Charger If required, adjust the desired output voltage and/or the maximum current limit. Power supply mode has now been enabled and configured. To revert the charger function back to use as a normal battery charger, follow steps 1 to 4 above and then select Charger from the Function pop-up dialog box.
-
Page 102: Technical Specifications
Blue Smart IP22 Charger Technical specifications Electrical 12/15 12/20 12/30 24/8 24/12 24/16 Mains power voltage (Nominal | Min/Max) 110 - 120VAC | 100 - 130VAC Mains power frequency (Nominal | Min/Max) 50 - 60Hz | 45 - 65Hz Power factor >0.6 Standby power 0.5W... -
Page 103: Warranty
Victron Energy to make such repairs. Victron Energy is not liable for any consequential damages arising from the use of this product. The maximum liability of Victron Energy under this limited warranty shall not exceed the actual pur-... -
Page 104: Compliance Statement
Blue Smart IP22 Charger Compliance statement Blue Smart IP22 Charger 12/15, 12/20, 12/30, 24/8, 24/12, 24/16 | (1) & (3) Output | 120V FCC and Industry Canada Compliance This device complies with part 15 of the FCC Rules and to RSS of Industry Canada. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause unde-... - Page 105 Blue Smart IP22 Charger To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.
