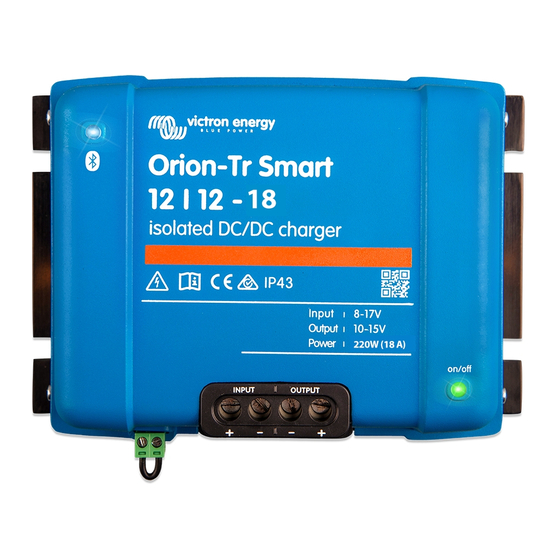

Summary of Contents for Victron energy Orion-Tr Smart 12/12-18

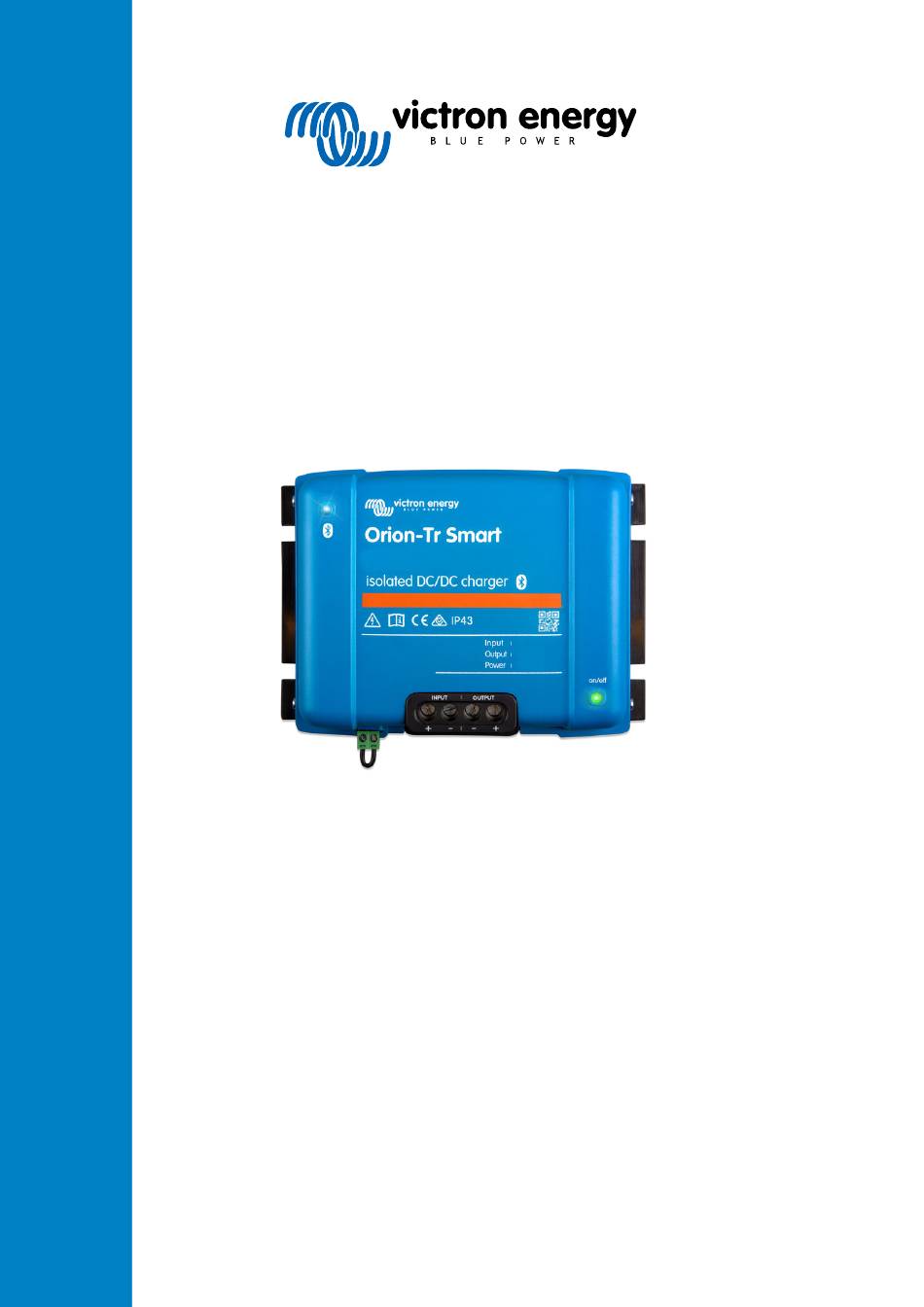

- Page 1 ENGLISH Orion-Tr Smart DC-DC Charger Isolated Rev 05 01/2021...
-
Page 2: Table Of Contents
Orion-Tr Smart DC-DC Charger Isolated Table of Contents 1. General Description ......................... 1 2. Features ..........................2 3. Safety instructions ........................3 4. Installation ..........................4 4.1. General ........................4 4.2. Connection setup for DC-DC converter mode ................4 4.3. Connection setup for charger mode ..................4 4.4. -
Page 3: General Description
Orion-Tr Smart DC-DC Charger Isolated 1. General Description The Orion-Tr Smart DC-DC Charger Isolated can be used as a power supply or as a battery charger. In charger mode the three- state charge algorithm will increase battery life by properly charging the battery. Especially in the case of vehicles with a smart alternator, or voltage drop caused by long cable runs, controlled charging is indispensable. -
Page 4: Features
Orion-Tr Smart DC-DC Charger Isolated 2. Features Smart alternator compatibility Vehicle manufacturers are now introducing smart ECU (Engine Control Unit) controlled alternators to increase fuel efficiency and reduce emissions. Smart alternators deliver a variable output voltage and are shut down when they’re not needed. The converter has an engine running detection mechanism. -
Page 5: Safety Instructions
Orion-Tr Smart DC-DC Charger Isolated 3. Safety instructions SAVE THESE INSTRUCTIONS – This manual contains important instructions that shall be followed during installation and maintenance. Danger of explosion from sparking Danger of electric shock • Please read this manual carefully before the product is installed and put into use •... -
Page 6: Installation
Orion-Tr Smart DC-DC Charger Isolated 4. Installation 4.1. General • Mount vertically on a non-flammable surface, with the power terminals facing downwards. Observe a minimum clearance of 10 cm under and above the product for optimal cooling. • Mount close to the battery, but never directly above the battery (in order to prevent damage due to gassing of the battery). 4.2. -
Page 7: Connection Remote On-Off
Orion-Tr Smart DC-DC Charger Isolated Figure 2: Typical connection setup as charger 4.4. Connection remote on-off The recommended use of the remote on-off is: a) A switch wired between the L-H pins (On-level impedance between L-H pins: < 500kΩ) b) A switch wired between (input/starter) battery plus and H-pin (on level: > 3V) c) A switch between the L-pin and (input/starter) ground (on level: <... -
Page 8: Engine Shutdown Detection Override
Orion-Tr Smart DC-DC Charger Isolated 4.5. Engine shutdown detection override In charger mode the “engine shutdown detection sequence” determines if conditions are met to enable charging, see chapter 5. The “engine shutdown detection override” forces the charger to allow charging independently of the engine shutdown detection. Engine shutdown detection override is activated by applying >7V to the remote L-pin. -
Page 9: Cable And Fuse Recommendations
Orion-Tr Smart DC-DC Charger Isolated Figure 5: Disable engine shutdown detection When the engine shutdown detection has been switched off in Victron Connect (‘forced charging’) current will be drawn from the starter battery even if the engine is not running. During ‘forced charging’... -
Page 10: Engine Shuthown Detection
Orion-Tr Smart DC-DC Charger Isolated 5. Engine shuthown detection The engine shutdown detection mechanism simplifies your ORION-Tr DC-DC Charger system by detecting if the engine is running without wiring additional switches or sensors. The factory default setting will work with most regular and smart alternators but can be re-configured with the VictronConnect App. - Page 11 Orion-Tr Smart DC-DC Charger Isolated Figure 9: Engine shutdown detection setup menu The following settings can be changed with VictronConnect: The default values displayed are for the 12V input models. Those values are scaled depending on the input voltage of the model. E.g. for 24V input models, the default values displayed on the manual should be multiplied by 2.
- Page 12 Orion-Tr Smart DC-DC Charger Isolated If the low voltage period exceeds tshutdown charging will be disabled on engine shutdown detection. • Voltage drop across the input cable: As seen in “engine shutdown detection sequence 1→3”, V will be lowered by Vcable. When the alternator voltage drops fast (smart alternator) the charge-control needs some time to reduce charge current and keep V at V...
-
Page 13: Led's
Orion-Tr Smart DC-DC Charger Isolated 6. LED's The LEDs will change its state to warn what the Orion Smart is doing at the moment. There are two LEDs, the blue LED is dedicated to Bluetooth functionality and the green LED to product state. Status LED (Green LED) •... -
Page 14: Specifications
Orion-Tr Smart DC-DC Charger Isolated 7. Specifications Orion-Tr Smart DC-DC Charger Isolated 12/12-18 12/24-10 24/12-20 24/24-12 220-280 Watt (220W) (240W) (240W) (280W) Input voltage range (1) 8-17 V 8-17 V 16-35V 16-35V Under voltage shut down Under voltage restart 7.5 V 7.5 V Nominal output voltage 12.2 V... - Page 15 Orion-Tr Smart DC-DC Charger Isolated Orion-Tr Smart DC-DC Charger 12/12-30 (360 12/24-15 (360 24/12-30 24/24-17 Isolated 360 – 400 Watt (360W) (400W) Maximum output current (10 s) at nominal 40 A 25 A 45 A 25 A output voltage Short circuit output current 60 A 40 A 60 A...
-
Page 16: Victronconnect - Orion Smart Dc-Dc Charger
Orion-Tr Smart DC-DC Charger Isolated 8. VictronConnect - Orion Smart DC-DC Charger 8.1. Introduction Thank you for using VictronConnect. This guide will help you get the most out of your Orion Smart DC-DC Charger and it requires a minimum knowledge of this charger that can be found on the Orion Smart manual. -
Page 17: Power Supply Mode
Orion-Tr Smart DC-DC Charger Isolated • Orion Smart [SERIAL NUMBER] confirms the connected device. A custom name can also be set if desired. • Charger State Graph indicate in which state the charger currently is and show a short description of the current state. 8.2.3. -
Page 18: Charger Mode - Battery Settings
Orion-Tr Smart DC-DC Charger Isolated 8.3.2. Charger Mode - Battery Settings • Charger enabled • Toggling this setting turns the Orion Smart off. The batteries will not be charged. • Charger settings - Battery preset • Battery preset allows to select the battery type; accept factory defaults; or enter your own preset values to be used for the battery charge algorithm. -
Page 19: Product Information
Orion-Tr Smart DC-DC Charger Isolated 8.4. Product Information By clicking the button on the top right of the settings menu, it is possible to access the product information screen. See image below. • Product shows the Orion Smart model • Serial number shows the serial number of the unit •...
