Summary of Contents for Victron energy Blue Smart 12/7

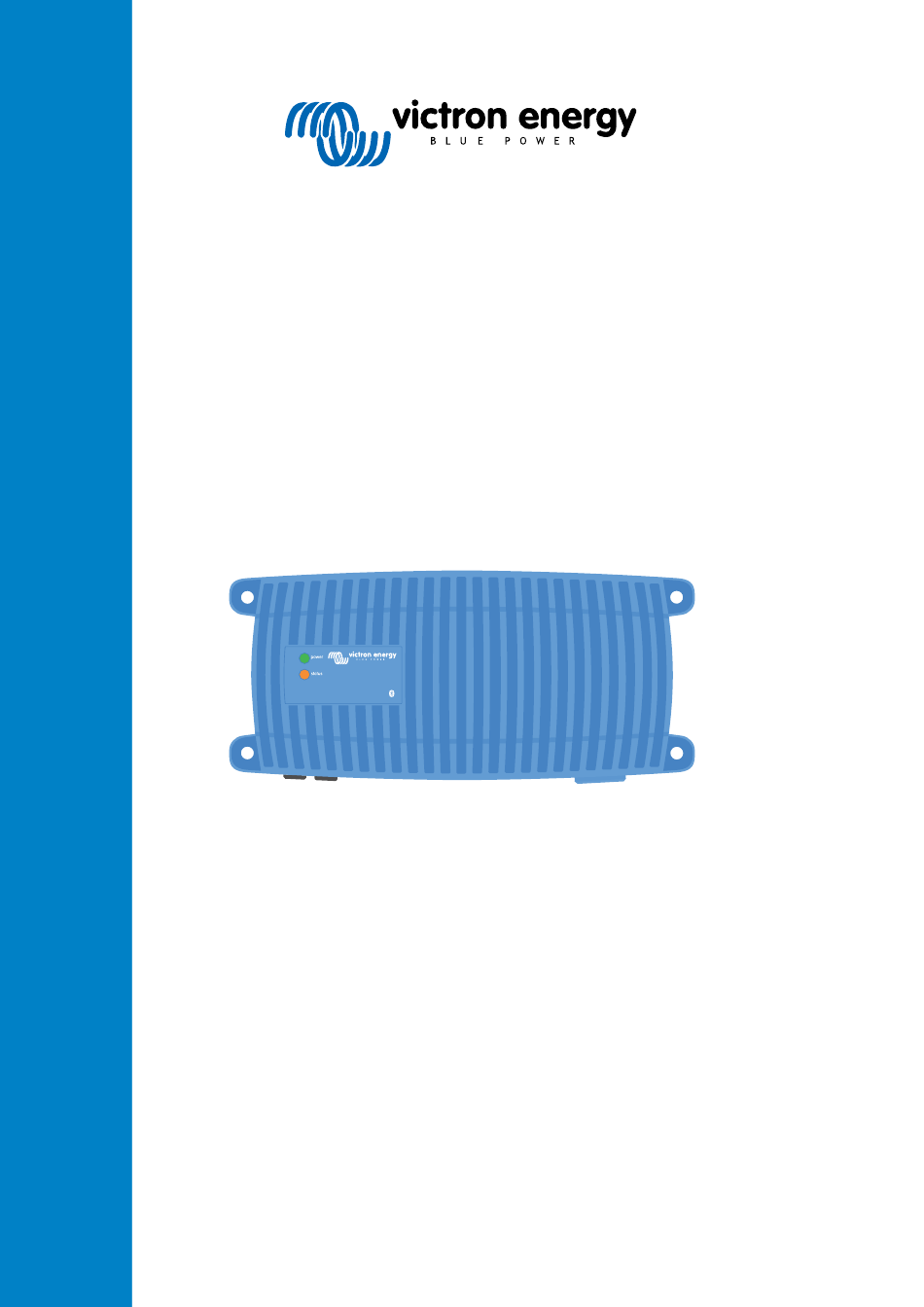

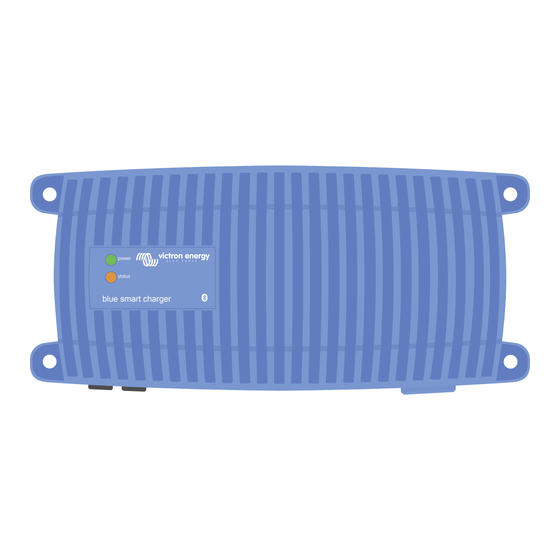

- Page 1 ENGLISH blue smart charger Blue Smart IP67 Charger 12/7, 12/13, 12/17, 12/25, 24/5, 24/8, 24/12 | 120V Rev. 04 - 04/2025 This manual is also available in HTML5.
-
Page 2: Table Of Contents
Blue Smart IP67 Charger Table of Contents 1. Safety instructions ........................1 1.1. UL compliance supplement - IMPORTANT SAFETY INSTRUCTIONS ..........2 2. Quick start guide ........................4 3. Features ..........................6 4. Operation ..........................8 4.1. Charge algorithm ......................8 4.2. -
Page 3: Safety Instructions
Blue Smart IP67 Charger 1. Safety instructions WARNING: CAREFULLY READ AND FOLLOW ALL SAFETY INSTRUCTIONS • Carefully read the manual before the charger is installed and operated; retain the manual in a safe place for future reference. • The charger must not be installed or operated by anyone who lacks the appropriate knowledge or competence required for safe installation and/or usage. -
Page 4: Ul Compliance Supplement - Important Safety Instructions
Do not expose charger to rain or snow. Use of an attachment not recommended or sold by Victron Energy may result in a risk of fire, electric shock, or injury to persons. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger. - Page 5 Blue Smart IP67 Charger 13. CHARGER LOCATION Locate the charger as far away from the battery as DC cables permit. Never place charger directly above battery being charged; gases from battery will corrode and damage the charger. Never place charger directly above battery being charged; gases from battery will corrode and damage the charger. Do not operate the charger in a closed-in area or restrict ventilation in any way.
-
Page 6: Quick Start Guide
Blue Smart IP67 Charger 2. Quick start guide The Blue Smart IP67 Charger range is designed to be permanently mounted using the mounting tabs on the base of the charger. Identify/provide a suitable and safe location for the charger on a non-flammable substrate, with at least 10cm of clearance surrounding the charger and good natural airflow/ventilation;... - Page 7 Blue Smart IP67 Charger Select the charge mode and charge current limit most appropriate for the battery type and capacity. To setup using VictronConnect: Using a Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app and locate the Blue Smart IP67 Charger in the Device list Local page, then connect to the device (the default PIN code is stated on a label located on the back of the charger, or try 000000 if there is no label).
-
Page 8: Features
Blue Smart IP67 Charger 3. Features Bluetooth setup and monitoring (Using VictronConnect) Equipped with integrated Bluetooth; enabling quick and simple setup, advanced configuration, comprehensive monitoring and firmware updates via the VictronConnect app and a Bluetooth enabled device (mobile phone or tablet). Integrated charge presets Integrated charge presets (selected via the VictronConnect app) combined with adaptive charge logic are well suited for most common battery types;... - Page 9 Blue Smart IP67 Charger M. Recovery function The charger will attempt to recharge a severely discharged battery (even down to 0V) with low current and then resume normal charging once the battery voltage has risen sufficiently; many other chargers will not recognise a battery in this state. N.
-
Page 10: Operation
Blue Smart IP67 Charger 4. Operation 4.1. Charge algorithm The Blue Smart IP67 Charger range are intelligent multi-stage battery chargers, specifically engineered to optimise each recharge cycle and charge maintenance over extended periods. The multi-stage charge algorithm includes the individual charge stages described below: Bulk The battery is charged at maximum charge current until the voltage increases to the configured absorption voltage. - Page 11 Blue Smart IP67 Charger The indicator LEDs can be used to determine the active charge state; refer to the image and table below: Charge state POWER (Green LED) STATUS (Orange LED) Bulk Illuminated Fast blinking Absorption Illuminated Slow blinking Recondition Illuminated Slow blinking Float...
-
Page 12: Charge Modes
Blue Smart IP67 Charger 4.2. Charge modes There are 3 integrated charge modes (Normal, High and Li-Ion), as well as an optional Recondition stage that can be included (except for Li-ion mode). The integrated charge modes combined with adaptive charge logic are well suited for most common battery types; such as flooded lead-acid, AGM, Gel and LiFePO4. -
Page 13: Temperature Compensation
Blue Smart IP67 Charger 4.3. Temperature compensation The Blue Smart IP67 Charger range feature temperature compensation, which will automatically optimise the nominal/ configured charge voltage based on ambient temperature (except for Li-ion mode or if manually disabled). The optimal charge voltage of a lead-acid battery varies inversely with battery temperature; automatic temperature-based charge voltage compensation avoids the need for special charge voltage settings in hot or cold environments. -
Page 14: Commencing A New Charge Cycle
Blue Smart IP67 Charger 4.4. Commencing a new charge cycle A new charge cycle will commence when: The configured Re-bulk condition is satisfied (typically due to a large load): Re-bulk current is disabled (default configuration): The current output must be maintained at the maximum current output for four seconds. -
Page 15: Estimating Charge Time
Blue Smart IP67 Charger 4.5. Estimating charge time The time required to recharge a battery to 100% SOC (state of charge) is dependant on the battery capacity, the depth of discharge, the charge current and the battery type/chemistry, which has a significant effect on the charge characteristics. 4.5.1. -
Page 16: Installation
Blue Smart IP67 Charger 5. Installation 5.1. Mounting The Blue Smart IP67 Charger range is designed to be permanently mounted using the mounting tabs on the base of the charger. Before mounting, the following aspects should be considered to identify/provide a suitable and safe location: Install the charger in a location with good natural airflow/ventilation;... -
Page 17: Wiring
Blue Smart IP67 Charger 5.2. Wiring The Blue Smart IP67 Charger range includes suitable DC power cabling hardwired to the charger, pre-terminated with M8 ring terminals; refer to the 'Installation> Wiring > DC power cable' section for more information. Install a suitably rated inline fuse or circuit breaker within the DC power cabling between the Blue Smart IP67 Charger and battery/batteries, located as close as practical to the battery/batteries;... - Page 18 Blue Smart IP67 Charger Connect the DC power cabling to the battery/batteries or DC system distribution bus - follow the instructions relevant to the installation type. For hardwired installations, or when charging a battery outside of a vehicle/installation: Ensure that the DC system is shut down (all DC loads and charge sources off/isolated) prior to disconnection of any existing battery / DC system distribution bus cabling and connection of the charger to the battery terminals / DC system distribution bus.
-
Page 19: Dc Power Cable
Blue Smart IP67 Charger 5.2.1. DC power cable The Blue Smart IP67 Charger range includes suitable DC power cabling hardwired to the charger, pre-terminated with M8 ring terminals; if required the DC power cabling supplied can be shortened and/or re-terminated to suit the installation. Refer to the table below for the DC power cable size/gauge (cross sectional area) supplied with each Blue Smart IP67 Charger model: Charger... -
Page 20: Overcurrent Protection
Blue Smart IP67 Charger 5.2.2. Overcurrent protection To ensure reliable and safe operation, it is recommended to install a suitably rated inline fuse or circuit breaker within the DC power cabling between the Blue Smart IP67 Charger and battery/batteries, located as close as practical to the battery/batteries; this is particularly important for hardwired installations. -
Page 21: Schematics
Blue Smart IP67 Charger 5.3. Schematics 5.3.1. Basic install Basic hardwired install Refer to the wiring schematic below to connect a Blue Smart IP67 Charger to a single battery / battery bank: Description AC power supply (mains power grid, generator or inverter) Blue Smart IP67 Charger Fuse / circuit breaker (locate as close as practical to battery) Battery / battery bank... -

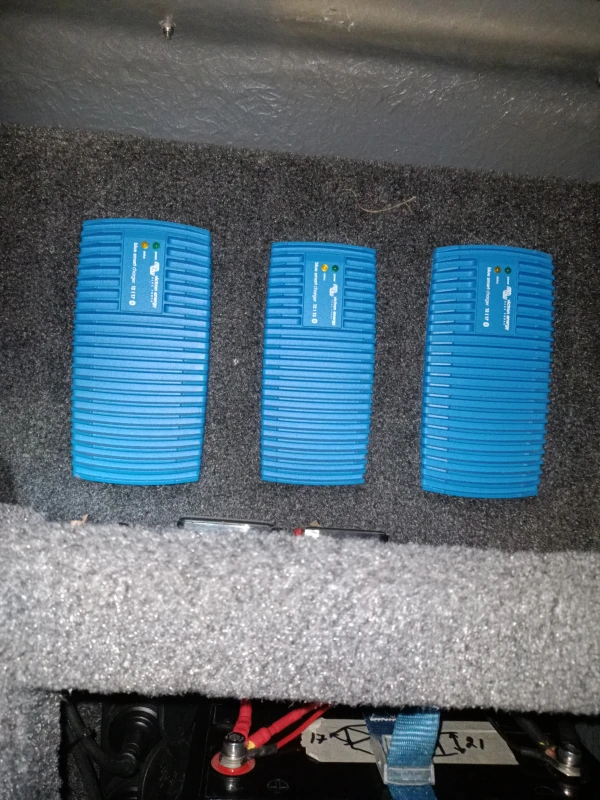

Page 22: System With Multiple Chargers
Blue Smart IP67 Charger 5.3.2. System with multiple chargers Multiple chargers in parallel Refer to the wiring schematic below to connect multiple Blue Smart IP67 Chargers in parallel to a single battery / battery bank: Description AC power supply x2 (mains power grid, generator or inverter) Blue Smart IP67 Chargers x2 Fuses / circuit breakers x2 (locate as close as practical to DC positive busbar) DC positive and negative busbar... -
Page 23: Setup
- Apple App Store C. Windows and other - Victron Energy website > Downloads > Software Enable Bluetooth on the Bluetooth enabled device (mobile phone or tablet) if not already enabled, but do not attempt to pair with the Blue Smart IP67 Charger. - Page 24 Blue Smart IP67 Charger Select the Blue Smart IP67 Charger from the Device list Local page, under Other devices. VictronConnect will attempt to establish a Bluetooth connection with the Blue Smart IP67 Charger and display the connection progress in the Connecting pop-up dialog box. When attempting to establish a Bluetooth connection with a new/unpaired device, the Bluetooth pairing request pop-up dialog box will appear after a short delay;...
- Page 25 Blue Smart IP67 Charger Select the Settings icon (gear in the top right corner) to access the Settings page. Select the most appropriate integrated charge mode (Normal, Normal + Recondition, High, High + Recondition or Li-ion) from the Charge preset menu. Ensure that recondition stage is only enabled when required, as unnecessary or overuse will reduce battery life.
-
Page 26: Bluetooth
Blue Smart IP67 Charger 6.2. Bluetooth 6.2.1. Changing the PIN code To prevent unauthorised Bluetooth connections, it is highly recommended to change the default PIN code to a unique PIN code that that offers a greater level of security. The Bluetooth PIN code can be changed using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. - Page 27 Blue Smart IP67 Charger Select CHANGE in the Pin code field to open the Change PIN code pop-up dialog box. Enter the current PIN code and the desired new PIN code (twice), then select OK; avoid using a simple PIN code that is easy for someone else to guess, such as 123456.
- Page 28 Blue Smart IP67 Charger After a short delay a pop-up dialog box will appear confirming that the Bluetooth PIN code has been successfully changed. The Bluetooth PIN code has now been changed to the new PIN code. During this procedure: The Bluetooth PIN code is changed to the new PIN code Bluetooth pairing information is not cleared Accordingly Bluetooth pairing with the device (mobile phone or tablet) used to change the PIN code is...
-
Page 29: Resetting The Pin Code
Blue Smart IP67 Charger 6.2.2. Resetting the PIN code If the PIN code is forgotten/lost or does not work, it can be reset to 000000 (not the default PIN code stated on the label) using a Bluetooth enabled device (such as a mobile phone or tablet) with the VictronConnect app. Reset PIN using VictronConnect To reset the Bluetooth PIN code: Locate the PUK code stated on a label located on the back of the charger and record it for use later. - Page 30 Blue Smart IP67 Charger Enter the PUK code (recorded earlier) and select OK. A pop-up dialog box with the text "Busy" will be displayed while the Bluetooth PIN code is being reset. Page 28 Setup...
- Page 31 Blue Smart IP67 Charger After a short delay a pop-up dialog box will appear confirming that the Bluetooth PIN code has been successfully reset; select OK to exit into the VictronConnect Device list LOCAL page. The Bluetooth PIN code has now been reset to 000000. During this procedure: The Bluetooth PIN code is reset to 000000 (not the default PIN code stated on the label) Bluetooth pairing information is not cleared...
-
Page 32: Disabling Bluetooth
Blue Smart IP67 Charger 6.2.3. Disabling Bluetooth If required, Bluetooth communication can be totally disabled using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. Typically, there is no need to disable Bluetooth since unauthorised access is protected with a PIN code, but certain situations may warrant it for an even higher level of security or in highly specialised installations where the Bluetooth radio frequency is undesirable. - Page 33 Blue Smart IP67 Charger Select the dropdown arrow in the Bluetooth field, then select Enabled for 30 seconds from the dropdown menu. Read the warning message, then tick the checkbox and select OK to proceed. End the current Bluetooth session by exiting into the VictronConnect Device list, a final pop-up dialog box will appear when attempting to exit.
- Page 34 Blue Smart IP67 Charger Bluetooth operation has now been disabled, except for 30 second after every power-up. Option #2: Disabled (Permanent and Irreversible) Note: This option will permanently disable Bluetooth; use with extreme caution, as this procedure is irreversible. To disable Bluetooth permanently: Connect the Blue Smart IP67 Charger AC power cable to a mains power outlet;...
- Page 35 Blue Smart IP67 Charger Select the dropdown arrow in the Bluetooth field, then select Disabled from the dropdown menu. Read the warning message, then tick the checkbox and select OK to proceed. Page 33 Setup...
- Page 36 Blue Smart IP67 Charger A four digit code is provided to avoid Bluetooth being permanently disabled accidentally, if you are sure that you want to permanently disable Bluetooth enter the code, then select OK. This is the last chance to abort; after Bluetooth has been permanently disabled it is irreversible and cannot be re-enabled later.
-
Page 37: Re-Enabling Bluetooth
Blue Smart IP67 Charger 6.2.4. Re-enabling Bluetooth During this procedure: Bluetooth operation is re-enabled The Bluetooth PIN code is reset to 000000 (not the default PIN code stated on the label) C. Bluetooth pairing information is cleared Accordingly it is necessary to unpair all devices (mobile phones or tablets) previously paired with the Blue Smart IP67 Charger and establish a new Bluetooth pairing. - Page 38 Blue Smart IP67 Charger Select the dropdown arrow in the Bluetooth field, then select Enabled from the dropdown menu. Bluetooth operation has now been re-enabled. During this procedure: Bluetooth operation is re-enabled The Bluetooth PIN code is not reset C. Bluetooth pairing information is not cleared Accordingly Bluetooth pairing with any devices (mobile phones or tablets) previously paired with the Blue Smart IP67 Charger is unaffected.
-
Page 39: Updating Firmware
Blue Smart IP67 Charger 6.3. Updating firmware 6.3.1. Automated firmware update The Blue Smart IP67 Charger firmware can be automatically updated using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. The latest product firmware is embedded within the VictronConnect app and loaded to the Bluetooth enabled device (mobile phone or tablet) when the VictronConnect app is installed/updated, accordingly the VictronConnect app will include the latest product Firmware as as long as it is kept up to date, and no internet connection is required during the firmware update process. - Page 40 Blue Smart IP67 Charger Refer to the current and new firmware versions stated at the top of the Firmware update page, then select Update to proceed. The firmware update will commence and a progress bar will be displayed within the Firmware update page. Ensure that the Bluetooth enabled device (mobile phone or tablet) remains close to the Blue Smart IP67 Charger until the firmware update is complete and avoid using the device during this period;...
- Page 41 Blue Smart IP67 Charger If the firmware update does fail for some reason, a notification with the failure reason will be provided within the Firmware update page; select Continue to exit into the VictronConnect Device list Local page and re-attempt the firmware update. Confirmation that the firmware has been successfully updated and the new firmware version will be provided within the Firmware update page when the firmware update is complete;...
- Page 42 Blue Smart IP67 Charger The firmware has now been updated. Page 40 Setup...
-
Page 43: Manual Firmware Update
Blue Smart IP67 Charger 6.3.2. Manual firmware update Updating firmware manually is typically not required but there are some rare circumstances when it may be necessary, such as: Updating to a new firmware version that has just been released and is available for download via the Victron Professional Portal, but not included in the VictronConnect app version currently available;... - Page 44 Blue Smart IP67 Charger Select the Settings icon (gear in the top right corner) to access the Settings page. Select the Device options icon (three vertical dots in the top right corner) to access the Device options dropdown menu. Select Product info from the dropdown menu to access the Product info page. Select MANUAL UPDATE in the Firmware field to open the Firmware library page.
- Page 45 Blue Smart IP67 Charger 10. If no firmware files are listed within the the Firmware library page, the Firmware file previously loaded is likely not compatible with the specific Blue Smart IP67 Charger model or hardware version being updated. Due to this mechanism it is not possible to update with a non-compatible firmware file; if there is uncertainty about which firmware file is correct for the specific Blue Smart IP67 Charger model being updated, multiple firmware files can be safely loaded.
- Page 46 Blue Smart IP67 Charger 12. The firmware update will commence and a progress bar will be displayed within the Firmware update page. Ensure that the Bluetooth enabled device (mobile phone or tablet) remains close to the Blue Smart IP67 Charger until the firmware update is complete and avoid using the device during this period;...
- Page 47 Blue Smart IP67 Charger 14. Confirmation that the firmware has been successfully updated and the new firmware version will be provided within the Firmware update page when the firmware update is complete; select Continue to exit into the VictronConnect Device list Local page.
-
Page 48: Reset To Defaults
Blue Smart IP67 Charger 6.4. Reset to defaults If required, all Blue Smart IP67 Charger settings can be reset/restored to factory defaults using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. Note this operation does not reset any Bluetooth related settings, such as the Bluetooth PIN code or pairing information. To reset all settings to factory defaults: Connect the Blue Smart IP67 Charger AC power cable to a mains power outlet;... - Page 49 Blue Smart IP67 Charger Read the warning message, then select Yes to proceed. All settings have now been reset/restored to factory defaults. Page 47 Setup...
-
Page 50: Monitoring
Blue Smart IP67 Charger 7. Monitoring 7.1. LED indications 7.1.1. Operation states The LEDs on the Blue Smart IP67 Charger unit can be referenced to determine the current charge state and other operational information. Refer to the LED indications in the table below: Operation state POWER (Green LED) STATUS (Orange LED) -
Page 51: Victronconnect
Blue Smart IP67 Charger 7.2. VictronConnect The Blue Smart IP67 Charger operation can be monitored in real-time and/or after completion of a charge cycle using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app; this includes live data such as charger output voltage, output current, the current charge stage, charge cycle statistics, warnings, alarms and errors. -
Page 52: Graph Screen
Blue Smart IP67 Charger 7.2.2. Graph screen The Graph screen provides an easy to understand graphical representation of each charge state with respect to typical battery voltage and charge current. The active charge stage is also highlighted and stated, along with a brief explanation. Page 50 Monitoring... -
Page 53: History Screen
Blue Smart IP67 Charger 7.2.3. History screen The History screen is a very powerful reference as it contains historical usage data over the charger lifetime and detailed statistics for the last 40 charge cycles (even if the charge cycle is only partially completed). By selecting the full screen view the data is displayed in landscape view with significantly more days visible at the same time. - Page 54 Blue Smart IP67 Charger Charge cycle statistics Cycle overview Expandable bar chart showing the time spent in each charge stage and the charge capacity provided (in Ah) during each charge stage Status Confirms if the charge cycle was successfully completed or if it was ended early/interrupted, including the reason/cause C.
-
Page 55: Instant Readout
Blue Smart IP67 Charger 7.3. Instant readout The Blue Smart IP67 Charger range features instant readout functionality (requires firmware v3.61 or above), which enables the essential data and notifications from multiple compatible devices to be monitored directly in the VictronConnect device list, without the need to establish a full Bluetooth connection with the device. - Page 56 Blue Smart IP67 Charger After a short delay the Instant readout pop-up dialog box will appear: When the Instant readout pop-up dialog box appears, select Enable now to enable instant readout functionality; skip to step 9. If the Instant readout pop-up dialog box does not appear, the automated prompt may have been disabled or the charger firmware does not support instant readout and needs to be updated (instant readout requires firmware v3.61 or above);...
- Page 57 Blue Smart IP67 Charger Confirm that the charger firmware version supports instant readout functionality: If the current firmware version is v3.61 or above continue to step 8. If the current firmware version is below v3.61, update to the latest firmware version and then repeat the entire process; refer to the 'Setup >...
- Page 58 Blue Smart IP67 Charger 10. End the current Bluetooth session by exiting into the VictronConnect Device list Local page. 11. Instant readout has now been enabled; data descriptions and additional data (if available) can be displayed or hidden by toggling the opposing arrows icon (right of the instant data). Page 56 Monitoring...
-
Page 59: Advanced Configuration
Blue Smart IP67 Charger 8. Advanced Configuration 8.1. Advanced settings In specific use cases where the integrated charge modes are not suitable/ideal for the battery type being charged, or the battery manufacturer recommends specific charge parameters and fine tuning is desired, advanced configuration is possible using a Bluetooth enabled device (mobile phone or tablet) with the VictronConnect app. - Page 60 Blue Smart IP67 Charger Using a Bluetooth enabled device (mobile phone or tablet), open the VictronConnect app and locate the Blue Smart IP67 Charger in the Device list Local page, then connect to the device (the default PIN code is stated on a label located on the back of the charger, or try 000000 if there is no label).
- Page 61 Blue Smart IP67 Charger Select User defined from the Battery preset dropdown menu. User defined configuration will now be enabled. Configure the advanced settings as required per battery manufacturers recommendations. The advanced settings (with expert mode disabled) include: Battery preset The Battery preset dropdown allows selection from the following options: Built-in preset Selection of a standard integrated pre-set (same as the general settings menu)
-
Page 62: Expert Mode Settings
Blue Smart IP67 Charger 8.2. Expert mode settings Expert mode expands the advanced settings menu even further, to include more specialised expert level configuration settings. Page 60 Advanced Configuration... - Page 63 Blue Smart IP67 Charger To access the expert mode settings: Open the Advanced setting page and enable User defined configuration - see the 'Advanced configuration > Advanced settings' section for instructions. Toggle the Expert mode switch on to enable additional Expert mode settings (extension of the Advanced settings menu). Read the warning message and then select OK to proceed.
- Page 64 Blue Smart IP67 Charger C. Absorption Absorption duration The absorption duration setting allows selection between adaptive absorption time (calculated based on the bulk time / level of discharge) or a fixed absorption time. Maximum absorption time / Absorption time The maximum absorption time / absorption time setting enables the maximum adaptive absorption time or the fixed absorption time to be configured (depending if adaptive or fixed absorption time is selected).
-
Page 65: Power Supply Mode
Blue Smart IP67 Charger 8.3. Power supply mode The Blue Smart IP67 Charger range is also suitable for use as a DC power supply, to directly power loads with or without a battery connected. When the charger is used specifically as a DC power supply it is recommended to activate Power supply mode, which will disable the internal charge logic and provide a constant (configurable) DC voltage to the loads. - Page 66 Blue Smart IP67 Charger If required, adjust the desired output voltage and/or enable/disable low current mode. Power supply mode has now been enabled and configured. To revert the charger function back to use as a normal battery charger, follow steps 1 to 4 above and then select Charger from the Function pop-up dialog box.
-
Page 67: Technical Specifications
Blue Smart IP67 Charger 9. Technical specifications Electrical 12/7 12/13 12/17 12/25 Mains power voltage (Nominal | Min/Max) 110 - 120VAC | 100 - 130VAC Mains power frequency (Nominal | Min/Max) 50 - 60Hz | 45 - 65Hz Power factor >0.6 Standby power 0.5W... - Page 68 Blue Smart IP67 Charger Electrical 24/5 24/8 24/12 Mains power voltage (Nominal | Min/Max) 110 - 120VAC | 100 - 130VAC Mains power frequency (Nominal | Min/Max) 50 - 60Hz | 45 - 65Hz Power factor >0.6 Standby power 0.5W Max efficiency Normal 28.8V | 27.6V | 26.4V...
-
Page 69: Warranty
Victron Energy to make such repairs. Victron Energy is not liable for any consequential damages arising from the use of this product. The maximum liability of Victron Energy under this limited warranty shall not exceed the actual purchase price of the product. Page 67... -
Page 70: Compliance Statement
Blue Smart IP67 Charger 11. Compliance statement Blue Smart IP67 Charger 12/7, 12/13, 12/17, 12/25, 24/5, 24/8, 24/12 | 120V FCC and Industry Canada Compliance This device complies with part 15 of the FCC Rules and to RSS of Industry Canada. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
