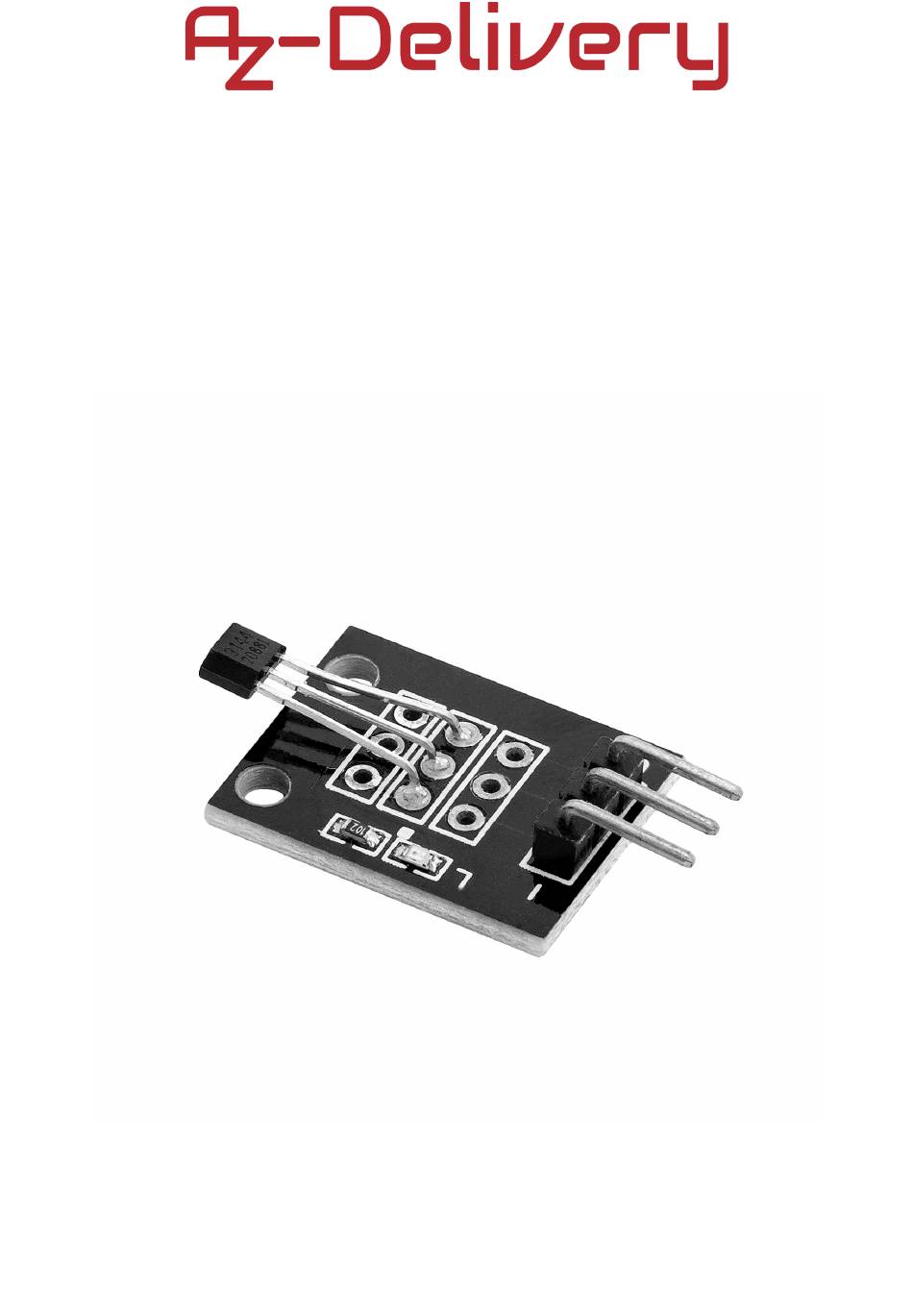

- Page 1 Welcome! Thank you for purchasing our AZ-Delivery KY-003 Hall-effect Sensor Module. On the following pages, you will be introduced to how to use and set up this handy device. Have fun!
- Page 2 Areas of application Education and teaching: Use in schools, universities and training institutions to teach the basics of electronics, programming and embedded systems. Research and development: Use in research and development projects to create prototypes and experiments in the fields of electronics and computer science. Prototype development: Use in the development and testing of new electronic circuits and devices.
- Page 3 consult a doctor. Caution: Keep the product out of the reach of children and pets to avoid accidental contact and swallowing of small parts. Note: Store the product in a safe, closed container when not in use. Attention: Avoid contact of the product with food and drinks.
-
Page 4: Table Of Contents
Table of Contents Introduction......................3 Specifications....................4 The pinout......................5 How to set-up Arduino IDE................6 How to set-up the Raspberry Pi and Python..........10 Connecting the sensor with Atmega328p............11 Sketch example..................12 Connecting the sensor with Raspberry Pi............13 Python script....................14 - 2 -... -
Page 5: Introduction
Introduction The KY-003 Hall-effect sensor module has the 3144 Hall magnetic sensor, a resistor and a red LED on-board. The module is a very responsive switch that gets activated by a magnetic field. It can be triggered, with high response rates, by a natural magnet or an electromagnet. -
Page 6: Specifications
Dimensions: 19 x 15mm [0.73 x 0.6in] The KY-003 Hall sensor module consists of a sensitive Hall-effect switch, a 680Ω resistor and a red LED. The red LED gets turned ON when there is a magnet in the sensor proximity. -
Page 7: The Pinout
The pinout The KY-003 Hall-effect sensor module has three pins. The pinout diagram is shown on the following image: - 5 -... -
Page 8: How To Set-Up Arduino Ide
How to set-up Arduino IDE If the Arduino IDE is not installed, follow the link and download the installation file for the operating system of choice. For Windows users, double click on the downloaded .exe file and follow the instructions in the installation window. - 6 -... - Page 9 For Linux users, download a file with the extension .tar.xz, which has to be extracted. When it is extracted, go to the extracted directory and open the terminal in that directory. Two .sh scripts have to be executed, the first called arduino-linux-setup.sh and the second called install.sh.
- Page 10 Almost all operating systems come with a text editor preinstalled (for example, Windows comes with Notepad, Linux Ubuntu comes with Gedit, Linux Raspbian comes with Leafpad, etc.). All of these text editors are perfectly fine for the purpose of the eBook. Next thing is to check if your PC can detect an Atmega328p board.
- Page 11 If the Arduino IDE is used on Windows, port names are as follows: For Linux users, for example port name is /dev/ttyUSBx, where x represents integer number between 0 and 9. - 9 -...
-
Page 12: How To Set-Up The Raspberry Pi And Python
How to set-up the Raspberry Pi and Python For the Raspberry Pi, first the operating system has to be installed, then everything has to be set-up so that it can be used in the Headless mode. The Headless mode enables remote connection to the Raspberry Pi, without the need for a PC screen Monitor, mouse or keyboard. -
Page 13: Connecting The Sensor With Atmega328P
Connecting the sensor with Atmega328p Connect the KY-003 module with the Atmega328p as shown on the following connection diagram: KY-003 pin > Mc pin > Blue wire Middle pin (VCC) > Red wire (GND) > Black wire - 11 -... -
Page 14: Sketch Example
= analogRead(0); if(value < 30) { digitalWrite(LED_BUILTIN, LOW); else digitalWrite(LED_BUILTIN, HIGH); When the sketch is uploaded to the Atmega328p, the built-in LED of the Atmega328p should turn ON when a magnet close is close to the KY-003 module. - 12 -... -
Page 15: Connecting The Sensor With Raspberry Pi
Connecting the sensor with Raspberry Pi Connect the KY-003 module with the Raspberry Pi as shown on the following connection diagram: KY-003 pin > Raspberry Pi pin > GPIO22 [pin 15] Blue wire Middle pin (VCC) > [pin 17] Red wire - (GND) >... -
Page 16: Python Script
Python script import RPi.GPIO GPIO from time import sleep GPIO.setmode(GPIO.BCM) GPIO.setwarnings(False) # Pin setup for the sensor Hall_PIN GPIO.setup(Hall_PIN, GPIO.IN) print('[Press CTRL + C to end the script!]') try: # Main program loop while True: state GPIO.input(Hall_PIN) if not state print('DETECTED MAGNET') else:... - Page 17 Save the script by name hall3.py. To run the script, open terminal in the directory where the script is saved and run the following command: python3 hall3.py The result should look like the output on the following image: To stop the script press CTRL + C on the keyboard. - 15 -...
- Page 18 If you are looking for the high quality microelectronics and accessories, AZ-Delivery Vertriebs GmbH is the right company to get them from. You will be provided with numerous application examples, full installation guides, eBooks, libraries and assistance from our technical experts.
