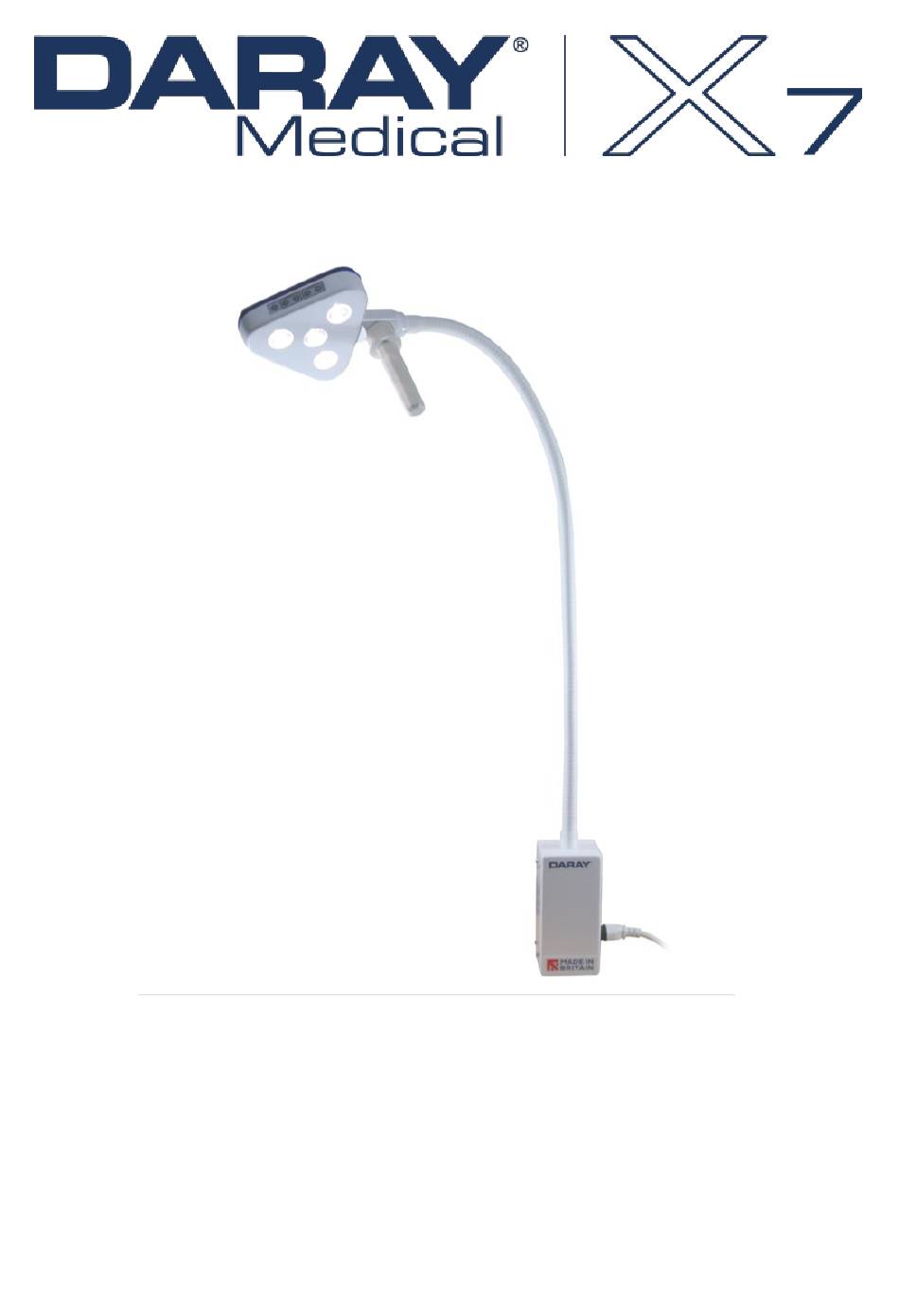

- Page 1 X710 (all variants) LED Examination Light Operating and installation manual QAM.X710.0125.3...
-
Page 3: Table Of Contents
Table of contents 1. Introduction ..........................4 1.1 Supported lights ........................5 1.2 Dimensions ......................... 6 2 Technical specifications......................8 2.1 Pre-installation responsibilities/component packing list ............9 2.2 Pre-start checks ........................9 3 Operation ..........................10 3.1 Powering on and variable intensity ..................10 4 Correct usage ........................... -
Page 4: Introduction
1. Introduction DARAY’s X7 Series is a state-of-the art, cost-effective examination light for use during medical or veterinary consultation and diagnosis. The light uses the latest LED technology to give an intense light at the ideal colour temperature for accurate medical diagnosis (without the need for secondary filtering) with virtually no heat. -
Page 5: Supported Lights
1.1 Supported lights The following models are supported in this manual X710LW X7 Wall mounted LED examination light with IEC cable X710LE X7 Wall mounted LED examination light – Electrician’s flush fit X7 Rail mounted LED examination light with curled IEC cable X710LR (medical rail sold separately –... -
Page 6: Dimensions
1.2 Dimensions... - Page 7 For specific applications and environments, the mounting bracket should be installed at a height so that, when fitted, the light-head is as near to the required position as possible. Actual location should be dependent on intended use and desired reach. Common sense should always prevail.
-
Page 8: Technical Specifications
2 Technical specifications Light Source Light Intensity (Lux) @ 0.5m 80,000 Lux ±5% Light Intensity (Lux) @ 0.75m 40,000 Lux ±5% Light Intensity (Lux) @ 1.0m 20,000 Lux ±5% Light Intensity Adjustment Range 25% - 100% Colour Temperature (Kelvin) 3,600K - 5,000K ±500 Colour Rendering Index (CRI) Colour Rendering (R9) @ 0.5m: 60mm... -
Page 9: Pre-Installation Responsibilities/Component Packing List
All fixings between DARAY lights and the building super-structure must be approved by either the chief project engineer or an appropriate and competent structural assessor. The components supplied by DARAY for fitting / installation should be the following items in the specified quantities. -
Page 10: Operation
3 Operation 3.1 Powering on and variable intensity The X7 Series uses a control panel on the side of the light-head to power the light on and off, and to adjust the brightness (intensity), and colour temperature. Press the power button to power ON or OFF. -
Page 11: Correct Usage
1000 -1300mm from the floor. The flexible neck works under tension and should be installed in an upright position. Please refer to the drawing in section 1.2 Dimensions of this manual when determining the mounting position. For installations requiring a different fixing height please contact DARAY for advice on 0800 804 8384. -
Page 12: Mounting The Box To The Wall
Mounting the box to the wall: Remove the 4 cover screws with the hex wrench provided. Release the earth bond from the back-plate by removing the nut and shake-proof washer. Using the back-plate as a template, mark its position on the wall, bearing in mind the final position of the light-head. -
Page 13: X710Lr Rail Mounted Version
Switch the power on and check for correct operation 5.3 X710LR rail mounted version NOTE: Medical rail not supplied. If required, order using DARAY code: XRAIL XRAIL installation Hold the rail against the selected location on the wall, bearing in mind the final position and range of travel of the light-head required, to project its light patch where it will be needed. -
Page 14: Rail Mount Clamp Installation
Rail mount clamp installation Attach the rail mount clamp to the rear of the wall mounting box with the screws supplied. Slacken the light clamp sufficiently to allow the clamp to pass over the rail and fit the light to the rail. Finger-tighten the two retainer screws located underneath the clamp to ensure the clamp cannot come off the rail inadvertently. -
Page 15: Fuse Replacement
‘drawer’ containing the fuses. Hinge down the front of the holder. Lift the fuses by pushing them through the holes below. Refit new fuses (DARAY part D10873) and reverse the removal sequence, ensuring the ‘drawer’ is pushed fully home. WARNING: Isolate the unit from mains power before any work related to the... -
Page 16: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. Do not attempt any fixes before consulting DARAY. 0800 804 8384 If you cannot resolve a problem, please contact our helpline on support@DARAY.co.uk... -
Page 17: Product Cleaning And Care Guidelines
7.3 Product cleaning and care guidelines The X7 Series features a fully-enclosed head with an Ingress Protection (IP) rating of 62. These guidelines are provided to help you maintain your equipment properly and prevent any damage. Use of incompatible cleaning chemicals can adversely affect the finish and physically damage the metal and plastic parts of the DARAY product, invalidating its warranty. -
Page 18: Safety Precautions
Acetone-based cleaners (e.g. nail polish remover, Goo-off™) MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. 7.4 Safety precautions For all cleaning work, power off the equipment and where possible unplug the mains socket, only minimal cleaning fluids should be used. -
Page 19: Spare Parts
For spare parts or technical issues call DARAY: Email support@DARAY.co.uk If the light was originally purchased through a distributor, contact them in the first instance for a resolution. Please contact DARAY for help with any problems that the distributor cannot solve. -
Page 20: Warranty Information And Returns Policy
Please fill out your warranty registration online at www.daray.co.uk/warranty or contact DARAY by phone (0800 804 8384) or email support@daray.co.uk DARAY's standard warranty is 12 months. However, this period may be extended to 5 years free of charge by completing and submitting the warranty registration. -
Page 21: Terms And Conditions Of Warranty
The period of warranty is the period stated on your warranty card and commences on the date of purchase of the product. In the event that the product is not in good working order DARAY will provide, during the warranty period, a free repair service within the United Kingdom. - Page 24 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH +44 (0)800 804 8384 International +44 (0)1283 221 230 sales@daray.co.uk www.daray.co.uk...
