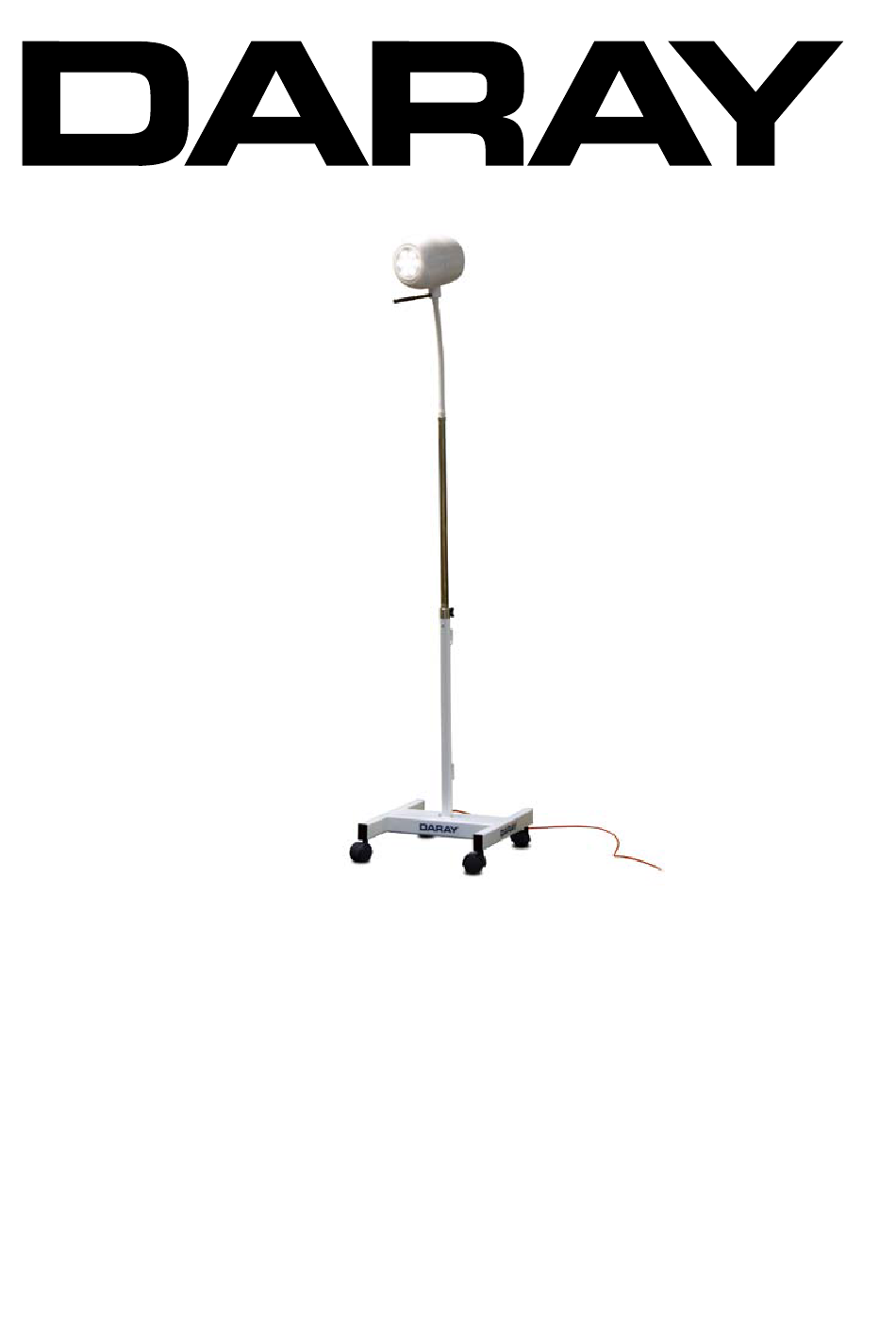

- Page 1 ® X350LED MOBILE MEDICAL EXAMINATION LIGHT OPERATING MANUAL QAM.X350LED.1109.1...
-
Page 3: Table Of Contents
® 1. GENERAL DESCRIPTION 2. SPECIFICATION Serial number Product identification 3. OPERATION 4. MAINTENANCE 5. FUSE REPLACEMENT 6. SPARE PARTS RETURNS POLICY WARRANTY WARRANTY REGISTRATION Tel: 0844 375 9000 Fax: 0333 321 0973 email: info@daray.co.uk url: www.daray.com... -
Page 4: General Description
1. GENERAL DESCRIPTION DARAY’s X350LED is a cost-effective mobile medical examination light utilising LED technology. The mobile base contains a transformer to convert the mains electrical input to a safe, low voltage which is fed to the light-head. The base is very stable and manoeuvrable, and is fitted with 2 locking and 2 free castors;... -
Page 5: Specification
2. SPECIFICATION 0 - 68,000 lux @.5m ±5% Light intensity 0 - 17,000 lux @1m ±5% Power consumption Colour temperature >4,200K ±5% (neutral white light) Input voltage 230V, 50 Hz mains, Class 1, double fused Light-head range of vertical 750 mm to 1750 mm movement above floor Head rotation 320°... -
Page 6: Operation
3. OPERATION IEC mains connector Safety retainer Illuminated power switch Position the light by moving it using the handle provided on the main stand. The front castors on the base have brakes which can be used to help keep the base from moving whilst the light-head position is adjusted. - Page 7 The telescopic extension is released for raising and lowering, and locked by the locking screw at the rear of the up-stand. Locking screw Use the light-head handle to position the light-patch to where it is required. In the interests of cross-infection control, avoid touching any other part of the light.
-
Page 8: Maintenance
4. MAINTENANCE WARNING: Do not use strong chemical cleaning agents to sterilise the light. Do not use any abrasive materials to clean the light. The light is not waterproof, so do not use excessive cleaning fluid amounts. Suitably protect hands. Clean the lens by carefully use of a microfibre cloth or other non-abrasive optical lens cleaning material. -
Page 9: Fuse Replacement
5. FUSE REPLACEMENT CAUTION: fuses normally blow for a reason. Investigate likely faults before changing fuses. CAUTION: isolate the unit from the mains before accessing the fuses. Both the live and neutral mains inputs are fused. The fuses are contained in a holder which is part of the IEC inlet mounted on the rear panel of the mobile base. -
Page 10: Spare Parts
6. SPARE PARTS CAUTION: Use only genuine ‘DARAY’ replacement lamps as other types may seriously impair the optical performance of the product. ITEM NO PART NAME TYPE PART NO Fuse 1A 20mm D10873 Microfibre cloth 5 pack DRK4080 PLEASE REFER ANY PROBLEMS INITIALLY TO YOUR DISTRIBUTOR. -
Page 11: Returns Policy
If you send us goods that do not qualify for return, you will invalidate your claim to any refund, and you will be obliged to compensate DARAY Ltd for the cost of return postage and any other reasonable costs incurred processing the goods. -
Page 12: Warranty
• Failure to use or install the product in accordance with the manufacturer’s instructions. 5. Nothing in this warranty shall have the effect of restricting or excluding the liability of Daray in respect of: a) Death and personal injury caused by the negligence of Daray, or for fraud;... -
Page 13: Warranty Registration
the exclusive jurisdiction of the English courts. - Page 17 Marquis Drive · Moira · Derbyshire · DE12 6EJ Tel: 0844 375 9000 · Fax: 0333 321 0973 email: info@daray.co.uk · url: www.daray.co.uk...
