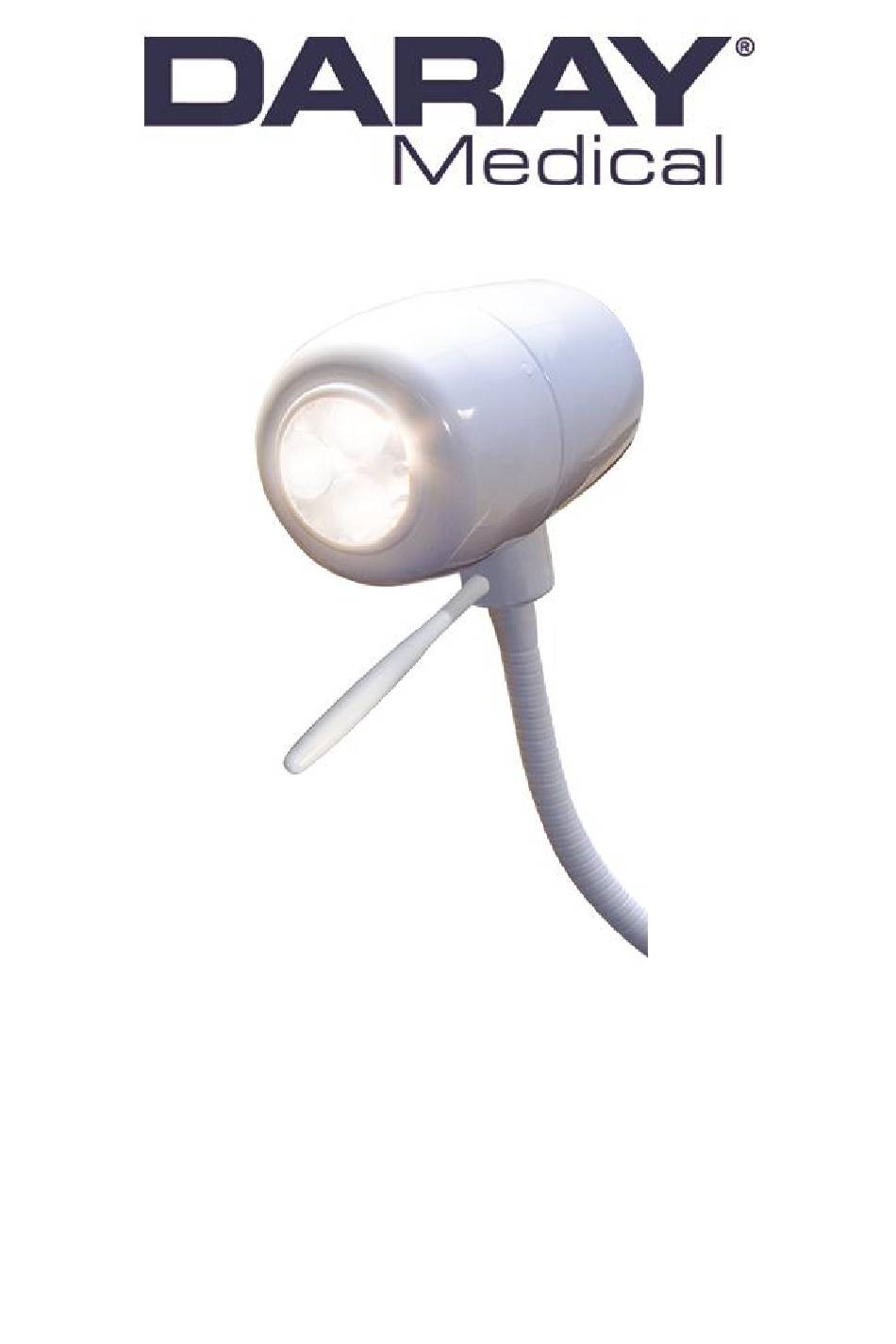

- Page 1 BH200 LED Patient Light Operating & Installation Manual QAM.BH200.0519.5...
- Page 2 Page 1 of 20...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 1.1 Supported Lights ............4 2. Technical Specifications ..........5 2.1 Pre-Installation Responsibilities and component packing list ... 6 2.2 Pre-Start Checks ............6 3. Operation ..............7 3.1 Range of Motion ............7 3.2 Powering On &... -
Page 4: Introduction
DARAY’s BH200 LED is a state-of-the-art, low-cost patient light. The light uses the latest next-gen LED technology with no heat in the light beam. The BH200 LED head swivels on a flexible arm to allow accurate and stable positioning of the light patch. Its head and handles are coated with DARAY’s BioProtect™, an antimicrobial protection against bacteria such as MRSA. -
Page 5: Supported Lights
This product was designed & manufactured in Great Britain by: Daray Ltd. Edison House Robian Way Swadlincote Derbyshire DE11 9DH 1.1 Supported Lights The Following Models are supported in this Manual BH200LW BH200 LED Wall Mounted Light BH200LR BH200 LED Rail Mounted Light Page 4 of 20... -
Page 6: Technical Specifications
2. Technical Specifications Light Source Light Intensity (Lux) @ 0.5m 5,800 Lux ±5% Light Intensity Adjustment Range 10% - 100% Colour Temperature (Kelvin) 4,300K ±500 Colour Rendering Index (CRI) Colour Rendering (R9) Light Field Diameter (D50) @ 0.5m: 280mm Light Field Diameter (D10) @ 0.5m: 640mm Number of LED’s Power Consumption... -
Page 7: Pre-Installation Responsibilities And Component Packing List
2.1 Pre-Installation Responsibilities and component packing list This document is a guide to the steps that need to be performed to correctly install the BH200 Patient light. However, the work required to be performed is the responsibility of the owner or designated contractor/s. -
Page 8: Operation
3. Operation 3.1 Range of Motion This is an image depicting the range of motion on the BH200 light (all versions) Page 7 of 20... -
Page 9: Powering On & Variable Intensity
3.2 Powering On & Variable Intensity The BH200 uses a single button on the back of the head to power the light on and off, and to adjust the brightness (intensity). Press once to power ON. Press and hold to adjust the intensity. It takes approximately 4 seconds to switch between the highest and lowest settings. -
Page 10: Installation
Locations of nearest The BH200 wall mounted light uses a plug top transformer mains sockets with a DC jack connection. Only the supplied certified power adapter should be used with the light. -
Page 11: Placement And Installation
• Tighten the thumbscrew to secure the light in position. The power supply for the BH200 is a plug top transformer with a DC jack connection, these can be inserted into any standard UK wall socket. Please note, under no circumstances should this product be connected... - Page 12 The light can now be tested by connecting the DC jacks and applying power. Press the switch on the head to power your light on. See page 8 Check arm and head for smooth and correct movement. Your new DARAY light is now ready for use.
-
Page 13: Rail Mounted Version (Bh200Lr)
4.2 Rail mounted version (BH200LR) Remove the light from its packaging. If you have also purchased our XRAIL accessory, hold the rail against the selected location on the wall, bearing in mind the final position and range of travel of the light-head required to project its light patch where it will be needed. -
Page 14: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk... -
Page 15: Product Cleaning & Care Guidelines
Acetone-based cleaners (e.g. nail polish remover, Goo-off™) MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 14 of 20... -
Page 16: Adjustments
5.4 Adjustments The head of the BH200 light has a total turning capability of 320 degrees, attempting to push further may cause damage to the movement and internal wiring of the light. 5.4.2 Detaching Parts De-construction of the lights should be done following a reverse order of the instructions in section 4. -
Page 17: Troubleshooting Guide & Spare Parts
6. Troubleshooting Guide & Spare Parts Problem Possible Cause Corrective Actions Wall Version - Check the plug top adapter is plugged in and switched Power Supply on at the power socket. Press the button on the back of the On/Off/Intensity light to check if the light will power Button on (if dimmed refer to poor light... - Page 18 D16247 thumb screw 12V Plug-top DRK4148 transformer For any SPARE PARTS or TECHNICAL ISSUES phone DARAY’S Service Delivery Team on: +44 (0) 800 878 9864 Opening times 9am–5pm Monday to Thursday (excluding bank holidays) 9am-2:30pm on Friday Or email: support@daray.co.uk...
-
Page 19: Warranty Information
DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns... -
Page 20: Warranty Details
Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement. - Page 21 Service Notes Page 20 of 20...
- Page 22 Page 21 of 20...
- Page 23 Page 22 of 20...
- Page 24 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH +44 (0)800 878 9864 +44 (0)333 321 0973 sales@daray.co.uk www.daray.co.uk...
