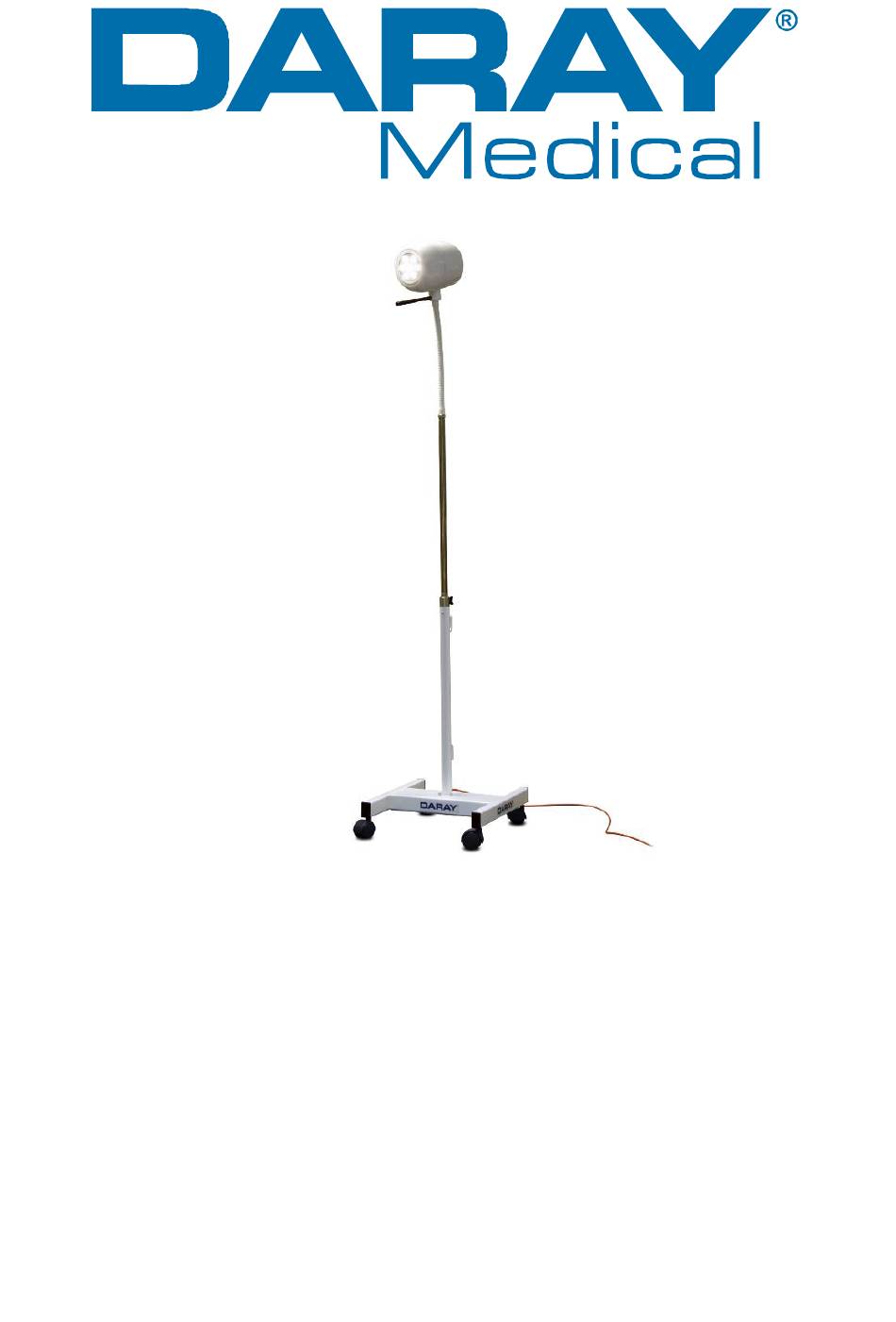

- Page 1 SL180LED Mobile Minor Surgical Light Manual QAM.SL180LEDFM.0315.7...
-
Page 3: Table Of Contents
1. GENERAL DESCRIPTION 2. SPECIFICATION Serial number Product identification 3. OPERATION 4. MAINTENANCE 5. FUSE REPLACEMENT 6. SPARE PARTS RETURNS POLICY WARRANTY WARRANTY REGISTRATION Tel: 0844 375 9000 Fax: 0333 321 0973 email: info@daray.co.uk url: www.daray.com... -
Page 4: General Description
1. GENERAL DESCRIPTION DARAY’s SL180LED is a cost-effective mobile medical minor surgical light utilising LED technology. The mobile base contains a transformer to convert the mains electrical input to a safe, low voltage which is fed to the light-head. The base is very stable and manoeuvrable, and is fitted with 2 locking and 2 free castors;... -
Page 5: Specification
2. SPECIFICATION Light output at 0.75m 0 - 50,000 lux @ 0.75m ± 5% Colour temperature 4,300K natural white light Colour rendering Ra=95 Power consumption LED module operating voltage 24-36V DC Light-head range of vertical 750 mm to 1750 mm movement above floor Input voltage 230V 50Hz... -
Page 6: Operation
3. OPERATION IEC mains connector Safety retainer Illuminated power switch Position the light by moving it using the handle provided on the main stand. Note: The light must not be lifted using the light-head handle or gooseneck. To position the light, hold the upstand and move the light-head using the handle. The front castors on the base have brakes which can be used to help keep the base from moving whilst the light-head position is adjusted. - Page 7 There is a rocker switch on the light-head near the handle. This is a momentary type switch and does not latch. Press the switch once to turn the light ON Press and hold to decrease intensity Press and hold to increase intensity ...
-
Page 8: Maintenance
4. MAINTENANCE WARNING: Do not use strong chemical cleaning agents to sterilise the light. Do not use any abrasive materials to clean the light. The light is not waterproof, so do not use excessive cleaning fluid amounts. Suitably protect hands. Clean the lens by carefully use of a microfibre cloth or other non-abrasive optical lens cleaning material. -
Page 9: Fuse Replacement
5. FUSE REPLACEMENT CAUTION: fuses normally blow for a reason. Investigate likely faults before changing fuses. CAUTION: isolate the unit from the mains before accessing the fuses. Both the live and neutral mains inputs are fused. The fuses are contained in a holder which is part of the IEC inlet mounted on the rear panel of the mobile base. -
Page 10: Spare Parts
6. SPARE PARTS CAUTION: Use only genuine ‘DARAY’ replacement lamps as other types may seriously impair the optical performance of the product. ITEM NO PART NAME TYPE PART NO Fuse 1A 20mm D10873 Microfibre cloth 5 pack DRK4080 PLEASE REFER ANY PROBLEMS INITIALLY TO YOUR DISTRIBUTOR. -
Page 11: Returns Policy
If you send us goods that do not qualify for return, you will invalidate your claim to any refund, and you will be obliged to compensate DARAY Ltd for the cost of return postage and any other reasonable costs incurred processing the goods. -
Page 12: Warranty
Failure to use or install the product in accordance with the manufacturer’s instructions. 5. Nothing in this warranty shall have the effect of restricting or excluding the liability of Daray in respect of: a) Death and personal injury caused by the negligence of Daray, or for fraud;...
