Summary of Contents for Siemens SIMOTICS CONNECT 400

Page 3 Introduction Safety instructions Description Preparation for use SIMOTICS CONNECT 400 Mounting Commissioning Equipment Manual Maintenance Disposal More information SIMOTICS CONNECT 400 Firmware V1.0.3.3 01/2025 A5E54239320B AA...
Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 5: Table Of Contents
Visual inspection........................ 19 Shipping and storage conditions ..................20 Requirements ........................21 Mounting ............................. 23 Attaching the mounting bracket for SIMOTICS CONNECT 400..........24 Mounting SIMOTICS CONNECT 400 ..................27 Commissioning ............................ 29 Commissioning SIMOTICS CONNECT 400................29 Maintenance............................31 Replace the battery ......................
Page 6 Disposal of the Connection Module ..................36 Disposing of the battery..................... 37 More information ..........................39 Product information......................39 Product support ......................... 40 Spare parts ........................41 Technical data........................42 Directives and standards ....................45 Index ..............................49 SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 7: Introduction
Description The product portfolio of Digital Drive Train includes drive simulation solutions and efficient engineering tools as well as the simple connection of drives to the corresponding platforms, smart analytics and drive system services. SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 8: About This Manual
– from mounting through to maintenance. Keep these instructions in a safe place for subsequent use. Read these instructions before you use the SIMOTICS CONNECT 400 Connection Module and follow the instructions and notes carefully. In this way you can ensure safe, problem-free operation and a long service life.
Page 9: Websites Of Third-Party Companies
This document may contain hyperlinks to third-party websites. Siemens is not responsible for and shall not be liable for these websites and their content. Siemens has no control over the information which appears on these websites and is not responsible for the content and information provided there.
Page 10: Service And Support
Service and support You can find additional information about the product: • via ID link • using the Siemens Industry Online Support – Website: SIOS (https://support.industry.siemens.com/cs/ww/en/) – App Industry Online Support (for Apple iOS and Android) Product-specific information via ID link The QR code on your product and on the product packaging contains the ID link.
Page 11: Important Product Information
PC via the support page of the integrated web server. 1.4.2 Compliance with the General Data Protection Regulation Siemens complies with the principles of data protection, in particular the data minimization rules (privacy by design). For this product, this means: The product does not process or store any personal data, only technical function data (e.g.
Page 12 Introduction 1.4 Important product information SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 13: Safety Instructions
Safety instructions General safety instructions Connection Module SIMOTICS CONNECT 400 conforms to the applicable safety regulations according to IEC, VDE and EN. If you have questions about the validity of the installation in the planned environment, please contact your service representative.
Page 14: Qualified Personnel
Safety instructions 2.2 Qualified personnel Qualified personnel Only qualified personnel may perform work on the SIMOTICS CONNECT 400 Connection Module. For the purpose of this documentation, qualified personnel is taken to mean people who fulfill the following requirements: • Through appropriate training and experience, they are able to recognize and avoid risks and potential dangers in their particular field of activity.
Page 15: Cybersecurity Information
Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure...
Page 16: Specific Security Information For Connection Modules
• Change the user name and the password after the first login in step 1/7 "Login data "of the commissioning wizard in application "Connection Module IOT Config". (See Commissioning Manual CONNECTION MODULE IOT & SIMOTICS CONNECT 400 Connection Modules). Disposal of the product Incomplete or unreliable deletion of data can mean that third parties can misuse the data.
Page 17: Description
Drivetrain Analyzer Cloud The SIMOTICS CONNECT 400 or Connection Module IOT Connection Modules connects drive train components with the cloud-based analytics of the Insights Hub application Drivetrain Analyzer. This enables you to improve the productivity, reliability, and service options of the drive train component.
Page 18: Simotics Connect 400

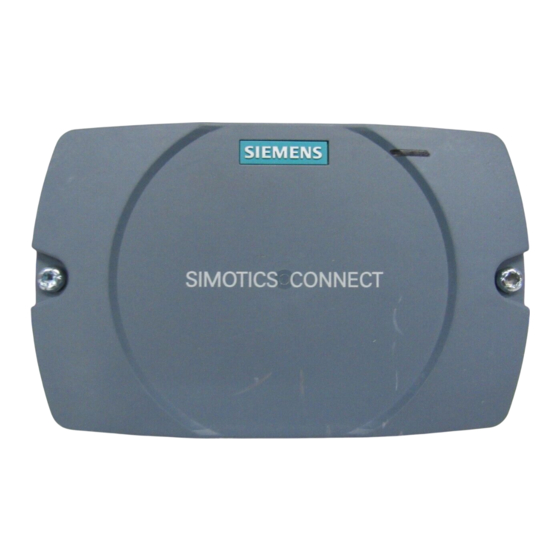

Description 3.2 SIMOTICS CONNECT 400 SIMOTICS CONNECT 400 The SIMOTICS CONNECT 400 Connection Module mounted on the motor captures important operating and status information about the motor. The captured motor data are transmitted to Drivetrain Analyzer via a Wi-Fi interface and analyzed.
Page 19 Description 3.2 SIMOTICS CONNECT 400 In addition to the Connection Module itself, the Connectivity Kit contains the following components: • Metal bracket for mounting on the motor housing • Fixing screws Data security The data are backed up using the following mechanisms: •...
Page 20 Description 3.2 SIMOTICS CONNECT 400 SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 21: Preparation For Use
Preparation for use Visual inspection After installing the motor, visually inspect the SIMOTICS CONNECT 400 Connection Module for any damage. In case of damage, please contact Product Support (Page 40). SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 22: Shipping And Storage Conditions
4.2 Shipping and storage conditions Shipping and storage conditions WARNING Transport of hazardous goods SIMOTICS CONNECT 400 products are hazardous goods according to UN 3091 (https:// support.industry.siemens.com/cs/ww/en/ps/25522/cert). The product contains lithium metal batteries. The batteries contain approximately 2.6 g of lithium. When the product is transported, it is not permissible for the battery connector to be in contact with the electronics module.
Page 23: Requirements
• Functioning Internet connection Download the "Connection Module IOT Config" application from the Google Play Store or the Apple AppStore (see the Commissioning Manual Connection Modules CONNECTION MODULE IOT & SIMOTICS CONNECT 400, Section "Installing the "Connection Module IOT Config" application"). Wi-Fi connection The current firmware version of the Connection Module does not support proxy server configuration.
Page 24 Preparation for use 4.3 Requirements SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 25: Mounting
If the ambient conditions according to IP54 cannot be ensured at the installation location – or if a higher degree of protection is required – then the user must apply additional measures to ensure safe and reliable operation. With production version ≥ FS03, SIMOTICS CONNECT 400 housings have an IP65 degree of protection. Requirement You equip your motor with a SIMOTICS CONNECT 400 Connection Module.
Page 26: Attaching The Mounting Bracket For Simotics Connect 400
Mounting 5.1 Attaching the mounting bracket for SIMOTICS CONNECT 400 Attaching the mounting bracket for SIMOTICS CONNECT 400 The mounting bracket is permanently bonded to the motor. For this purpose, use the mounting bracket supplied in the Connectivity Kit and an approved adhesive (see Note). You can screw (Page 27) the Connection Module onto the mounting bracket either before or after gluing the...
Page 27 Mounting 5.1 Attaching the mounting bracket for SIMOTICS CONNECT 400 Mounting position In the vertical plane, the Connection Module is mounted at the height of the motor shaft and on the side of the motor opposite the motor connection cable. The center point of the Connection Module should be horizontal at ⅓ of the housing length toward the drive end, but it must not protrude beyond the cooling ribs.
Page 28 Mounting 5.1 Attaching the mounting bracket for SIMOTICS CONNECT 400 3. Attach the adhesive to the recommended positions on the inner side of the mounting bracket (see the blue marked areas in the following diagram). Carefully ensure that no adhesive enters the threads for the fastening screws.
Page 29: Mounting Simotics Connect 400
Mounting 5.2 Mounting SIMOTICS CONNECT 400 Mounting SIMOTICS CONNECT 400 For easier handling while mounting on the motor, we recommend first screwing the SIMOTICS CONNECT 400 Connection Module onto the mounting bracket. The battery is not contacted in the delivered condition.
Page 30 Mounting 5.2 Mounting SIMOTICS CONNECT 400 ③ Fixing screws ④ Battery ⑤ Battery plug ⑥ Plug-in socket Procedure Note The tool that you require is a hexalobular internal/Torx® T20 screwdriver. ① ② 1. On the front cover , unscrew the 2 central fixing screws To avoid losing the screws, do not turn the screws completely out of the cover.
Page 31: Commissioning
Commissioning Commissioning SIMOTICS CONNECT 400 Follow the description in the Commissioning Manual CONNECTION MODULE IOT / SIMOTICS CONNECT 400 Connection Modules, Section "Commissioning". SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 32 Commissioning 6.1 Commissioning SIMOTICS CONNECT 400 SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 33: Maintenance
Maintenance Replace the battery Batteries are consumables. For SIMOTICS CONNECT 400, you can order batteries as spare parts (Page 41). Replace the battery in plenty of time in order to guarantee the functionality of the device. Shorter measuring and send cycles result in a shorter battery service life (see Commissioning Manual Connection Modules CONNECTION MODULE IOT &...
Page 34 To do this, use the "Send data to Insights Hub" function in the "Connection Module IOT Config" application. Procedure for SIMOTICS CONNECT 400 1. Visually inspect the new battery for any damage. 2. Release the 2 central fixing screws at the front cover. You can find the relevant mounting elements for the Connection Module in Chapter Mounting (Page 23).
Page 35: Replacing The Connection Module (Hardware)
10.Tighten the 2 central fixing screws on the front cover "hand-tight", applying a maximum torque of 1 Nm. 11.Reconfigure the Connection Module (see Commissioning Manual Connection Modules - CONNECTION MODULE IOT / SIMOTICS CONNECT 400, Section "Commissioning"). SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 36 Maintenance 7.2 Replacing the Connection Module (hardware) SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 37: Disposal
• When disposing of the product or waste that occurs in the individual lifecycle phases, carefully comply with country-specific legislation. • Please contact your local authorities for more information about disposal. SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 38: Disposal Of The Connection Module
(Page 37). 5. Dispose of the Connection Module according to national regulations or recycle it. Comply with the directive of the European Parliament and Counsel regarding old electrical and electronic devices (http://eur-lex.europa.eu/legal-content/DE/TXT/? uri=CELEX%3A32012L0019). SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 39: Disposing Of The Battery
• Dispose of used lithium batteries individually as special waste. • Dispose of used lithium batteries in compliance with all of the local regulations. • Used lithium batteries can be recycled. Recycle your old batteries! SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 40 Disposal 8.2 Disposing of the battery SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 41: More Information
(https://support.industry.siemens.com/cs/ww/en/ view/109769880) • SIMOTICS CONNECT 400 Connectivity Kit (https://support.industry.siemens.com/cs/us/en/ view/109774000) Installation Instruction The installation instructions are supplied with the SIMOTICS CONNECT 400 Connectivity Kit from the factory. • Documents for the SIMOTICS CONNECT 400 Connectivity Kit (https:// support.industry.siemens.com/cs/de/de/ps/9LD2200-0BA00-0AA0) Further information about the motor status monitoring •...
Page 42: Product Support
• Users and specialists from around the world share their experience and knowledge in the Forum. • Information about our local service, repairs, spare parts and much more is provided under "Services". SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 43: Spare Parts
A list of available spare parts is available through the spare parts service "Spares on Web (https:// www.sow.siemens.com/)" by selecting the serial number and the MLFB of the motor. In "Drivetrain Analyzer", you can call the "Support" dialog via the icon in the asset view.
Page 44: Technical Data
SIMOTICS CONNECT 400 with integrated sensors monitors the condition of the motor to provide information about motor operation and to enable optimization of the application and process. SIMOTICS CONNECT 400 can only be used in combination with the Insights Hub application "Drivetrain Analyze Cloud". Monitoring application Data analyses based on the digital twin of the motor and visualization of the motor's condition are provided comprehensively in the Insights Hub application "Drivetrain...
Page 45 Android version through the Google Play Store, iOS version through the Apple App‐ Store Mechanics / material Material of the housing Industrial plastic Durethan® (polyamide, halogen-free, glass-fiber reinforced), ma‐ terial of the cover seal made of silicone Material of the mounting bracket Stainless steel SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 46 Weight of the Connection Module, ap‐ 0.25 kg prox. Weight of the Connectivity Kit, including 0.50 kg mounting accessories, approx. Documentation & information Further technical product information and documentation is available at: www.siemens.com/cm-iot (www.siemens.com/cm- iot) SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 47: Directives And Standards
Frauenauracher Str. 80 91056 Erlangen, Germany SIMOTICS CONNECT 400 complies with the Radio Equipment Regulations UK SI 2017 No. 1206. This equipment must be installed and operated at a minimum distance of 20 cm between the device and users or bystanders.
Page 48 (2) This device must accept any interference received, including interference that may cause un‐ desired operation. Any changes or modifications made to this equipment that are not expressly approved by SIEMENS could void the FCC authority to operate this device.
Page 49 เครื ่ อ งโทรคมนาคมและอุ ป กรณ์ น มี ้ ◌ ี ค วามสอดคล ้องตามมาตรฐานหรื อ ข ้อกํ า หนดทางเทคนิ ค ของ กสทช. Australia and New Zealand (RCM, formerly C-Tick) SIMOTICS CONNECT 400 meets the requirements for RCM, Australia and New Zealand SIMOTICS CONNECT 400 meets the requirements for IMDA, Singapore.
Page 50 More information A.5 Directives and standards KVALITET SIMOTICS CONNECT 400 meets the requirements for KVALITET, Serbia Certification number: P1620134400 SIMOTICS CONNECT 400 meets the requirements of MOC, Israel Certification number: 51-78539 SIMOTICS CONNECT 400 meets the requirements of ICT, Vietman Certification number: C0052180121AE01A3...
Page 51: Index
Certificates and approvals EMC Directive, 45 Data security, 14, 17 Disclaimer of liability, 6 Disposal, 36 Drivetrain Analyzer Cloud, 15 EMC Directive, 45 On-site service, 40 Overview, 16 Qualified personnel, 12 Replacing, 33 Requirements, 21 Retrofit, 27 Safety instructions, 11 Spare part, 33 Spare parts, 41 Spares on Web, 41 SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...
Page 52 Index SIMOTICS CONNECT 400 Equipment Manual, 01/2025, A5E54239320B AA...

This manual is also suitable for:

9ld2900-0aa00-0ab0 9ld2200-0ba00-0aa0
