ICON IP FREEMOTION 730 User Manual page 8

2. With the help of a second person, tip the treadmill
so that the Base (29) is resting flat on the floor.
Pull the Upright Wire (91) and the base ground
wire (A) through the indicated hole in the Base
(29).
Attach the base ground wire (A) to the Base (29)
with a #8 x 1/2" Ground Screw (6).
Make sure that the Grommet (90) is pressed into
the square hole in the Base (29).

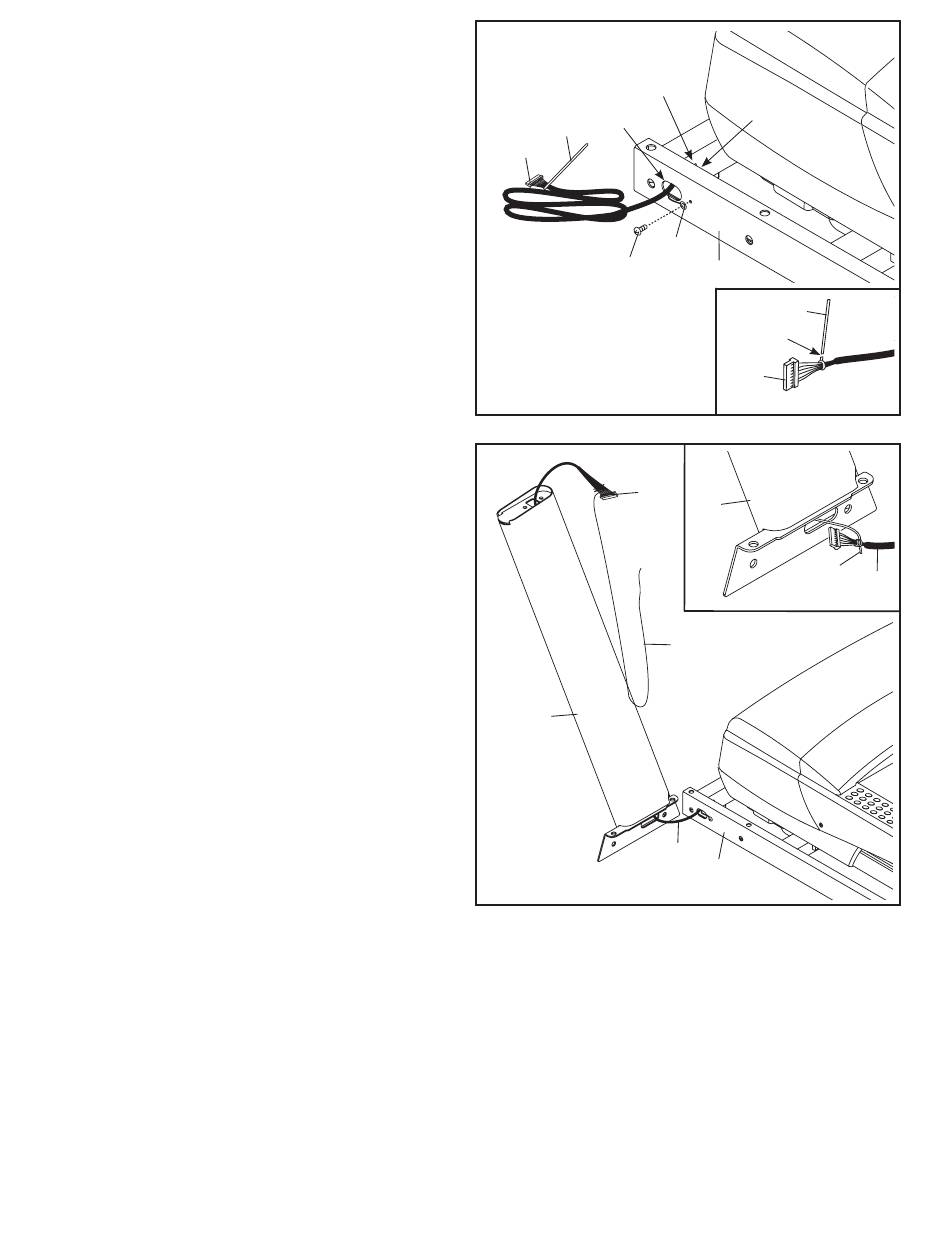

See the inset drawing. Cut the plastic tie near
the Upright Wire (91).
3. Identify the Left Upright (84), which is marked
"Left." Have a second person hold the Left
Upright near the Base (29).
See the inset drawing. Tie the wire tie in the
Left Upright (84) securely around the end of the
Upright Wire (91). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Left Upright.
