Kohler K-7504 Installation Manual

Self-closing and single control faucets

Hide thumbs Also See for K-7504:

Installation Guide

Self-Closing and Single Control Faucets

K-7500

K-7510

K-7524

M product numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

M corresponden a México (Ej.

K-12345M)

Français, page "Français-1"

Español, página" Español-1"

105218-2-AB

K-7504

K-7520

Table of Contents

Need help?

Do you have a question about the K-7504 and is the answer not in the manual?

Page 1 Installation Guide Self-Closing and Single Control Faucets K-7500 K-7504 K-7510 K-7520 K-7524 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page “Français-1” Español, página“ Español-1” 105218-2-AB...
Page 2: Tools And Materials
Before You Begin Observe all local plumbing and building codes. Shut off the main water supply. Kohler Co. reserves the right to make revisions in the design of faucets without notice, as speciﬁed in the Price Book. 105218-2-AB Kohler Co.
Page 3: Faucet Installation
Apply plumbers putty or other sealant according to the manufacturer’s instructions to the underside of the faucet. Then place through the hole. Align faucet spout into basin area. From the underside, slip washer onto faucet shank and tighten nut securely. Kohler Co. 105218-2-AB...
Page 4 Then place through the hole. Align faucet or bubbler spout into basin area. From the underside, slip washer onto faucet or bubbler shank and tighten nut securely. 105218-2-AB Kohler Co.
Page 5: Supply Connections
4. Installation Checkout Turn on the main water supply and check for leaks. Repair as needed. Turn on hot and cold faucet handles and run water for about a minute to remove debris. Turn faucet handles off. Kohler Co. 105218-2-AB...

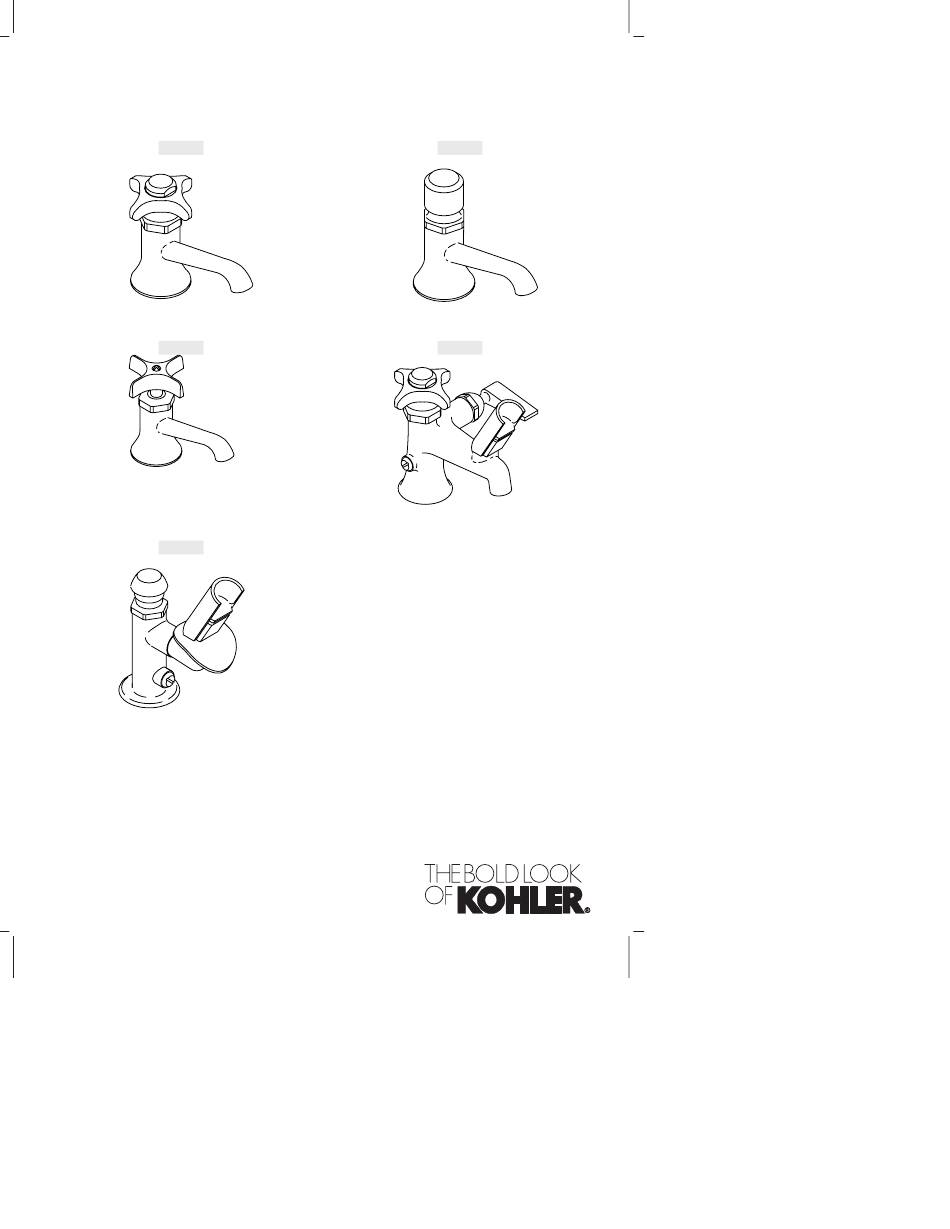

K-7500 K-7510 K-7520 K-7524K-7524-cp
