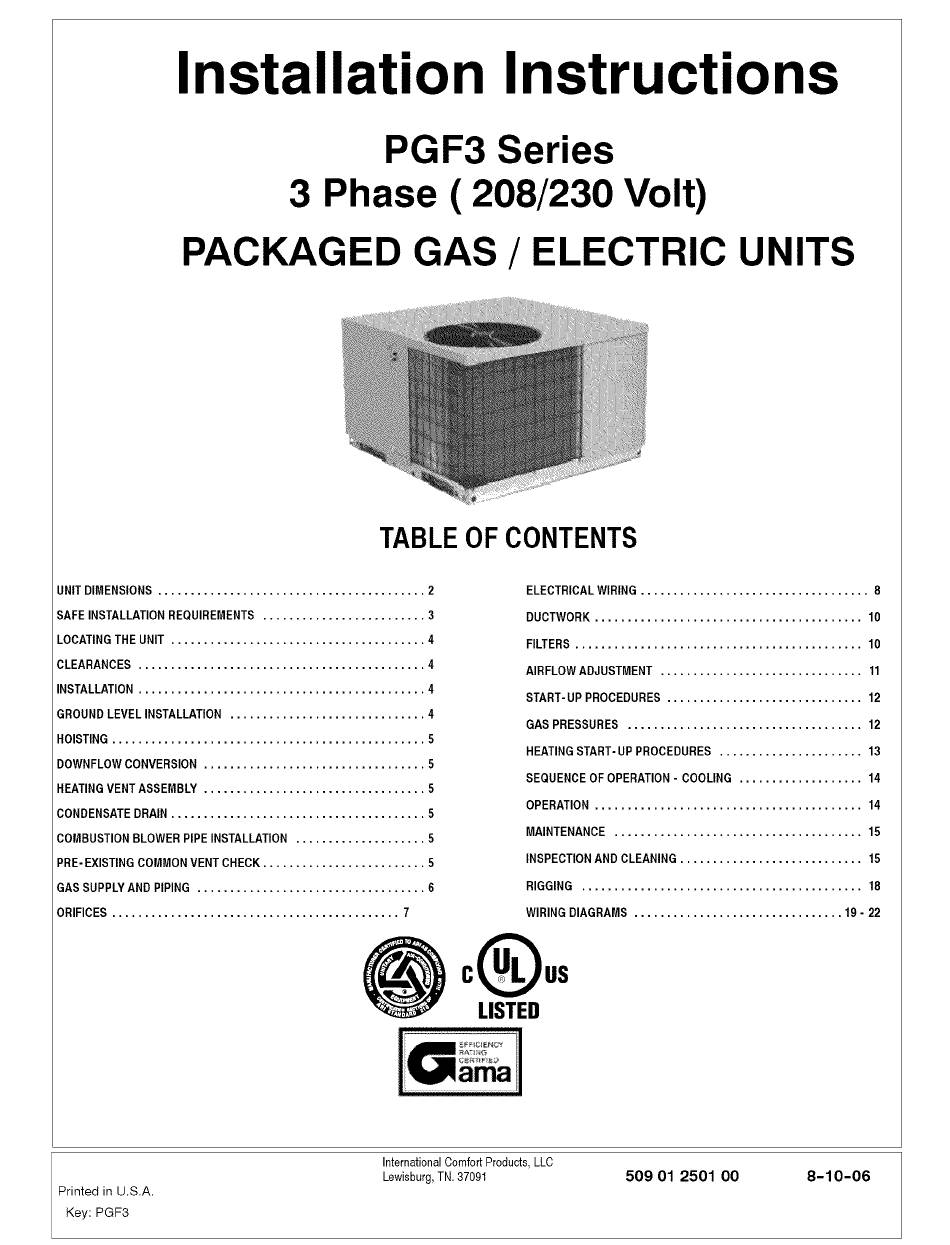

Installation Instructions
PGF3 Series
3 Phase ( 208/230 Volt)
PACKAGED GAS / ELECTRIC UNITS
TABLEOF CONTENTS
UNITDIMENSIONS ......................................... 2 ELECTRICALWIRING ................................... 8
SAFEINSTALLATIONREQUIREMENTS ......................... 3
LOCATING THE UNIT ....................................... 4
CLEARANCES ............................................ 4
INSTALLATION............................................ 4
GROUNDLEVELINSTALLATION .............................. 4
HOISTING................................................ 5
DOWNFLOWCONVERSION .................................. 5
HEATINGVENTASSEMBLY .................................. 5
CONDENSATEDRAIN....................................... 5
COMBUSTIONBLOWERPIPEINSTALLATION .................... 5
PRE-EXISTINGCOMMONVENTCHECK ......................... 5
GAS SUPPLYAND PIPING ................................... 6
DUCTWORK......................................... 10
FILTERS ............................................ 10
AIRFLOWADJUSTMENT ............................... 11
START-UPPROCEDURES .............................. 12
GAS PRESSURES .................................... 12
HEATINGSTART-UPPROCEDURES ...................... 13
SEQUENCEOF OPERATION- COOLING ................... 14
OPERATION......................................... 14
MAINTENANCE ...................................... 15
INSPECTIONAND CLEANING............................ 15
RIGGING ........................................... 18
ORIFICES ............................................ 7 WIRING DIAGRAMS ................................ 19 - 22
CLIS_IED US
international Comfort Products,LLC
Lewisburg, TN. 3 7091 509 01 2501 00 8-1 0-06
Printed in U.S.A.
Key: PGF3
