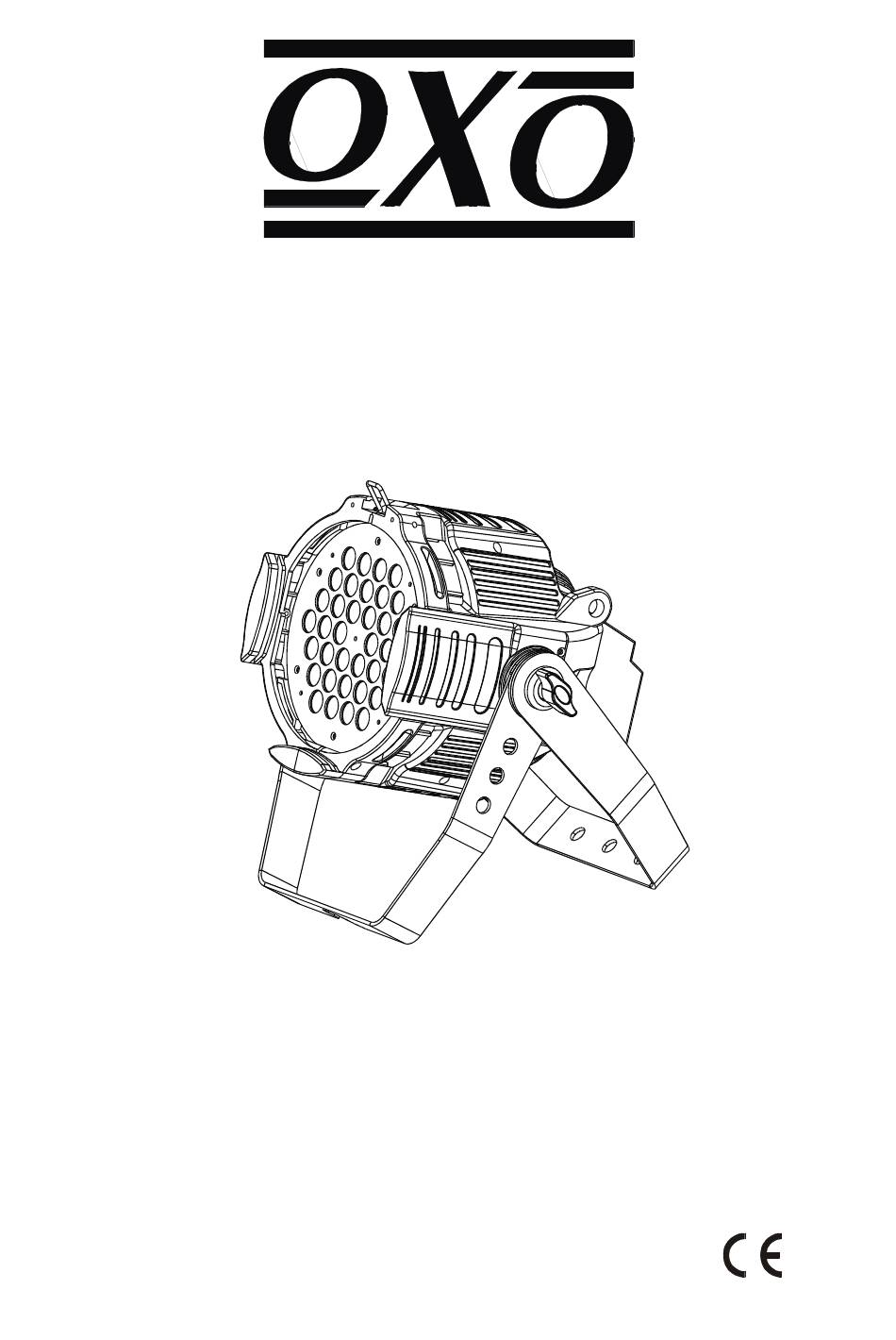

PROFESSIONAL LED LIGHTING USER MANUAL
MultiBEAM LED-Variable
White-Zoom
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

loading
Need help?

Need help?

Do you have a question about the MultiBEAM LED-Variable White-Zoom and is the answer not in the manual?

Questions and answers

Related Manuals for OXO MultiBEAM LED-Variable White-Zoom

Summary of Contents for OXO MultiBEAM LED-Variable White-Zoom

  • Page 1 PROFESSIONAL LED LIGHTING USER MANUAL MultiBEAM LED-Variable White-Zoom KEEP THIS MANUAL FOR FUTURE NEEDS...
  • Page 2 XM471-V1.0 - NR...
  • Page 3 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - consider this manual to be part of the total product...

  • Page 4: Safety Instructions

    • DMX-controlled operation or stand alone operation with Master/Slave-function • Strobe-effect with 1-18 flashes per second • Advantages of LED-technology: Extremely long life, low power consumption, minimal heat emission, defact maintenance free with brilliant light radiation • DMX-control via every standard DMX-controller Overview 4 5 6 7 (1) Housing...

  • Page 5: General Guidelines

    If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. The electric connection must carry out by qualified person.

  • Page 6: Installation Instructions

    The device shall only be used complete with its protective shield. While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. The minimum distance between light-output from the projector and the illuminated surface must be more than 0.1 meter.

  • Page 7: Overhead Rigging

    Cautions: The effect should be installed outside areas where persons may reach it, walk by or be seated. CAUTION! When installing the device, make sure there is no highly inflammable material within a distance of min. 0,3m. Overhead mounting requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device.

  • Page 8: Dmx-512 Control Connection

    DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LED lighting. You can chain multiple LED lighting together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.

  • Page 9: Control Board

    You can set the same starting address for all fixtures or a group of fixtures, or make different address for each fixture individually. If you set the same address, all the units will start to “listen” to the same control signal from the same channel number.
  • Page 10 VALU A001~XXX (AXXX) DMX address setting SLAV ON/OFF (SLAV) Slave setting ADDR Change DMX address via RDMX ON/OFF external controller Automatic Run in Stand ALON (AU-A) AUTO Alone MODE MAST (AU-M) Automatic Run as Master Display the DMX 512 value VALU D–XX D-00 (DXXX) of each channel...

  • Page 11: Main Functions

    Main functions: - Main menu 0 1. Press [MODE/ESC] to enter the main menu "MODE" (display flashing) 2. Press [ENTER] and select "ADDR", “RUN” or "DISP" by pressing [UP] or [DOWN] button. 3. Press [ENTER] for selecting the desired sub menu. - DMX address setting, Slave setting - DMX address setting With this function, you can adjust the desired DMX-address via the Control Board.
  • Page 12 -DMX address setting via controller With this function, you can adjust the desired DMX-address via an external controller. This function can only be activated when the DMX-value of all other channels is set to "0" on the controller. Select “RDMX” by pressing [UP] or [DOWN]. Press [ENTER], the display shows “ON”...
  • Page 13 - Reverse display With this function you can rotate the display by 180°. 1. Select "FLIP" by pressing [UP] or [DOWN] button. 2. Press [ENTER], the display shows “ON” or “OFF”. 3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to “OFF” if you don’t;...
  • Page 14 - Reset With this function you can reset the device via the Control Board. 1. Select “REST” by pressing [UP] or [DOWN] button. 1. Press [ENTER] to reset or Press [MODE/ESC] to return to the main menu. - Restore factory settings With this function you can restore the factory settings of the device.
  • Page 15 2. Press [ENTER], the display shows “XXXX”, “X” stands for the number of hours. 3. Press [ENTER] to confirm or Press [MODE/ESC] to return to the main menu. - Clear fixture time With this function you can clear the running time of the device. 1.
  • Page 16 - Editing the channels of the individual scenes With this function you can edit the program to be called up in Run. a) Editing via the Control Board 1. Select “SC01” by pressing [UP] or [DOWN] button. 2. Press [ENTER], the display shows “SCXX”, “X” stands for the scene no. to be edited. 3.

  • Page 17: Instructions On Use

    INSTRUCTIONS ON USE: DMX channel´s functions and their values (6 DMX channels): Channel Value Function Cool White 0-255 CoolWhite ( 0-Black , 255-100% Cool White ) Warm White 0-255 WarmWhite ( 0-Black , 255-100% Warm White ) Color temperature: 0-10 No Function 11-50 No Function...

  • Page 18: Installation

    Instructions for installing the barn-door and frost filter: For this device, the bar door and the frost filter can be installed separately or together. 1.When only install the frost filter, use the rotating clips on the lens cover to fix it. 2.When only install the bar door, loose the 2 M4 screws on the lens cover, put on the bar door and tighten the screws.
  • Page 19 TECHNICAL SPECIFICATIONS Power supply: AC 100V-240V~，50 / 60Hz Power consumption: max. 120 W Packing dimensions: 40 x 30 x 48 CM Flight case dimensions: 79x76.5x60 cm Net weight: 7 KGS Gross weight: 10KGS（carton packing） 75.5 KGS(flight case packing/6pcs) Remark: errors and omissions for every information given in this manual except. All information is subject to change without prior notice.
