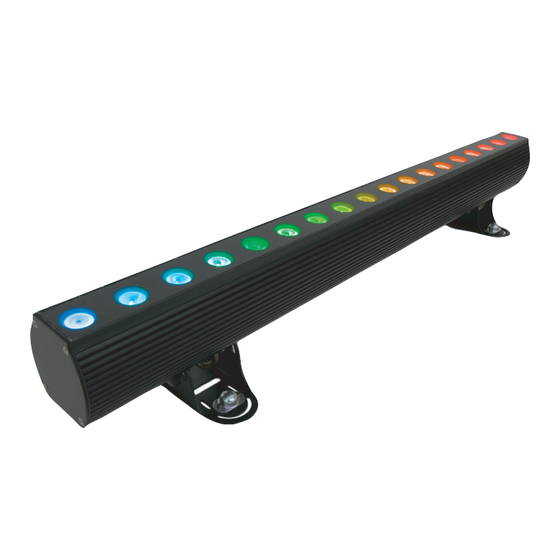

OXO PIXYLINE User Manual

18 full color + white

Table of Contents

Download this manual

Enlarged version

TECHNICAL SPECIFICATIONS

USER MANUAL

Voltage input: AC

100~240

47~63

Hz (

120

V /

Hz - 1.1A, 230V / 50Hz - 0.66A)

PIXYLINE

Consumption: 132W Max

Dimension(LxWxH): L1008 x W210 x H207mm

18 full color + white

Weight: 7.6Kg

Fuse: T2.5 AL 250V

Thank you for purchasing this product.

For your own safety, please read this user

manual carefully before you initially start-up

PIXYLINE - Manual_EN_V1.cdr P1 / 6 20111118 10:32

Table of Contents

Do you have a question about the PIXYLINE and is the answer not in the manual?

Page 1 Dimension(LxWxH): L1008 x W210 x H207mm 18 full color + white Weight: 7.6Kg Fuse: T2.5 AL 250V Thank you for purchasing this product. For your own safety, please read this user manual carefully before you initially start-up PIXYLINE - Manual_EN_V1.cdr P1 / 6 20111118 10:32...
Page 2: Operation Instructions
Every person involved with the installation, operation and maintenance of this device has to : • be qualified 4) When there is no DMX signals to connect under DMX mode,the menu will show “OXO NO DMX • follow the instructions of this manual SIGNAL!”, while there is DMX signals to connect, the menu will back to the original state.
Page 3 Figure 1 MODE LCD DISPLAY OPERATION MACRO MODE When turn on the unit, it will display OXO V1.0 Turn on display OXO V1.0 Color Macro Value Color Macro Value Color Color Edit Company : when pressing the second key or the third one; you can edit, you can choose “...
