Introduction
Thank you for your purchase this 512 DMX Merger. It can be used to merge the two way
DMX signal inputs into one DMX signal output for controlling the lighting devices
conveniently. It provides 3 function modes to be selected, including HTP mode, Backup
mode and Merge mode. And 10-position dip switches are also available, which can be set
starting channel of one way DMX signal output in Merge mode.
Cautions
Be sure that the local power outlet matches that of the required voltage for your unit.
To prevent fire or shock hazard, do not expose this apparatus under a high temperature
or humidity area.
Do not use immediately in the event of malfunction.
Do not dismantle or modify the unit, only by qualified staff.
Technical Specifications
Power Requirement: DC 9V, 300mA Min.( AC/DC adaptor included)
DMX Input:
DMX output:
Dimension:
Weight:
Operation Guide

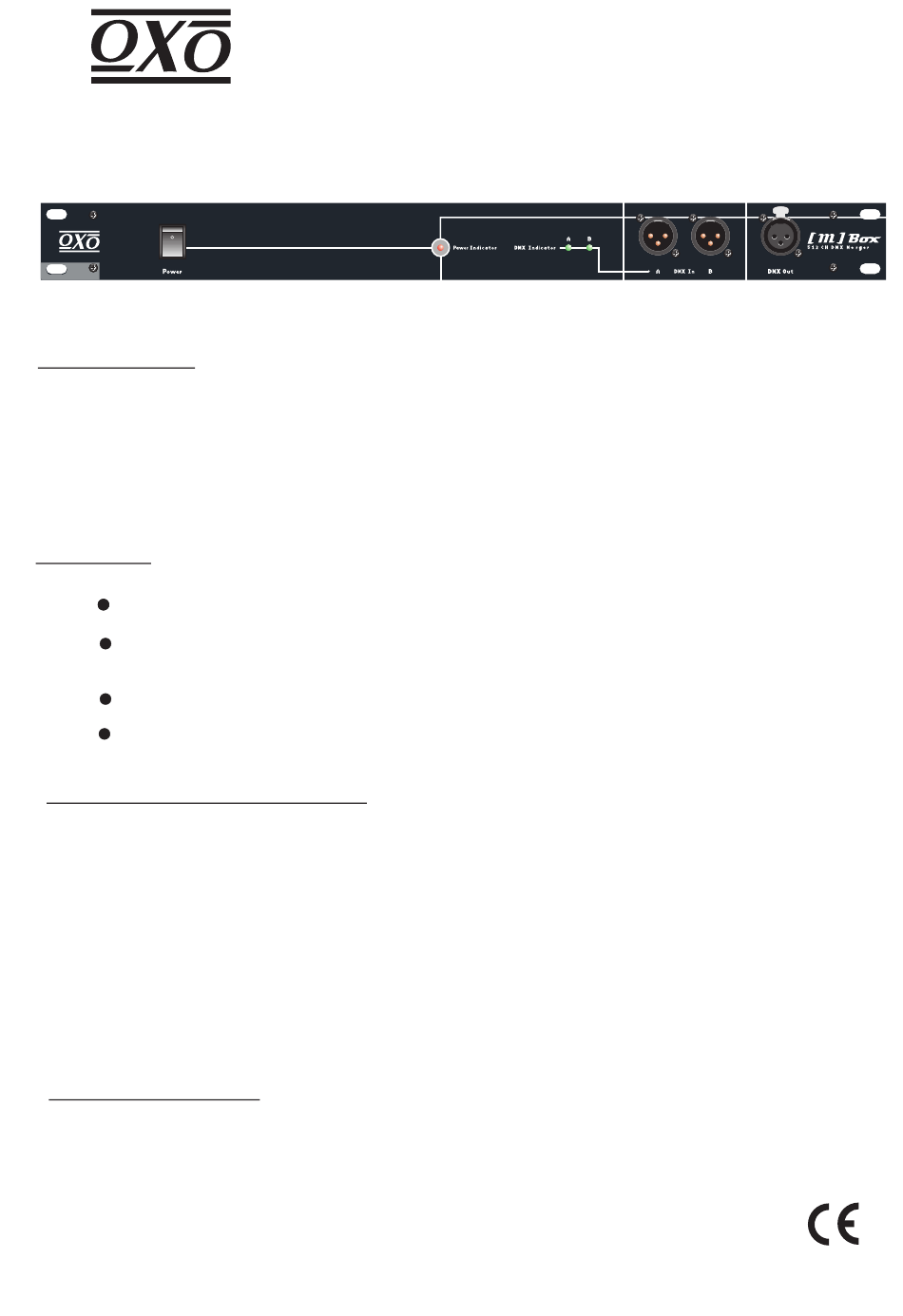

1. Connect the cables of lighting control devices to the male DMX Input interfaces and the
cable of dimmer to female DMX Output interface in this unit.
Note: Be sure that the present connection can be correct.
2.
When turn the Power switch on, the Power indicator will be lit on, indicating that no
power errors occurs in this unit.
[M] Box
USER'S MANUAL
Two 3 pin XLR male sockets on the front panel
( extra t
wo 3 pin XLR male sockets on the rear panel
Two 3 pin XLR female sockets on the front panel
( extra one
3 pin XLR female sockets on the rear panel
482 x 73 x 44mm
1.15 kg
PUSH
PUSH
PUSH
2
2
2
1
1
1
3
3
3
1
1
1
2
2
2
1
1
1
2
2
2
3
3
3
3
3
3
)
)
24-004-1458
Rev 1.0
