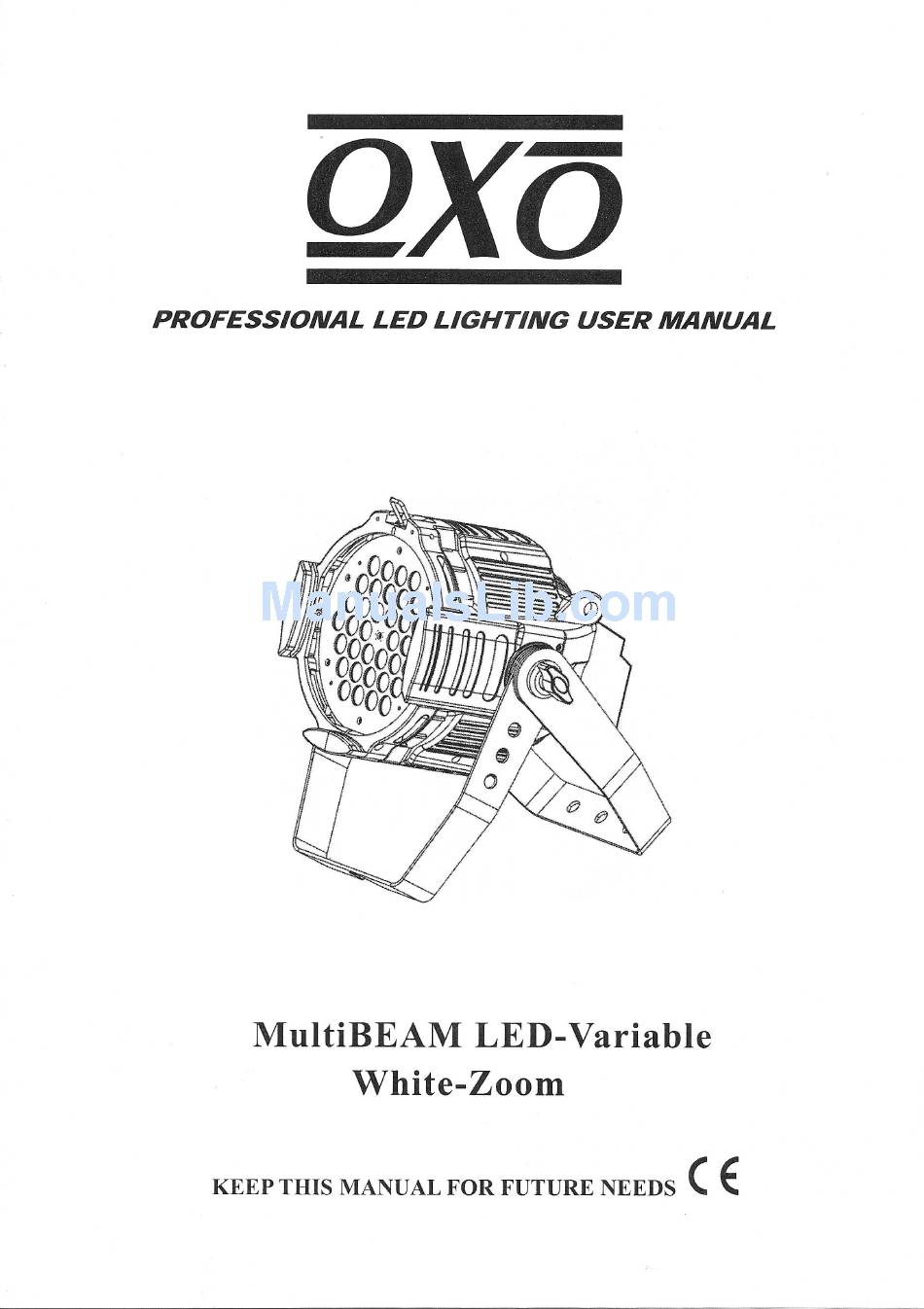

  • Page 1 MultiBEAM LED-Variable White-Zoom KEEP THIS MANUAL FOR FUTURE NEEDS (...
  • Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please r~ad this user manual carefully before installing the device. CAUTION! Keep this device away from rain and moisture! CAUTION! Unplug mains...
  • Page 3 • DMX-controlled operation or stand alone operation with Master/Slave-function • Strobe-effect with I-18 flashes per second • Advantages of LED-technology: Extremely long life, power consumption, minimal heat emission, defact maintenance free with brilliant light radiation • DMX-control via every standard DMX-controller (1) Housing (2) LEDS Floor-stand...
  • Page 4 Important: Damages caused the disregard of this user manual not subject warranty. dealer will not accept liability for any resulting defects problems. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately.
  • Page 5 Lighting effects are not designed for permanent operation. Consistent operation breaks ensure that the device will serve you for a long time without defects. Do not shake the device. Avoid brute force when installing or operating the device. The device shall only be used complete with its protective shield. While choosing the installation-spot, please make sure that the device...
  • Page 6 CAUTION! Before taking into operation for the first time, the installation to be approved by an expert. Cautions: The effect should installed outside areas where persons may reach walk or be seated. CAUTION! When installing the device, make sure there highly inflammable material within distance...
  • Page 7 Connect the provided XLR c;able to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LED lighting. You can chain multiple LED lighting together through serial linking. The cable needed should be two core, screened cable...
  • Page 8 You can set the same starting address for all fixtures or a group of fixtures, or make different address for each fixture individually. [fyou set the same address, all the units will start to "li.sten" to the same control signal from the same channel number.
  • Page 9 liJIII-xxx VALU (AXXX) DMX address setting SLAV ONlI_ (SLAV) Slave setting ADDR C,hange DMX address RDMX II/OFF external controller Automatic Stand ALON (AU-A) AUTO Alone MODE MAST (AU-M) Automatic Run as Master Display the DMX value D-XX VALU 1~'I\j(DXXX) of each channel FLIP Reverse display DISP...
  • Page 10 -lEd 11:1 Press [MODEIESC] to enter main menu "MODE " (display flashing) Press [ENTER] and select "ADDR", "RUN" "DISP" pressing [UP] [DOWN] button. Press [ENTER] for selecting the desired sub menu. With this function, you can adjust the desired DMX-address via the Control Board.
  • Page 11 With this function, you can adjust the desired DMX-address via an exte\TIal controller. This function can only be activated when the DMX-value of all other channels is set to "0" controller. Select "RDMX" pressing [UP] or [DOWN]. Press [ENTER], the display shows "ON" or "OFF". Press [UP] to select "ON"...
  • Page 12 °1 F' , Reverse display ,- I I With this function you ~an rotate display Select "FLIP" by pressing [UP] or [DOWN] button. Press [ENTER], the display shows "ON" or "OFF". Press [UP] to select "ON" if you wish to enable this function or press [DOWN] button to "OFF"...
  • Page 13 1_ Reset With this function. you can reset the device via the Control Board. Select "REST" by pressing [UP] or [DOWN] button. Press [ENTER] to reset or Press [MODE/ESC] return to the main menu. 5-' - " 0'- - C - Restore factory settings With this function you can restore factory settings of...
  • Page 14 lIiE-1 ',,-CI_/l,,/I/I QOOCI '- "' _ -,_, ,- L '-' L"_"_' - ~ _, '-E-I- "F-F- /I,i / L L ,- LII' Press [MODEIESC] to enter the main menu (display flashing). Press [UP] or [DOWN] button to select "TIME". "-CI L' ,- L _Fixture running time With this function you can...
  • Page 15 -Auto.Save With this function you can automatic save the number of steps Program Run. Select "REC" by pressing [UP] or [DOWN] button. number from I Press [ENTER], display shows "RE.XX", "XX" stands for the 400. Press [ENTER] to confmn or Press [MODEIESC] to return to the main...
  • Page 16 DMX channel's functions and their values (6 DMX channels): Function Channel Value Cool White 0-255 CoolWhite (O-Black, 255-100% Cool White) Warm White 0-255 Warm White (O-Black, 255-100% Warm White) Color temperature: 0-10 No Function II-50 Function 51-90 Co lor_ temperature(3 200 K) Color temperature( 4300K)

  • Page 17: Cleaning And Maintenance

    Instructions for installing the barn-door and frost filter: this device, the bar door frost filter can installed separately or together. When only install frost filter, rotating lens cover to fix When only install door, loose the 2 screws on the lens cover, put on...

  • Page 18: Technical Specifications

    TECHNICAL SPECIFICATIONS Power supply: AC 100Y-240Y-, 60Hz Power consumption: max. 120 W Packing dimensions: 48 CM Flight case dimensions: 79x76.5x60 cm Net weight: 7 KGS Gross weight: 10KGS (carton packing) 75.5 KGS(flight case packing/6pcs) Remark: errors and omissions for every information given in this manual except.
