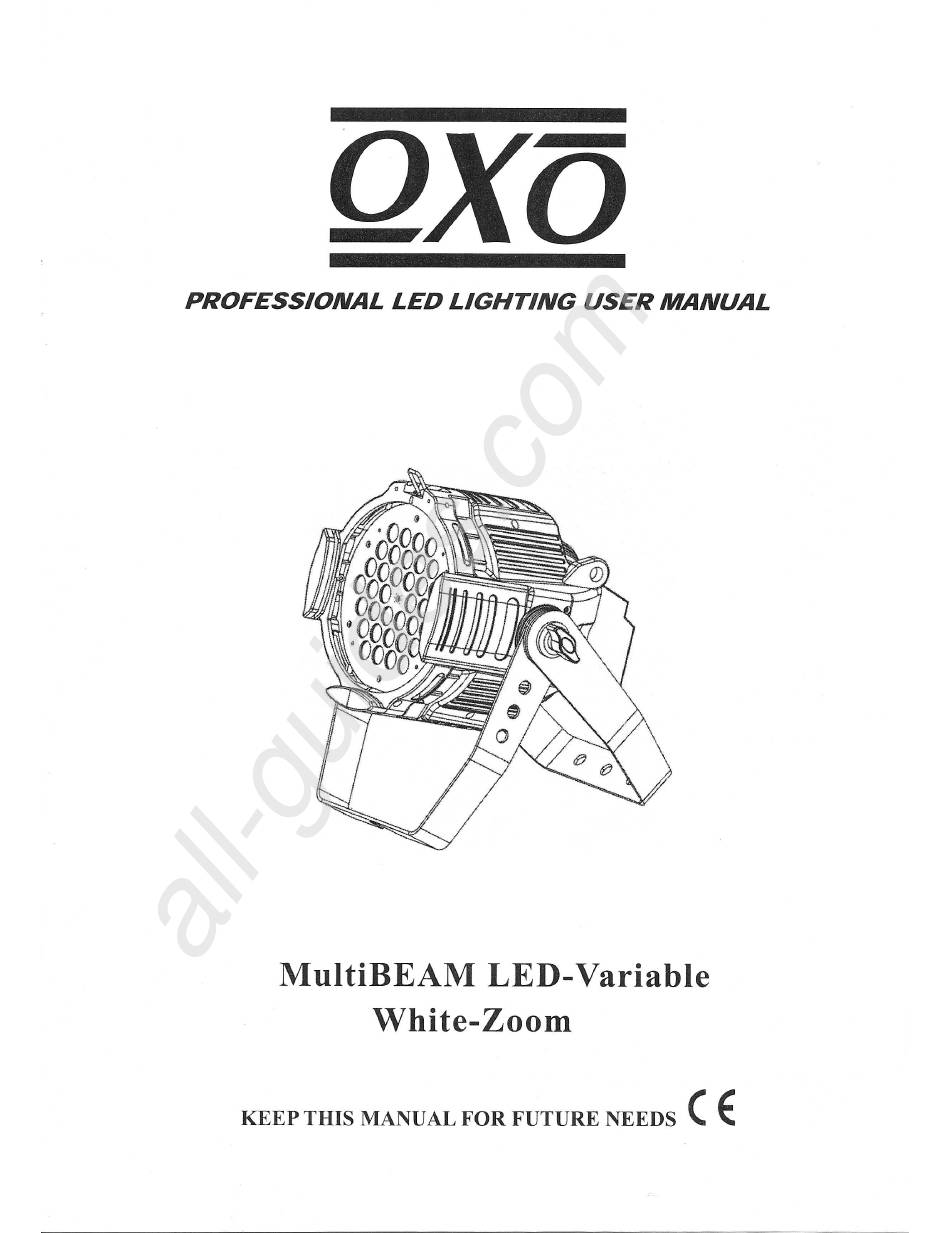

MultiBEAM LED-Variable
White-Zoom
E
KEEP THIS MANUAL FOR FUTURE NEEDS (

Advertisement

loading
Need help?

Need help?

Do you have a question about the MultiBEAM LED-Variable White-Zoom and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OXO MultiBEAM LED-Variable White-Zoom

Summary of Contents for OXO MultiBEAM LED-Variable White-Zoom

  • Page 1 All manuals and user guides at all-guides.com MultiBEAM LED-Variable White-Zoom KEEP THIS MANUAL FOR FUTURE NEEDS (...
  • Page 2 All manuals and user guides at all-guides.com Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please r~ad this user manual carefully before installing the device. CAUTION! Keep this device away from rain and moisture! CAUTION!
  • Page 3 All manuals and user guides at all-guides.com • DMX-controlled operation or stand alone operation with Master/Slave-function • Strobe-effect with I-18 flashes per second • Advantages of LED-technology: Extremely long life, power consumption, minimal heat emission, defact maintenance free with brilliant light radiation •...
  • Page 4 All manuals and user guides at all-guides.com Important: Damages caused the disregard of this user manual not subject warranty. dealer will not accept liability for any resulting defects problems. If the device has been exposed to temperature changes due to environmental changes, do not switch it on...
  • Page 5 All manuals and user guides at all-guides.com Lighting effects are not designed for permanent operation. Consistent operation breaks ensure that the device will serve you for a long time without defects. Do not shake the device. Avoid brute force when installing or operating the device.
  • Page 6 All manuals and user guides at all-guides.com CAUTION! Before taking into operation for the first time, the installation to be approved by an expert. Cautions: The effect should installed outside areas where persons may reach walk or be seated. CAUTION! When installing the device, make sure...

  • Page 7: Dmx-512 Connection With Dmx Terminator

    All manuals and user guides at all-guides.com Connect the provided XLR c;able to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LED lighting. You can chain multiple LED lighting together through serial linking.
  • Page 8 All manuals and user guides at all-guides.com You can set the same starting address for all fixtures or a group of fixtures, or make different address for each fixture individually. [fyou set the same address, all the units will start to "li.sten"...
  • Page 9 All manuals and user guides at all-guides.com liJIII-xxx VALU (AXXX) DMX address setting (SLAV) Slave setting SLAV ONlI_ ADDR C,hange DMX address RDMX II/OFF external controller Automatic Stand ALON (AU-A) AUTO Alone MODE MAST (AU-M) Automatic Run as Master Display the DMX value D-XX VALU...
  • Page 10 All manuals and user guides at all-guides.com -lEd 11:1 Press [MODEIESC] to enter main menu "MODE " (display flashing) Press [ENTER] and select "ADDR", "RUN" "DISP" pressing [UP] [DOWN] button. Press [ENTER] for selecting the desired sub menu. With this function, you can adjust the desired DMX-address via the Control Board.
  • Page 11 All manuals and user guides at all-guides.com With this function, you can adjust the desired DMX-address via an exte\TIal controller. This function can only be activated when the DMX-value of all other channels is set to "0" controller. Select "RDMX" pressing [UP] or [DOWN].
  • Page 12 All manuals and user guides at all-guides.com °1 F' , Reverse display ,- I I With this function you ~an rotate display Select "FLIP" by pressing [UP] or [DOWN] button. Press [ENTER], the display shows "ON" or "OFF". Press [UP] to select "ON" if you wish to enable this function or press [DOWN] button to "OFF"...
  • Page 13 All manuals and user guides at all-guides.com 1_ Reset With this function. you can reset the device via the Control Board. Select "REST" by pressing [UP] or [DOWN] button. Press [ENTER] to reset or Press [MODE/ESC] return to the main menu.
  • Page 14 All manuals and user guides at all-guides.com lIiE-1 ',,-CI_/l,,/I/I QOOCI '- "' _ -,_, ,- L '-' L"_"_' - ~ _, '-E-I- "F-F- /I,i / L L ,- LII' Press [MODEIESC] to enter the main menu (display flashing). Press [UP] or [DOWN] button to select "TIME".
  • Page 15 All manuals and user guides at all-guides.com -Auto.Save With this function you can automatic save the number of steps Program Run. Select "REC" by pressing [UP] or [DOWN] button. Press [ENTER], display shows "RE.XX", "XX" stands for the number from I 400.
  • Page 16 All manuals and user guides at all-guides.com DMX channel's functions and their values (6 DMX channels): Function Channel Value Cool White 0-255 CoolWhite (O-Black, 255-100% Cool White) Warm White 0-255 Warm White (O-Black, 255-100% Warm White) Color temperature: No Function 0-10 II-50 Function...

  • Page 17: Installation

    All manuals and user guides at all-guides.com Instructions for installing the barn-door and frost filter: this device, the bar door frost filter can installed separately or together. When only install frost filter, rotating lens cover to fix When only install door, loose the 2 screws...

  • Page 18: Technical Specifications

    All manuals and user guides at all-guides.com TECHNICAL SPECIFICATIONS Power supply: AC 100Y-240Y-, 60Hz Power consumption: max. 120 W Packing dimensions: 48 CM Flight case dimensions: 79x76.5x60 cm Net weight: 7 KGS Gross weight: 10KGS (carton packing) 75.5 KGS(flight case packing/6pcs) Remark: errors and omissions for...
