NOTE:
Please consult a qualified electrician if you are not certain of the installation.
CAUTION:
Before starting the installation, disconnect the power by turning off the circuit breaker or by
removing the fuse in the fuse box. Use silicon caulking to seal between wall plate and wall. Leave
bottom unsealed so moisture can drain out.
1.

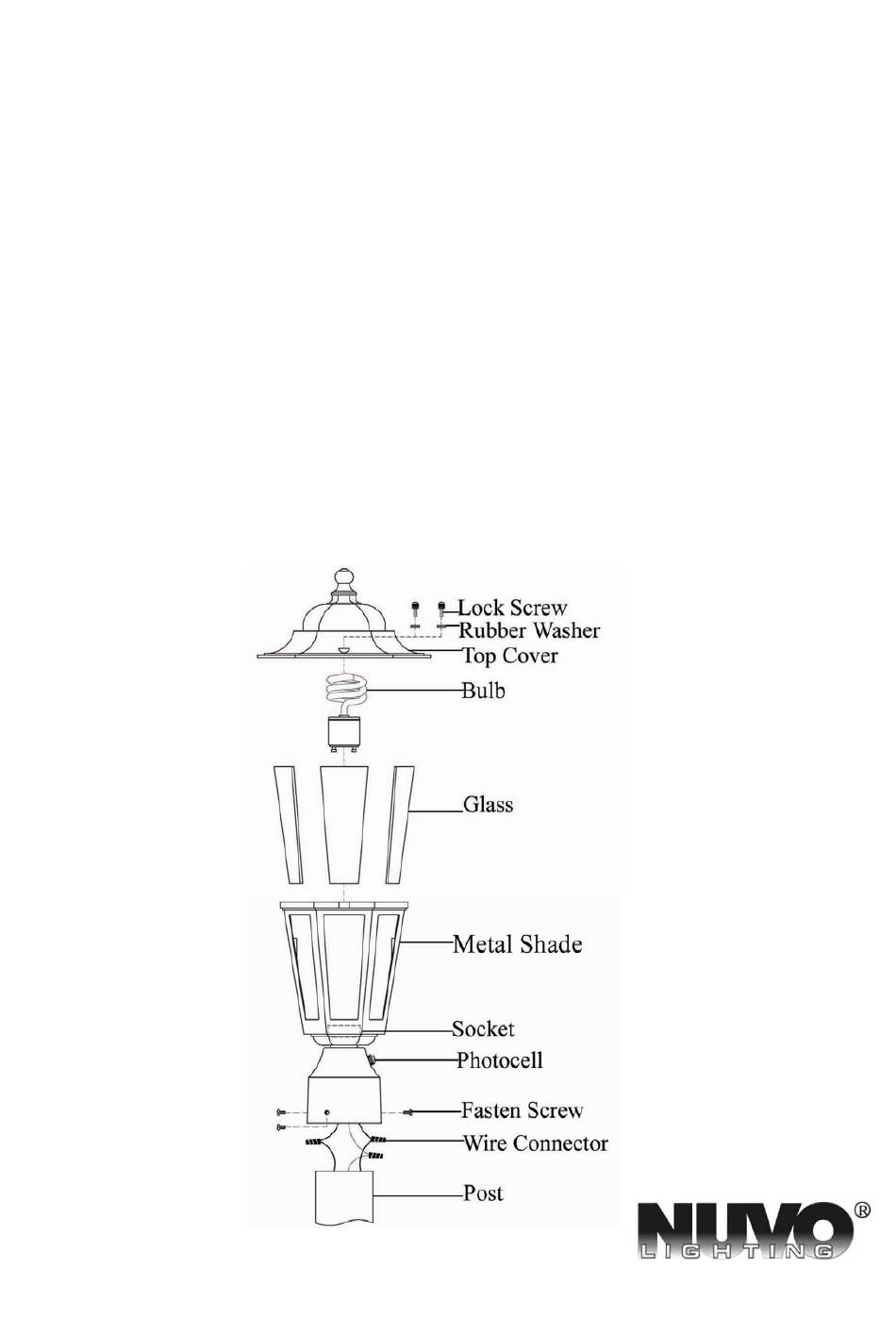

Open the part bag, then pull the power supply wires out from the post and the fixture wires out from
the fixture body, attached the power supply ground wire to the fixture ground wire. And attach the
wires together by connecting black to black and white to white. Cover connection using wire
connector.
2.
Secure the fixture body to the post using the fasten screws provided（3PCS）.
3.
Install the bulb (Included).
4.
Place the glass into metal shade firmly. Use the screws and rubber washers provided to attach the top
cover onto metal shade.
5.
Turn on power. The photocell will automatically light on from dusk to dawn and will
automatically light off from dawn to dusk.
ASSEMBLY INSTRUCTION
SKU#60/2211/2212/2213
A Satco Product
