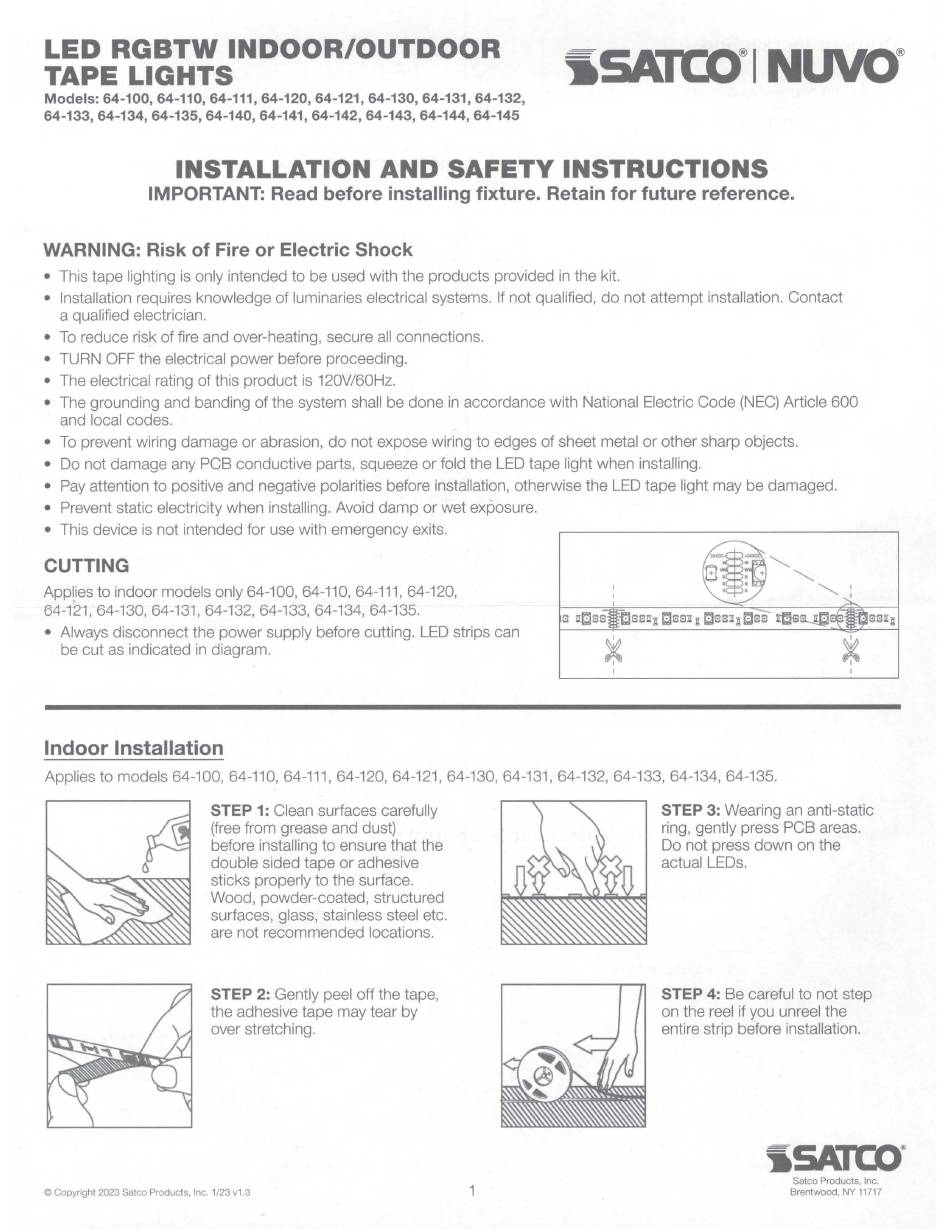

Satco NUVO 64-100 Installation And Safety Instructions

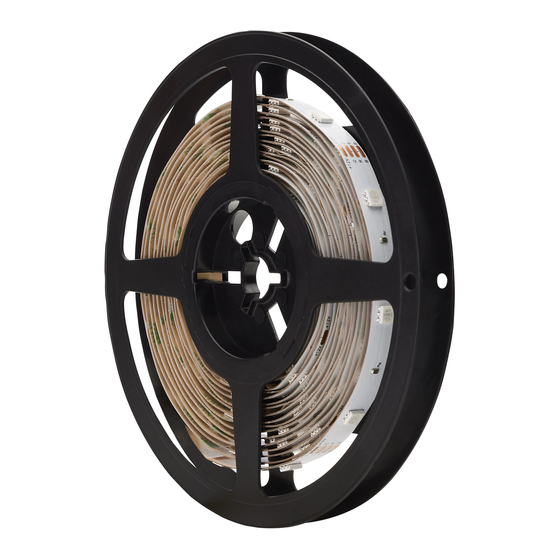

LED RGBTW INDOOR/OUTDOOR
TAPE LIGHTS
Models: 64-100, 64-110, 64-111, 64-120, 64-121, 64-130, 64-131, 64-132,
64-133, 64-134, 64-135, 64-140, 64-141, 64-142, 64-143, 64-144, 64-145
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
WARNING: Risk of Fire or Electric Shock
• This tape lighting is only intended to be used with the products provided in the kit.
• Installation requires knowledge of luminaries electrical systems. If not qualified, do not attempt installation. Contact
a qualified electrician.
• To reduce risk of fire and over-heating, secure all connections.
• TURN OFF the electrical power before proceeding.
• The electrical rating of this product is 120V/60Hz.
• The grounding and banding of the system shall be done in accordance with National Electric Code (NEC) Article 600
and local codes.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• Do not damage any PCB conductive parts, squeeze or fold the LED tape light when installing.
• Pay attention to positive and negative polarities before installation, otherwise the LED tape light may be damaged.
• Prevent static electricity when installing. Avoid damp or wet exposure.
• This device is not intended for use with emergency exits.
CUTTING
Applies to indoor models only 64-100, 64-110, 64-111, 64-120,
64-121, 64-130, 64-131 , 64-132, 64-133, 64-134, 64-135.
• Always disconnect the power supply before cutting. LED strips can
be cut as indicated in diagram.
Indoor Installation
"-
X
I
X
I
Applies to models 64-100, 64-110, 64-111 , 64-120, 64-121, 64-130, 64-131 , 64-132, 64-133, 64-134, 64-135.
STEP 1: Clean surfaces carefully
(free from grease and dust)
before installing to ensure that the
double sided tape or adhesive
sticks properly to the surface.
Wood, powder-coated, structured
surfaces, glass, stainless steel etc.
are not recommended locations.
STEP 2: Gently peel off the tape,
the adhesive tape may tear by
over stretching.
©
Copyright 2023 Satco Products, Inc. 1/23 v1.3
STEP 3: Wearing an anti-static
ring, gently press PCB areas.
Do not press down on the
actual LEDs.
STEP 4: Be careful to not step
on the reel if you unreel the
entire strip before installation.
Satco Products, Inc.
Brentwood, NY 11 717
