NOTE:
Please consult a qualified electrician if you are not certain of the installation.
CAUTION:
Before starting the installation, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box.
1.
Pull the power supply wires out from the post and the fixture wires out from the fixture body,and attach the
wires tighter by connecting black to black and white to white. Cover connection using wire connector.
Attached the power supply ground wire to the fixture ground wire.
2.
Secure the fixture body to the post using the wood screws provided.
Install the bulb (No included).
3.
4.
Place the glasses and attach into fixture body. Using the head screw screwing the top cover onto fixture
body.
5.
Turn on the power.

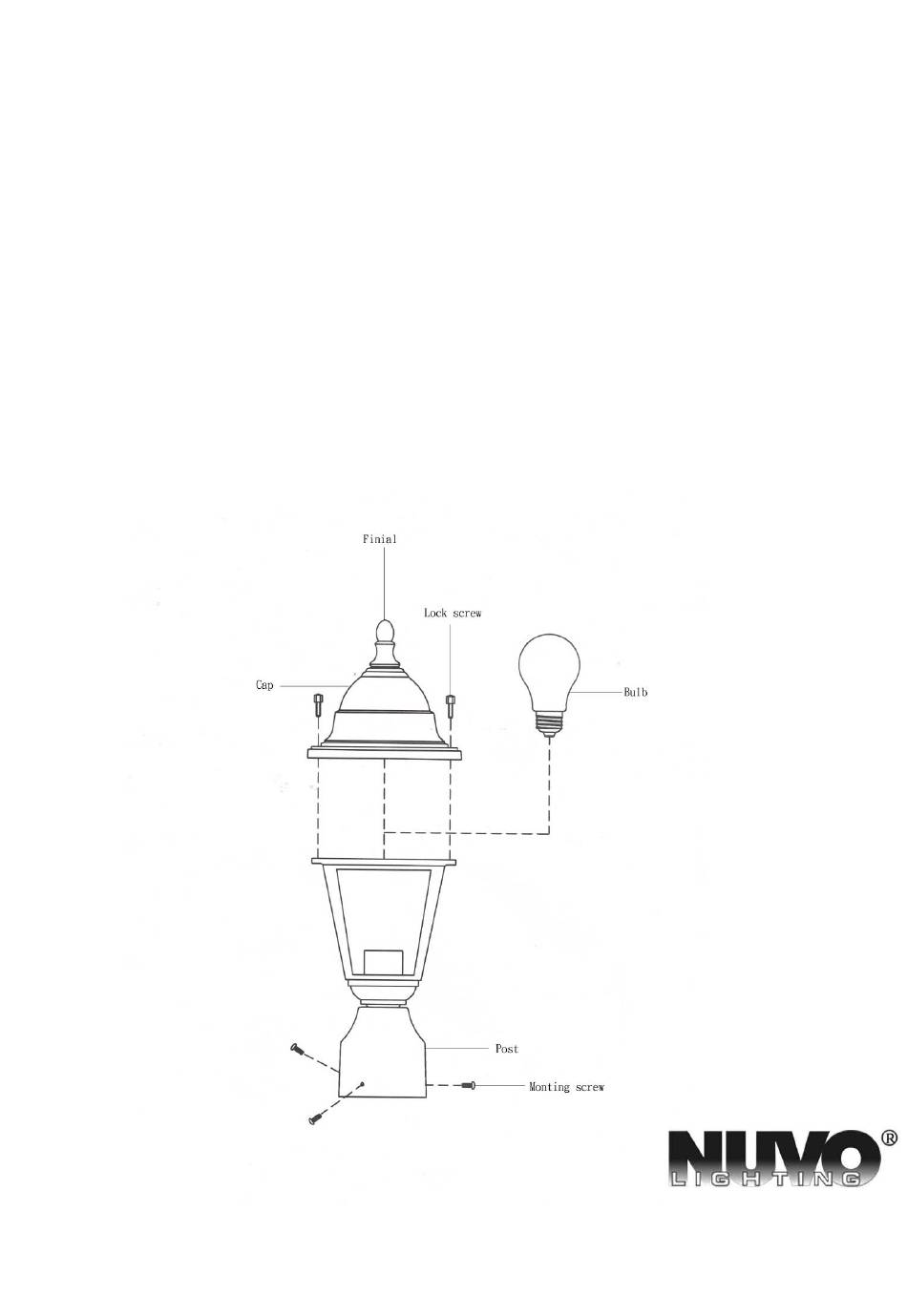

ASSEMBLY INSTRUCTION
SKU#60/546/547/548

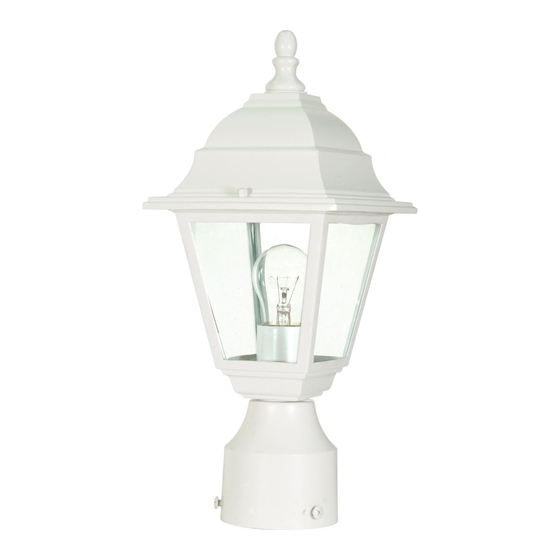

A Satco Product
