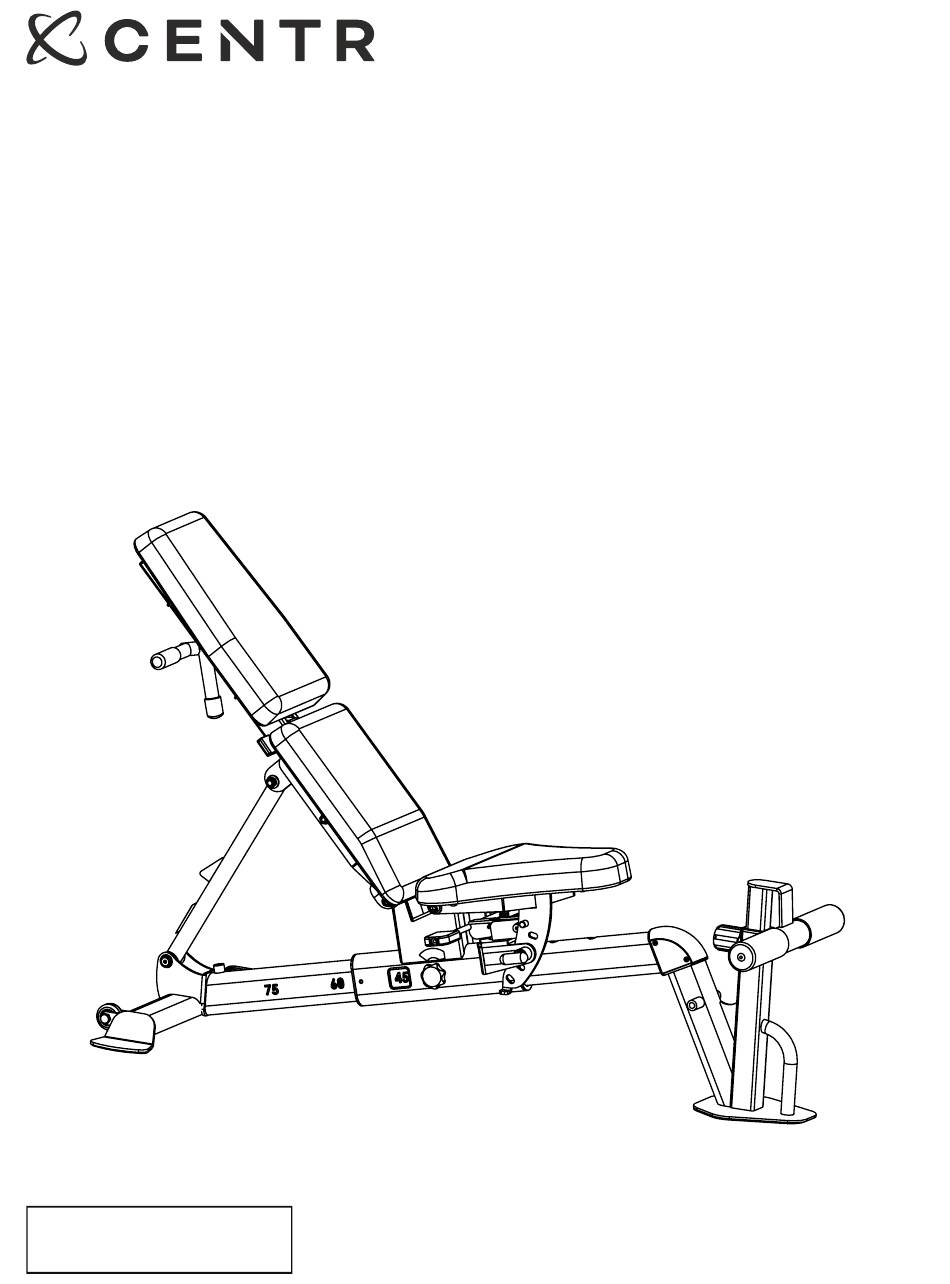

- Page 1 Model: FID7.1 ITM. / ART. xxxxxxx USER MANUAL CENTR INSPIRE SERIES FID7 PRO ADJUSTABLE BENCH IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Record Serial Number Here MADE IN CHINA 80084-EN-V2024-09-09...
-
Page 3: Product Warranty
WELCOME Welcome to Centr and thanks for your purchase. We're happy to have you. Please inspect your product and contact us right away if anything is missing or damaged. Your equipment also comes with access to Centr's digital membership, unlocking tools that will fuel your active lifestyle and well-being. -
Page 4: Important Safety Notice
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise bench is built for optimum safety. However, certain precautions apply whenever you use a piece of exercise equipment. Be sure to read the entire manual before you assemble or use your bench. In particular, note the following safety precautions: Keep children and pets away from the bench at all times. -
Page 5: Hardware Pack
HARDWARE PACK 80084-EN-V2024-09-09 Pg. 5... -
Page 6: Package Contents
PACKAGE CONTENTS Pg. 6 80084-EN-V2024-09-09... - Page 7 STEP 1 INSTALL REAR STABILIZER (15) TO ASSY CENTER FRAME (44), SECURE WITH BOLT (6), WASHER (4,5) AND BOLT (3). HARDWARE REQUIRED: #6, M10x105 Buttonhead Screw, 1pc. #4, M10 Flat Washer, 1pc. #5, M10 Spring Washer, 1pc. #3, M10x30 Flathead Screw, QTY 1. 80084-EN-V2024-09-09 Pg.
- Page 8 STEP 2 BACK PIVOT REMOVE PRE-INSTALLED SHAFT (9) , BOLTS (8), WASHERS (7). INSTALL REAR PIVOT TUBE TO REAR STABILIZER (15), INSERT THRU SHAFT (9). SECURE WITH BOLTS (8), WASHERS (7). NOTE: PLEASE REMOVE NUT AND WASHER FROM BOLT, PRIOR TO ASSEMBLING. HARDWARE REQUIRED: #8 M8 X 20MM FLAT HEAD SCREW QTY 2 #7 M8 COUNTERSANK WASHER, QTY 2...
-
Page 9: Front Installation
STEP 3 FRONT INSTALLATION INSTALL FRONT ASSY (1) SECURE WITH BOLTS (11). INSTALLATION IS EASIER BY SLIDING SEAT ASSEMBLY TO THE 75 POSITION HARDWARE REQUIRED: #11, M8x25 Buttonhead Screw, 2pc. 80084-EN-V2024-09-09 Pg. 9... -
Page 10: Step 4 Endcap Installation
STEP 4 ENDCAP INSTALLATION INSTALL ENDCAP (32) SECURE WITH 4 BOLTS (13). HARDWARE REQUIRED: #13, M4 Self Tapping Screw, 4pc. Pg. 10 80084-EN-V2024-09-09... - Page 11 FEATURES MID PAD ARM INSERT TO ADJUST ANGLE ACCESSORY INPUT LIFT HANDLE SEAT BACK SUPPORT BAR POSITION BAR TO SUPPORT SEAT BACK WHEN IN THE FLAT OR DECLINE POSITION. SEAT ADJUSTMENT PIN SLIDDER LOCK LEVER ADJUSTMENT SLIDDER LOCK KNOBB WHEELS 80084-EN-V2024-09-09 Pg.
- Page 12 LIVE AREA 2.1 m 7 ft 7 pi 2.1 m 7 ft 1.8 m 7 pi 6 ft 6 pi Pg. 12 80084-EN-V2024-09-09...
- Page 13 BENCH DIMENSIONS (MM) 1482 1085 80084-EN-V2024-09-09 Pg. 13...
-
Page 14: Label Placement
WARNING AVERTISSEMENT ADVERTENCIA VARNING USE ONLY GENUINE CENTR REPLACEMENT PARTS. FAILURE TO DO SO WILL VOID WARRANTY AND COULD RESULT IN SERIOUS INJURY. THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT. TO MINIMIZE THE RISK, ALWAYS FOLLOW THESE RULES. -
Page 15: Exploded View
EXPLODED VIEW 80084-EN-V2024-09-09 Pg. 15... -
Page 16: Parts List
PARTS LIST ITEM NO. PART NUMBER DESCRIPTION QTY. 104131 Weldment, Front Short 103884 Assy, Back Support Tube 104743 Bolt, M10 x 20 x 1.5 FH 104985 Washer, M10 Curved 104747 Washer, M5 Split Lock 104720 Bolt, M10 X 100 X 1.5 BH 104741 Washer, M8 Countersank 104687... -
Page 17: Leg Extension
AVAILABLE ATTACHMENTS (NOT INCLUDED) PREACHER CURL LEG EXTENSION 80084-EN-V2024-09-09 Pg. 17... - Page 18 Pg. 18 80084-EN-V2024-09-09...
