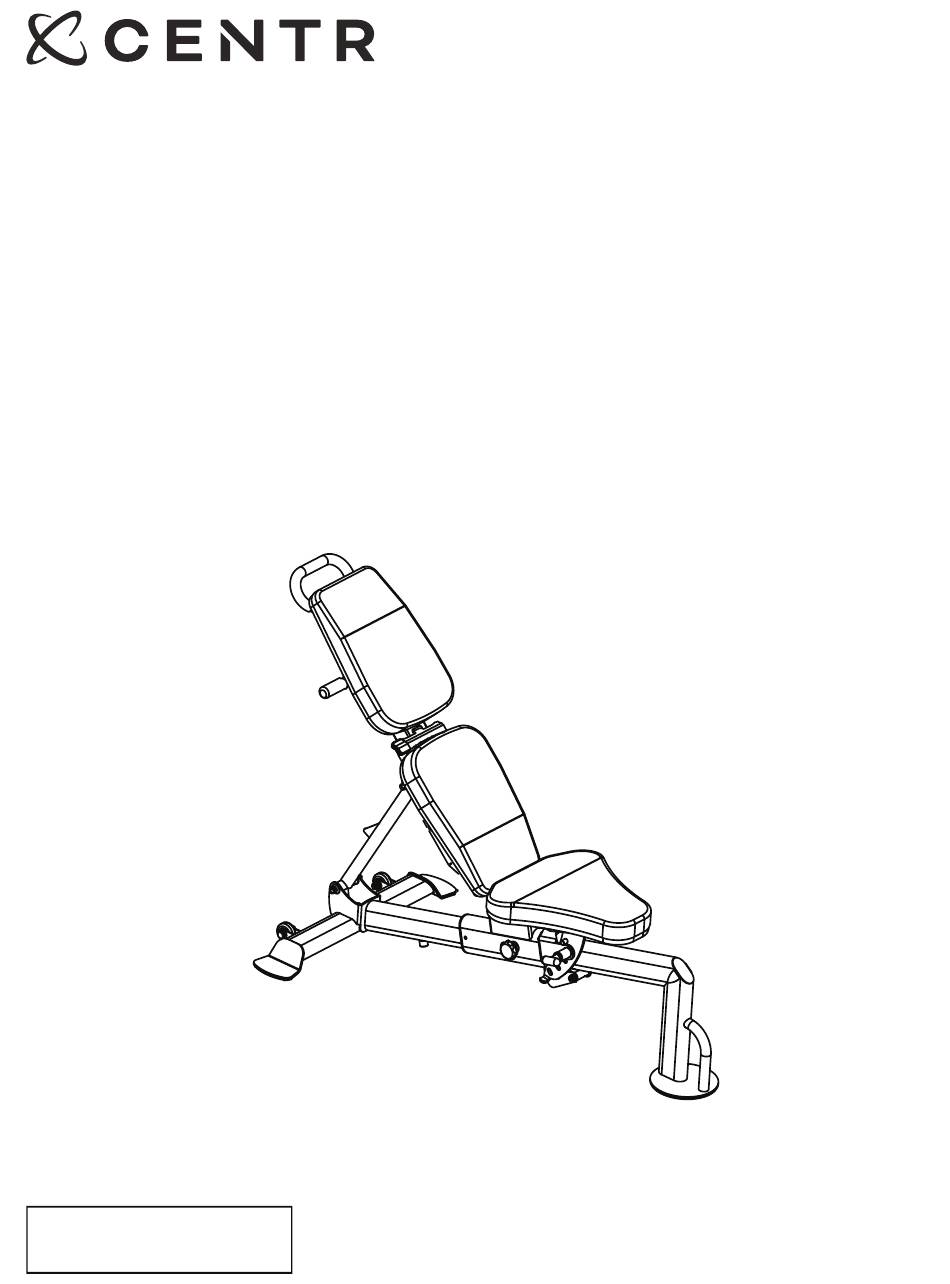

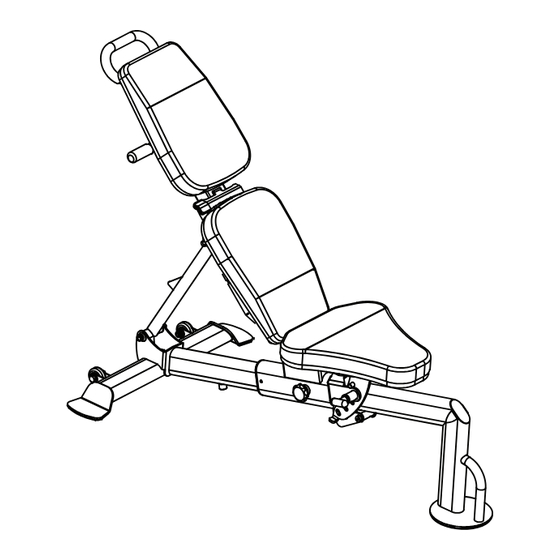

- Page 1 Model: FID5.1-C2 USER MANUAL MULTI-ADJUSTABLE FLAT-INCLINE-DECLINE WORKOUT BENCH Record Serial Number Here MADE IN CHINA V06262023-C2...
-
Page 3: Product Warranty
WELCOME Welcome to Centr and thanks for your purchase. We're happy to have you. Please inspect your product and contact us right away if anything is missing or damaged. Your equipment also comes with access to Centr's digital membership, unlocking tools that will fuel your active lifestyle and well-being. -
Page 4: Important Safety Notice
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise bench is built for optimum safety. However, certain precautions apply whenever you use a piece of exercise equipment. Be sure to read the entire manual before you assemble or use your bench. In particular, note the following safety precautions: Keep children and pets away from the bench at all times. -
Page 5: Hardware Pack
HARDWARE PACK FID5.1PK STEP 1 (46) M10x105mm Buttonhead Screw, 1pc. (47) M10x30mm Flathead Screw, 1pc. (55) M10 Flat Washer, 1pc. (60) M10 Spring Washer, 1pc. STEP 2 (38) M12x95mm Hex Bolt, 1pc. (50) M12 Locknut, 1pc. (57) M12 Flat Washer, 2pc. STEP 3 (43) M8x25 Buttonhead Screw, 11pc. - Page 6 STEP 1 HARDWARE REQUIRED: #46, M10x105 Buttonhead Screw, 1pc. #55, M10 Flat Washer, 1pc. #60, M10 Spring Washer, 1pc. #47, M10x30 Flathead Screw, 1pc. Pg. 6 V06262023-C2...
- Page 7 STEP 2 HARDWARE REQUIRED: #38, M12x95 Hex Bolt, 1pc. #57, M12 Flat Washer, 2pc. #50, M12 Locknut, 1pc. V06262023-C2 Pg. 7...
- Page 8 STEP 3 Inspire Badge Centr Badge HARDWARE REQUIRED: #43, M8x25 Buttonhead Screw, 11pc. #56, M8 Flat Washer, 11pc. #59, M8 Spring Washer, 11pc. Pg. 8 V06262023-C2...
- Page 9 FEATURES Grab Handle Seat Back Lever Mid-pad arm Pull up to adjust angle Inserts into holes in the of seat back. frame to adjust angle. Seat back support bar Seat adjustment pin Pull pin towards you to adjust angle of seat. LIFT HANDLE WHEELS Slider lock knob...
- Page 10 ADDITIONAL SEAT BACK ADJUSTMENT If you desire to adjust the seat back to the full 75 degree position, unscrew the stopper using the #6 Allen Wrench from position 1 and place it in position 2. Although it may become harder for the bench to slide when it is all the way in this position. Pg.
- Page 11 LIVE AREA 2.1 m 7 ft 7 pi 1.8 m 2.1 m 6 ft 7 ft 6 pi 7 pi V06262023-C2 Pg. 11...
- Page 12 BENCH DIMENSIONS 141.2 cm 55.6 in 55.6 po 68 cm 26.8 in 26.8 po 45.3 cm 17.8 in 17.8 po 113.3 cm 44.6 in 44.6 po 33.2 cm 13.1 in 13.1 po Pg. 12 V06262023-C2...
-
Page 13: Label Placement
LABEL PLACEMENT 7-10-028 7-10-029 7-10-025 7-10-029 7-10-026 7-10-027 7-10-030 V06262023-C2 Pg. 13... -
Page 14: Exploded View
EXPLODED VIEW 60 55 Pg. 14 V06262023-C2... -
Page 15: Parts List
PARTS LIST Part Number Description Qty. 2010010307073001 Main Frame 2010010307073002 Back Frame 2010010307073003 Seat Frame 2010010307073004 Back Pad Frame Left 2010010307073005 Back Pad Frame Right 2010010307073030 Sliding Frame Assembly 2010010307073024 Back Pad Support 2010010307073008 Pin Pivot Assembly 2010010307073009 Lock Lever 2010010307073011 Support Frame 2010010307073012... - Page 16 Part Number Description Qty. 4060020100040 M5 Locknut 4060040100001 M10 Flat Washer 4060040100003 M8 Flat Washer 4060040100126 M12 Flat Washer 4060040100058 M6 Flat Washer 4060040300015 M8 Spring Washer 4060040300014 M10 Spring Washer 4060040400059 E-Clip 4060010500143 Tapping Screw 4080070000209 Grip Cover 4040050200051 Round End Cap Tool List 4060180200004...
- Page 17 V06262023-C2 Pg. 17...
