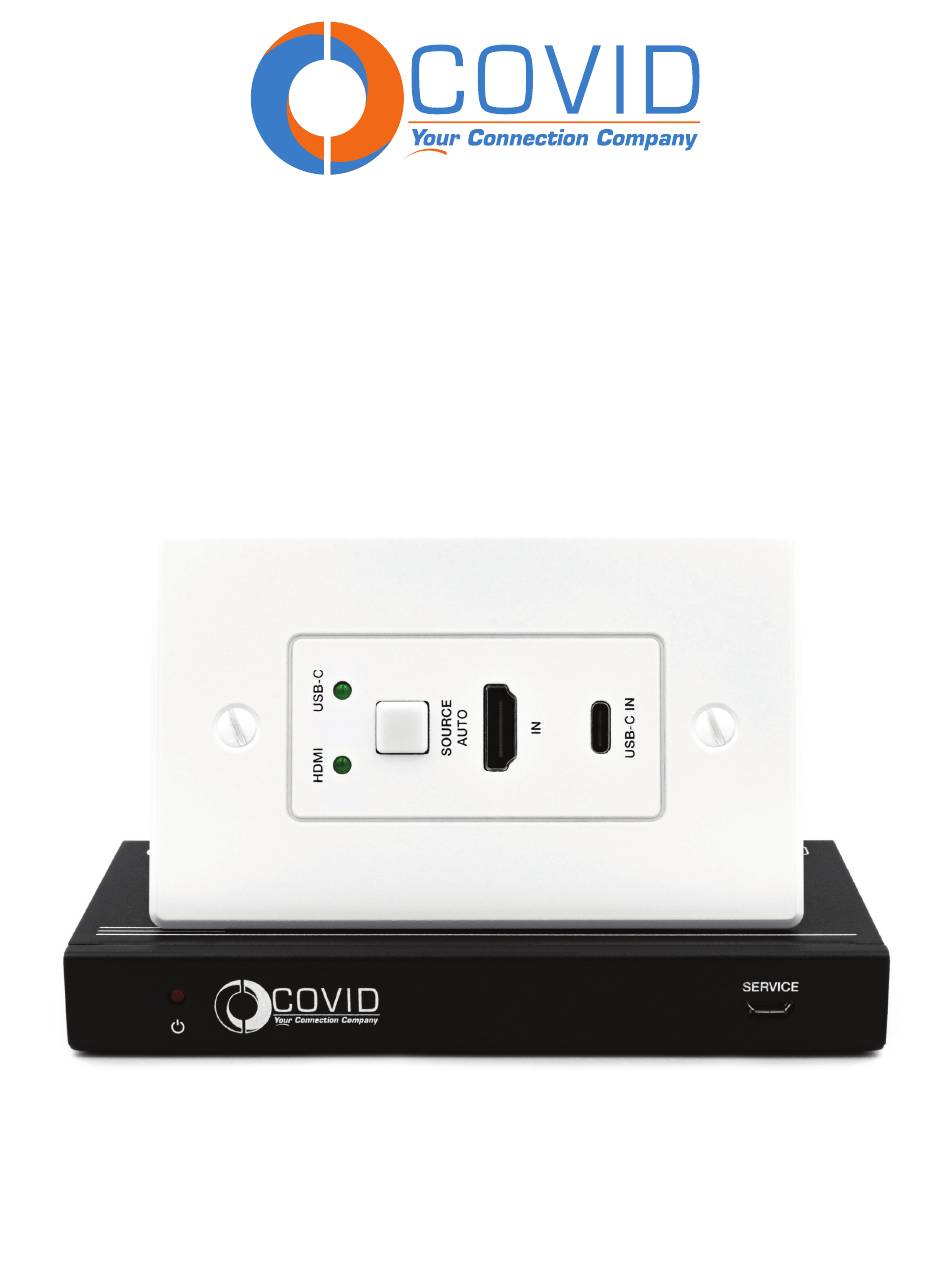

- Page 1 4K 60Hz 2x1 HDBaseT Extender EHB-232-W & THBW-232-W (HDBaseT Set) (Transmitter Only) User Manual Version 1.0...
-
Page 2: Table Of Contents
Thank You for Purchasing This Product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge Protection Device Recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
Introduction This product can extend HDMI/USB-C signals up to 150m/492ft for 1080P@60Hz, or 120m/394ft for 4K@60Hz (4:4:4) via a single CAT6/6A cable. The wall-plate transmitter features one HDMI input and one USB-C input port, supporting manual and automatic switching modes. The box receiver features one HDMI output and one 3.5mm de-embedding audio output. It supports bi-directional PoC and bi-directional IR, RS-232 signal transmission. The multifunctional extender can be widely used in scenarios of demonstration, video conference, multimedia teaching and other HDMI signal extension occassions. 2. Features ֍ DP 1.4, HDCP 2.2 compliant ֍ The transmitter wall plate supports two inputs: 1× HDMI and 1× USB-C ֍ Video resolutions up to 4K@60Hz 4:4:4, and bandwidth up to 18Gbps ֍ Supports auto switching and manual switching ֍ The maximum transmission distance via CAT6/6A cable is up to:... -
Page 4: Package Contents
3. Package Contents THBW-232-W (Transmitter Only): ֍ 1× 4K60 2x1 HDBT Extender (Transmitter) ֍ 1× 24V/1A Multinational Power Supply ֍ 1× 2-pin 3.5mm Phoenix Connector (Male) ֍ 2× 3-pin 3.5mm Phoenix Connector (Male) ֍ 1× User Manual EHB-232-W (Transmitter & Receiver): ֍ 1× 4K60 2x1 HDBT Extender (Transmitter) ֍ 1× 18Gbps HDMI over HDBaseT Extender (Receiver) ֍ 1× 24V/1A Multinational Power Supply ֍ 1× IR Blaster Cable (1.5m) ֍ 1× IR Wideband Receiver Cable (1.5m) ֍ 1× 2-pin 3.5mm Phoenix Connector (Male) ֍ 2× 3-pin 3.5mm Phoenix Connector (Male) ֍ 1× 3-pin 3.81mm Phoenix Connector (Male) ֍ 2× Mounting Ear ֍ 4× Machine Screw (KM3*4) ֍ 1× User Manual... -
Page 5: Specifications
4. Specifications... -
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel... -
Page 7: Receiver Panel
5. Operation Controls and Functions 5.2 Receiver Panel... -
Page 8: Ir Pin Definition
6. IR Pin Definition IR Receiver and Blaster pin’s definitions: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 9: Application Example
7. Application Example...
