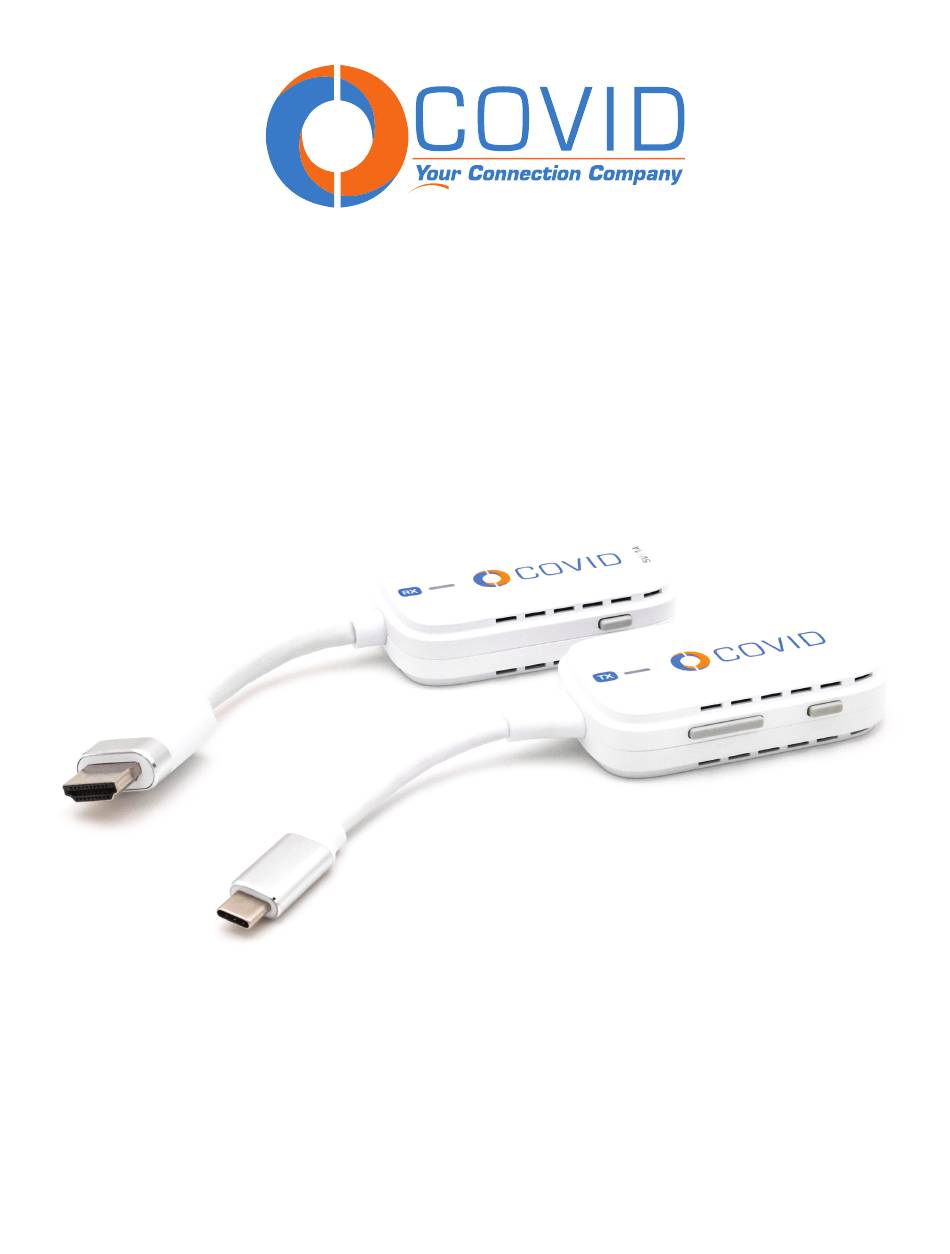

- Page 1 Wireless Extender RX & TX ECW-100 User Manual Ver 2.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction Transmit video signals wirelessly to TVs or monitors from a variety of sources. Compatible with Set-top boxes and Blu-ray disc players. No app installation or WiFi network needed for device usage. This pocket sized transmitter and receiver kit is portable and lightweight, making it easy to transmit and cast your screen on the go.
- Page 4 2. Features Watch Everything on a Bigger Screen Plug and Play, Simple Setup without Installing App Impressive OS and port compatibility Multitask with Mirror or Extend Mode Pocket Size 3. Specifications Antenna: 1T1R (on board) Wi-Fi: 5Ghz Input: 5V / 1A Transmitter Interface: USB Type-C Receiver Interface: HDMI Output Wattage: 5 Watts...
- Page 5 4. Package Contents Before using this unit, please check the packaging and make sure the following items are contained in the shipping carton: 1) Transmitter ---------------------1PC 2) Receiver ------------------------1PC 3) User Manual -------------------1PC 5. Device Layout Transmitter - Easily mirror whatever shows on your laptop or mobile screen. USB-C Start / Stop Transmission...
- Page 6 6. Operation Instructions First connect the Receiver to the HDMI port on the TV or monitor, and then connect power to the USB-C port by an independent power 5V / 1A adapter. Plug the Transmitter into the USB-C port on a laptop or mobile device. Wait a few seconds until the ashing light on the transmitter remains lit, and it will begin transmitting to the receiver automatically.
- Page 7 7. How To Pair Transmitter With Receiver 1. Turn on pairing mode for the receiver 1) Power up the receiver by an external adapter (5V / 1A). 2) Plug the receiver into the HDMI port on the monitor. 3) Press the reset button on receiver for 2 seconds. Release when the screen shows “Release the button to pair”...
- Page 8 8. Device Updates 1. Enabling receiver SSID and PSK 1) Connect the receiver to the monitor, and then connect the USB-C end to a power source (5V / 1A). 2) Press the reset button on the receiver, and the monitor will display the SSID and PSK of the receiver, then release the button.
