- Page 1 USB 3.2 Gen 1 Extender Box to Box EUB-220 User Manual Version 1.0...
-
Page 2: Table Of Contents
Thank You for Purchasing This Product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge Protection Device Recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction

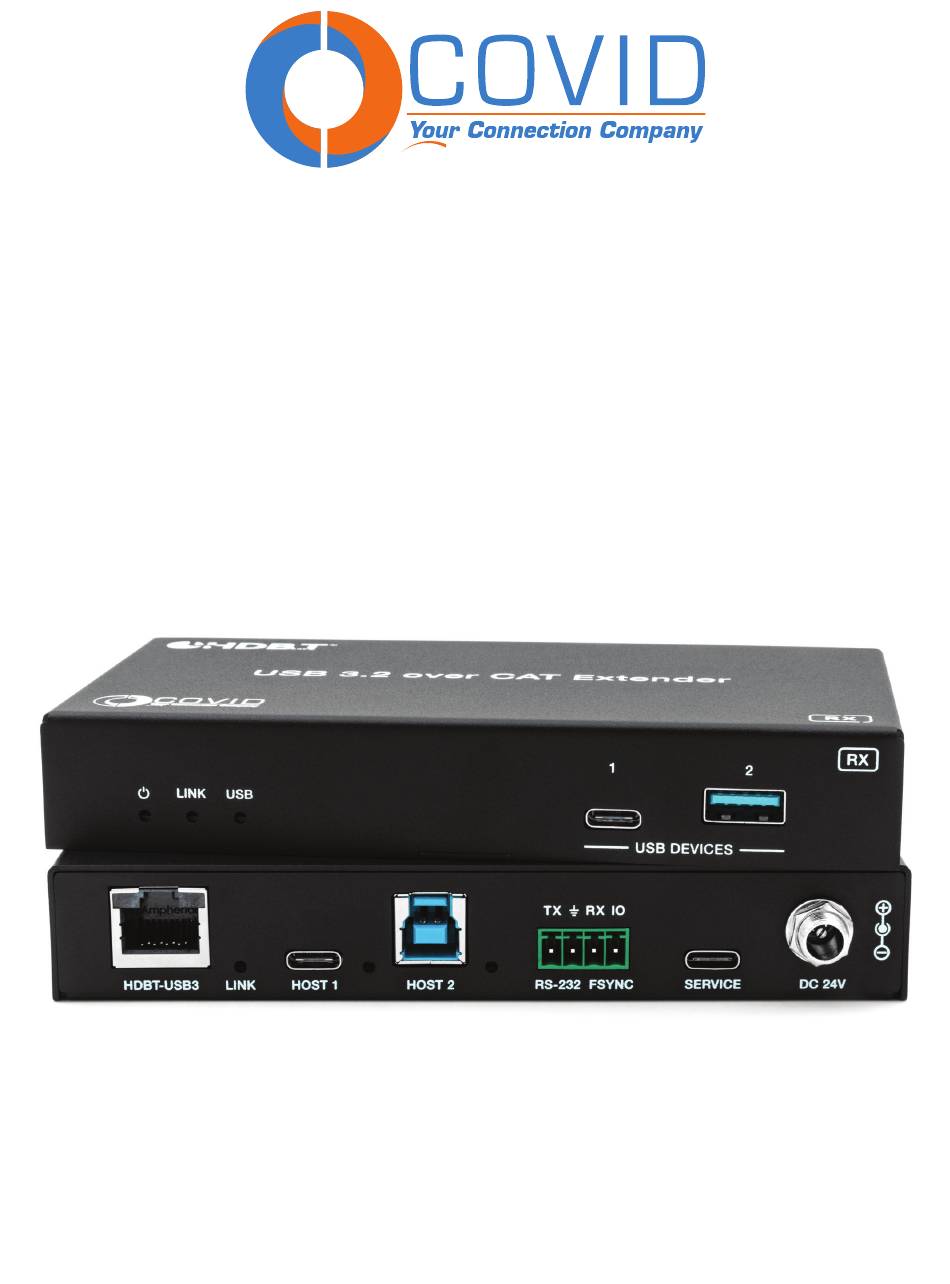

Introduction This USB Extender can extend USB 3.2 Gen 1 5Gbps signal to a distance up to 100m/328ft via a single CAT6a cable. The transmitter features one USB-C and one USB-B selectable input ports. The receiver features one USB-C and three USB-A device ports. -
Page 4: Package Contents
3. Package Contents ֍ Transmitter (1 piece) ֍ Receiver (1 piece) ֍ 24V/3.75A Power Supply (1 piece) ֍ 4pin-3.5mm Male Phoenix Connector (2 piece) ֍ Mounting Ear (4 piece) ֍ KM3*4 Machine Screw (8 piece) ֍ User Manual (1 piece) 4. Specifications... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel... -
Page 6: Receiver Panel
5. Operation Controls and Functions 5.2 Receiver Panel... -
Page 7: Api Commands
6. API Commands The product supports API commands control. Connect the SERVICE or RS-232 port of the product to a PC, then open a Serial Command tool on PC to send API commands to control the product. The API commands list is shown below. -
Page 10: Application Example
7. Application Example...
