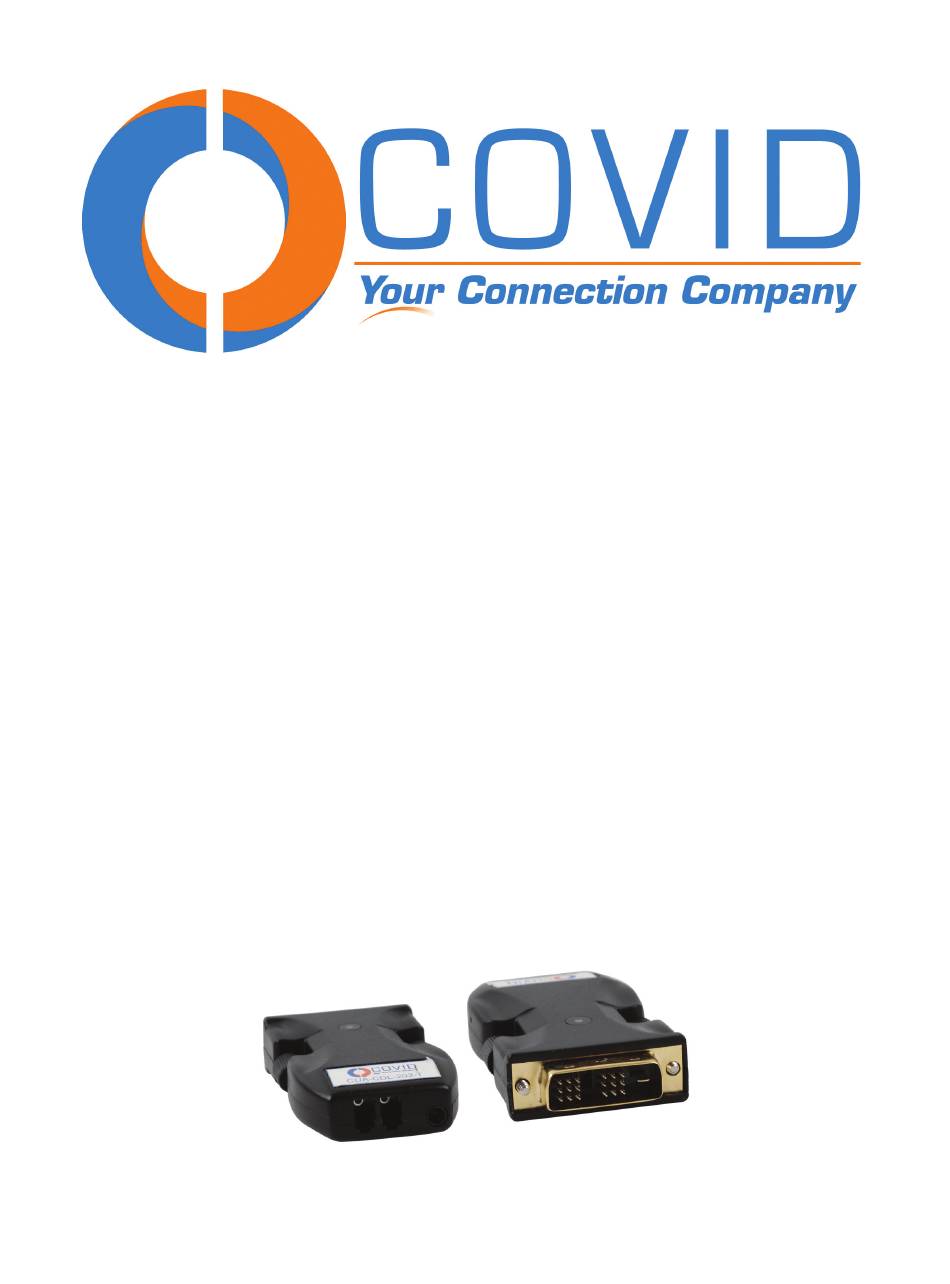

- Page 1 DVI over 2LC fiber extender module EX-DVID-2LC User manual...
- Page 2 Contents 1. Introduction ..........................3 1.1. General Introduction ......................3 1.2. Main Functions ........................4 1.4. Specification .......................... 3 1.5. Power Adapter Specification....................4 1.6. Installation requirement ......................4 1.7. Standard Configuration......................4 1.8. Installation and Operation...................... 5 2. Breakdown and Maintenance....................6 2.1.
- Page 3 Safety Tips For insuring security of users and reliability of the device, please obey the following tips for installation, operations and maintenance. Before powering on the device, please make sure it is properly grounded. This will avoid static electricity or power leakage from the case. This will also help keep users away from electric shock and reduce the possibility of imperiling the device.
- Page 4 1. Introduction 1.1. General Introduction The EX-DVID-2LC optical DVI modular can transfer digital video and Clock signal up to 1500m by 2-core single mode optical fiber and 500m by 2-core multimode optical fiber at 1920*1200@60Hz resolution. The transmitter has the function of EDID self-programming. It can store the EDID from the monitor to make itself adapt to monitors with different resolutions.
- Page 5 If your OS is already installed with a DVI graphics controller, there will no special restrictions. (3) suggestion of AC/DC adapter Transmitter of the EX-DVID-2LC has a power protection circuit, to protect the current conflict between the external DC power adapter and graphics card. You can choose to use the AC/DC power adapter freely, it depends on your graphics card whether you should provide a +5V supply.
- Page 6 Step 1: Respectively connected the power of PC and display. Step 2: Read display’s EDID, please follow below steps First power on display, then connect the EX-DVID-2LC-T DVI interface to the display device. After the connection is completed, connect the power of CDL -202-T to ensure that the red LED power indicator lights up.
- Page 7 Step 6: Power on computer and display the image is displayed normally. Breakdown and Maintenance. 2.1. Trouble Shooting. No image on display (1) Ensure that all external power pin and socket fasten connection. Meanwhile ensure that the red LED lights up. Make sure to follow the installation step 2 to fulfill EDID self-programming.
- Page 8 2.2 Warranty 2.2.1Gurantee Information Covid warrants all devices in good working order for a period of one year from the date of purchase. If this product isn’t in good working order as warranted above, repair or replacement shall be equally provided by Covid.
