- Page 1 USER MANUAL HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104 F: 480.966.6728 E: sales@covid.com www.covid.com...
-
Page 2: Table Of Contents
RS232 Command Table ......................11 EDID Settings ........................12-13 Safety Information ........................14 Warranty ..........................14 Return and RMA Policies ......................14 HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104 F: 480.966.6728 E: sales@covid.com www.covid.com... -
Page 3: Introduction
VGA signal across the HDBase-T link. The S2MBW-120 is able to be remotely controlled thru RS232 commands and/or contact closure to provide for remote control needs. The unit also supports Talley feedback for remote mounting and integration into control panels. -
Page 4: Panel Description

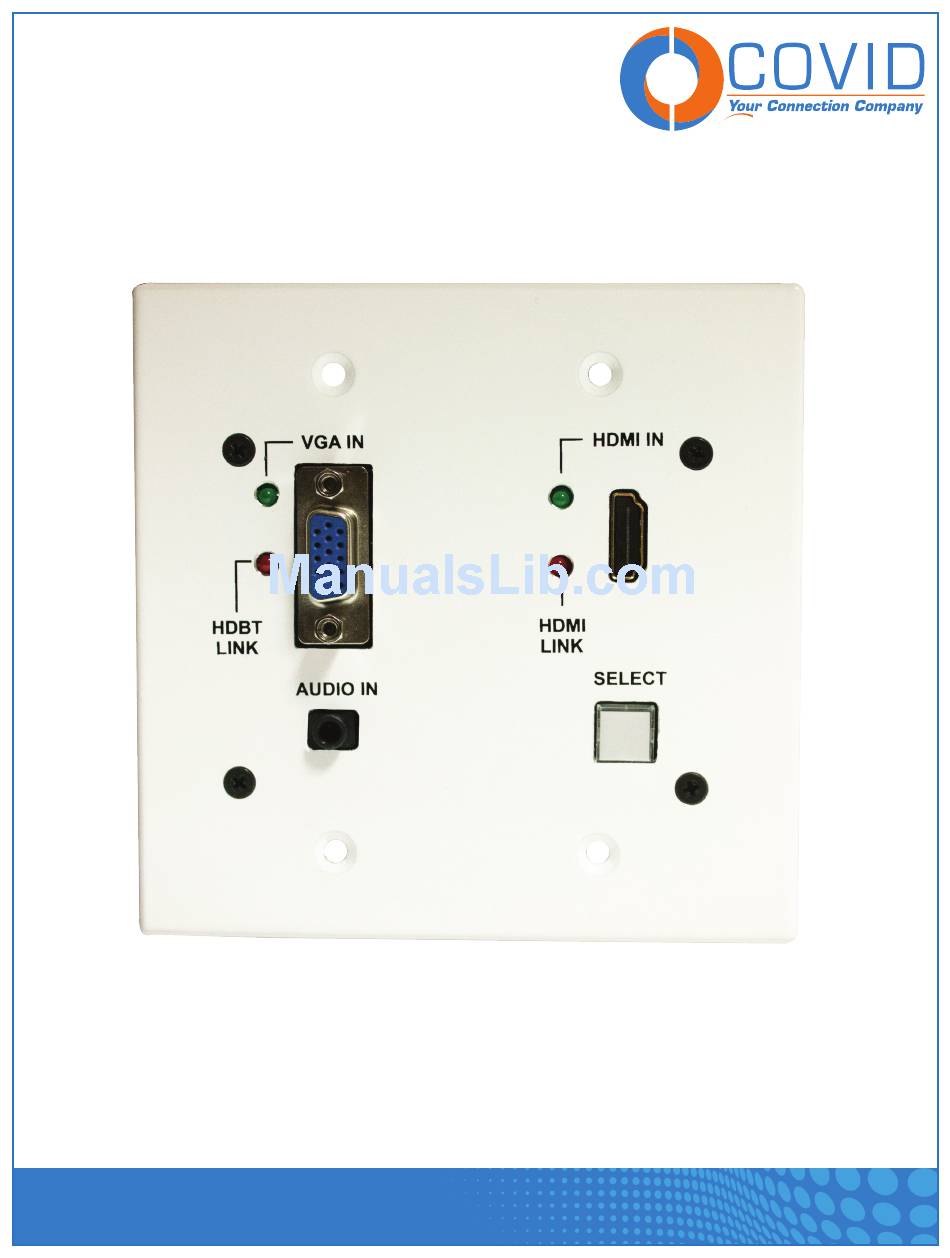

HDMI-Link LED - Light will be solid when a complete HDMI path is present from source to display 3. VGA Signal input interface - Input for VGA sources HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104... - Page 5 7. Switching Contacts - Signal switching contact and status LED contacts 8. 7PIN header - Used for system updates 9. Power selection pin headers - Sets the way the S2MBW-120 handles remote power 10. Power interface - DC/24V input voltage range DC20-28V 11.
-
Page 6: Connection And Installation
24V 1A DC Environmental Operation 32~131°F [0~55°C] Temperature Storage -4~185°F [-20~85°C] Temperature Relative Humidity 5~95% RH [no condensation] HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104 F: 480.966.6728 E: sales@covid.com www.covid.com Page 5... -
Page 7: Configuration Control Software
RS232 command line and response prompt Controls to change RS232 settings of the S2MBW-120 Communication settings to connect to a S2MBW-120 Firmware, EDID, and Factory reset controls. HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104... -
Page 8: Switching Modes
RS-232 command string. 1. Manual Mode: In this mode the S2MBW-120 will not auto-switch at all. Even if the currently active input is disconnected, the S2MBW-120 will not switch. The only way to initiate a switch is by using the button on the front interface, RS232 commands, or by Contact closure button. -
Page 9: Select Button Functions
By pressing or holding the select button or changing the mode of operation, users can implement different functions. These different functions are outlined in the table below: HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104... -
Page 10: Power Options
HDBaseT link, you will need to select whether you are sending POC, POH, or local powering method. By default, the unit is set to the POC jumper positions. HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104... -
Page 11: Closed Contact & Talley Diagram
: Ground line V : VGA Input LV: LED indicator for VGA H: HDMI Input LH: LED indicator for HDMI HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104 F: 480.966.6728 E: sales@covid.com www.covid.com... -
Page 12: Rs232 Command Table
USER MANUAL RS232 Command Table HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104 F: 480.966.6728 E: sales@covid.com www.covid.com Page 11... -
Page 13: Edid Settings
EDID Settings and Functions The typical user will not have to do anything with the EDID settings in the S2MBW-120 if it’s working out of the box. The internal and external EDID is an option for the user to consider in case there are some needs to solve an incompatibility issue in the system. - Page 14 Holding the front panel button, sending the reset command, or using the “Restore” button within the configu- ration software will all Reset the S2MBW-120 to the original factory settings. After performing a reset, the unit must be power-cycled so that all of the changes take effect.
-
Page 15: Safety Information
Customer must cover round trip shipment expenses. Return and RMA Policies Shipments will not be receiver and processed for warranty repair/replacement without an RMA (Return Materials Authorization). HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120 1723 W. 4th Street Tempe Arizona 85281 P: 800.638.6104 F: 480.966.6728 E: sales@covid.com...
