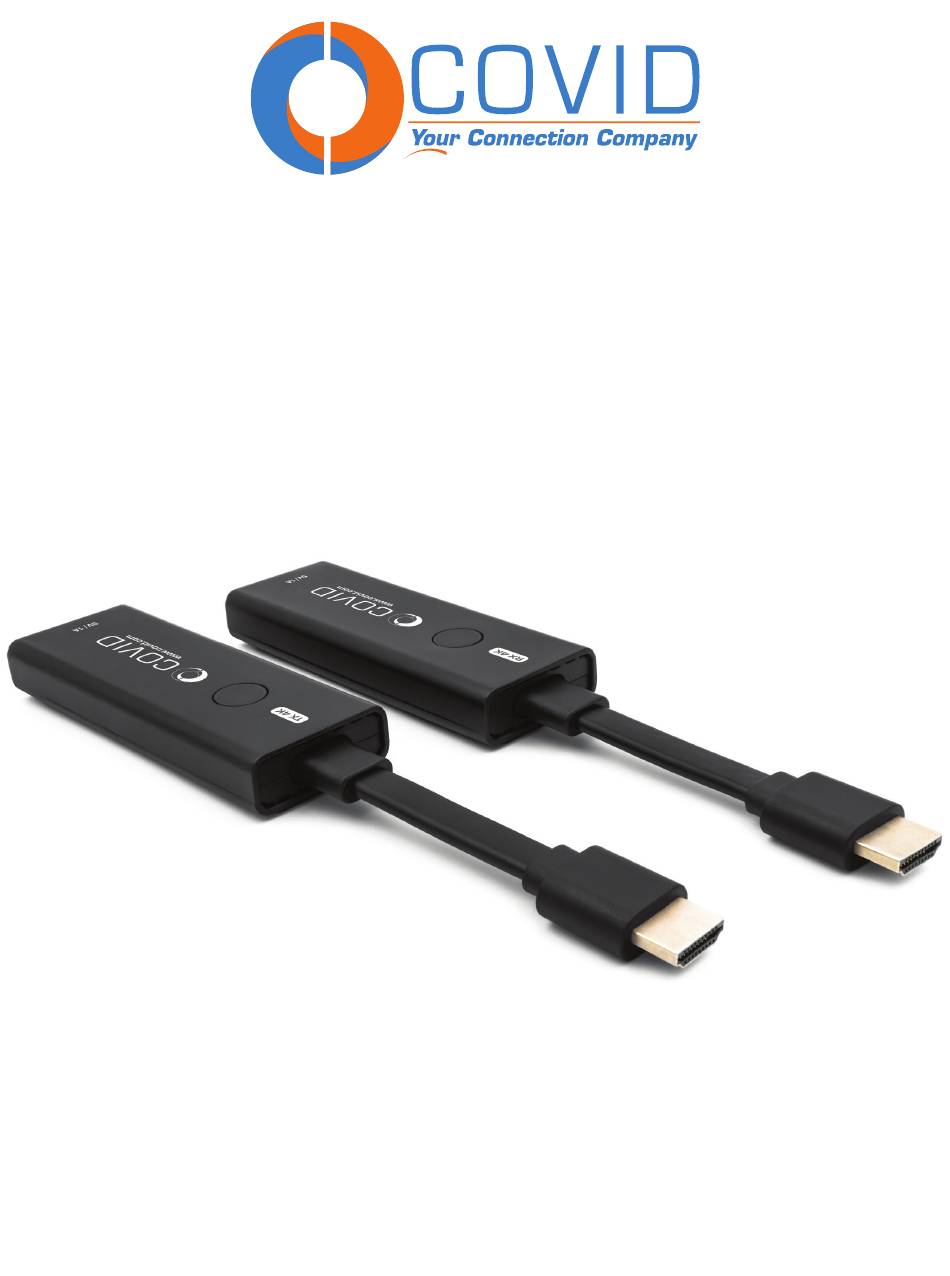

- Page 1 EZ Wireless 4K HDMI Extenders ECW-200 & EHW-200 User Manual Version 1.0...
-
Page 2: Table Of Contents
Thank You for Purchasing This Product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge Protection Device Recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
Introduction Transmit video signals wirelessly to TVs or monitors from a variety of sources. Compatible with any HDMI or USB-C equipped device. These devices transmit video signals by creating their own wifi signal, negating the need to connect to an established network. There are also no drivers or extra software to install, simply plug and play. This pocket sized transmitter and receiver kit is portable and lightweight, making it easy to transmit and cast your screen on the go. -
Page 4: Features
2. Features ֍ True 4K wireless transmission ֍ Watch everything on a bigger screen ֍ Plug and play operation, with no extra software or driver installations ֍ Impressive OS and port compatibility ֍ Excellent dynamic and static video quality ֍ Supports up to eight transmitters to one receiver ֍ Transmission distances up to 50 meters (with clear line of sight) ֍ Auto pair and connection & auto channel selection 3. Specifications Video Input.......................Up to 4K 30Hz Video Output......................Up to 4K 60Hz Audio........................Stereo 16bit 48KHz Wireless Channel..................IEEE 802.11ac, 5GHz Antenna............................2T2R Latency..........................~ 90-120ms HDMI Version........................HDMI 2.0 USB and DisplayPort Version........USB Type-C 3.2 Gen 2 & DP 1.4a HDCP Version........................HDCP 2.2 Authentication Protocol........WPA2 (WPA-PSK / WPA2-Enterprise) Security..........................AES 128bit Platforms Supported...............Any device with HDMI input Transmission Distance........Up to 50 meters (with clear line of sight) Power Consumption......................~ 5W Weight..............................58g... -
Page 5: Package Contents
4. Package Contents Before using this unit, please check the packaging and make sure the following items are contained in the shipping carton: ֍ Transmitter........................(1 piece) ֍ Receiver..........................(1 piece) ֍ USB-C to USB-A Cable..........(1-2 pieces depending on model) ֍ USB Y Cable........................(1 piece) ֍ User Manual........................(1 piece) 5. Device Layout Transmitters - Easily mirror whatever shows on your laptop or mobile screen. HDMI Version HDMI... -
Page 6: Led Meanings
6. LED Meanings... -
Page 7: Operation Instructions
7. Operation Instructions 1. Install the Receiver First, connect the Receiver to the HDMI port on the TV or monitor, and then connect power to the USB-C port with the included USB power cable by either a USB-A port on the display or a 5V / 1A wall adapter. Power Option 2 Wall Adapter HDMI Adapter Sold Seperately... -
Page 8: Pairing A New Extra Transmitter
8. Pairing a New Extra Transmitter You can purchase additional stand-alone transmitters ECW-200-TX (USB-C) or EHW-200-TX (HDMI), and pair them with your receiver. The maximum amount of transmitters that can pair with one receiver is eight. To pair, simply follow the same instructions in section 7, steps 2 and 3 for each additional transmitter. To switch between which transmitter is currently active, press the button on the transmitter connected to the device you wish to send video from to the display. -
Page 9: Adding A Custom Background Image
10. Adding a Custom Background Image When the devices are idle and not streaming, an image will be displayed on screen. The stock image is an installation guide, but this image can be changed to anything you want it to be which can be useful in many scernarios. To do so, you will need your Receiver, a USB fl... -
Page 10: Fcc Warning
11. FCC Warning Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
