Deca SINGLE BASIC Instruction Manual page 27

55mm
Contour line
5mm
Contour line

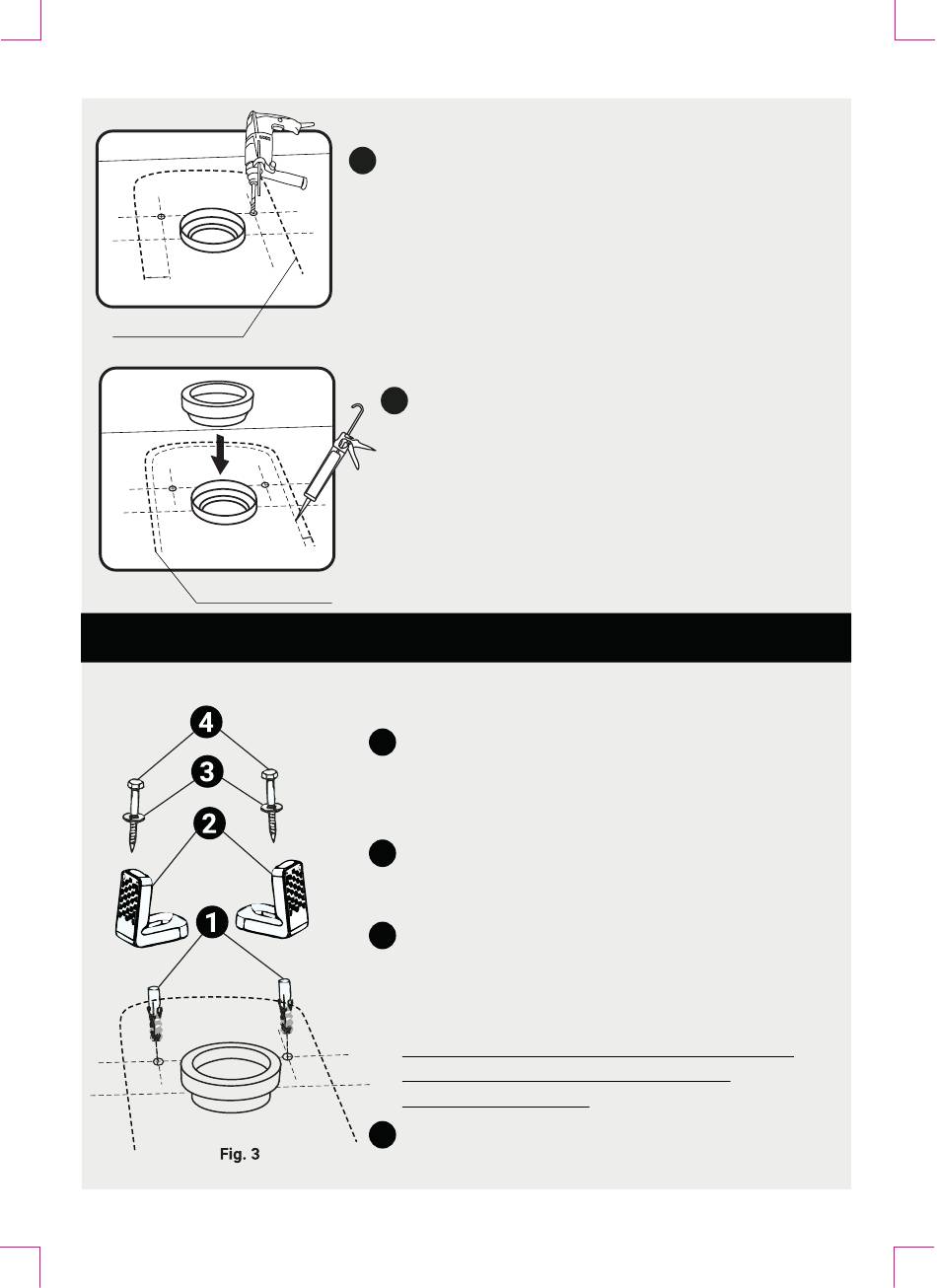

ORDER OF INSTALLATION OF FASTENING ELEMENTS
6 Starting from the contour line, draw on the
inside two parallel lines on each side of the
bowl at a distance of 55 mm.
Mark the holes at the intersections of the
fastening lines and drill with a Ø 10mm drill.
Apply a thin bead of silicone along the
7
entire length at a distance of 5 mm from
the contour line of the bowl.
Then remove the protection from the
Decanel (No. 9) and place it on the
sewer trap tube.
TO FASTEN THE BOWL, USE THE FASTENING KIT -
ITEM 13 (INCLUDED WITH THE PRODUCT).
8
Position the L supports (item 2) and secure them to
the floor using washers, bushes and screws (items 3,
1 and 4). Adjust the supports so that they fit snugly
against the inside of the bowl base.
9
Fit the ware on the floor so that the holes on the sides
are in line with the support and press it down (do this
with the help of another person) (Fig. 4).
10
When the bowl is in place, secure it with the side fixing
screw and the plastic bushing (items 6 and 5) and
place the finishing (item 7) (Fig. 4). Remove any
excess silicone from around the bowl.
TO BETTER SECURE THE BOWL TO THE FLOOR,
TIGHTEN THE SCREW (ITEM 6) FACING
DOWNWARDS (FIG. 4).(Next page)
11
Before you consider the installation complete,
check for leaks.
7
