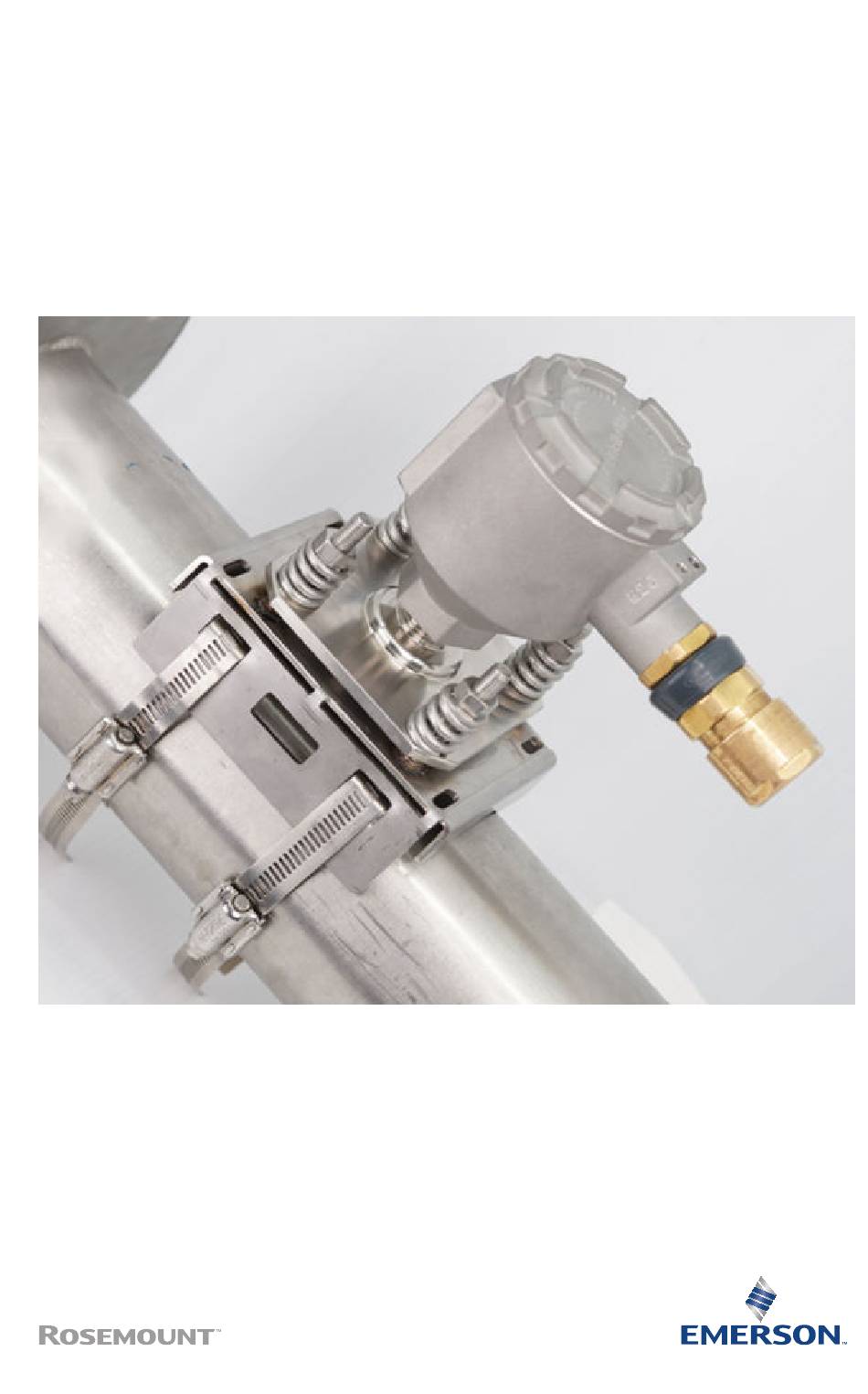

Acoustic pig detector non-intrusive pig detection
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
MS-00825-0200-3636, Rev AA
March 2025
Rosemount
™
PDS42 Acoustic Pig
Detector
Non-intrusive Pig Detection
